Schematic diagram
Polaris•Schematic assembly

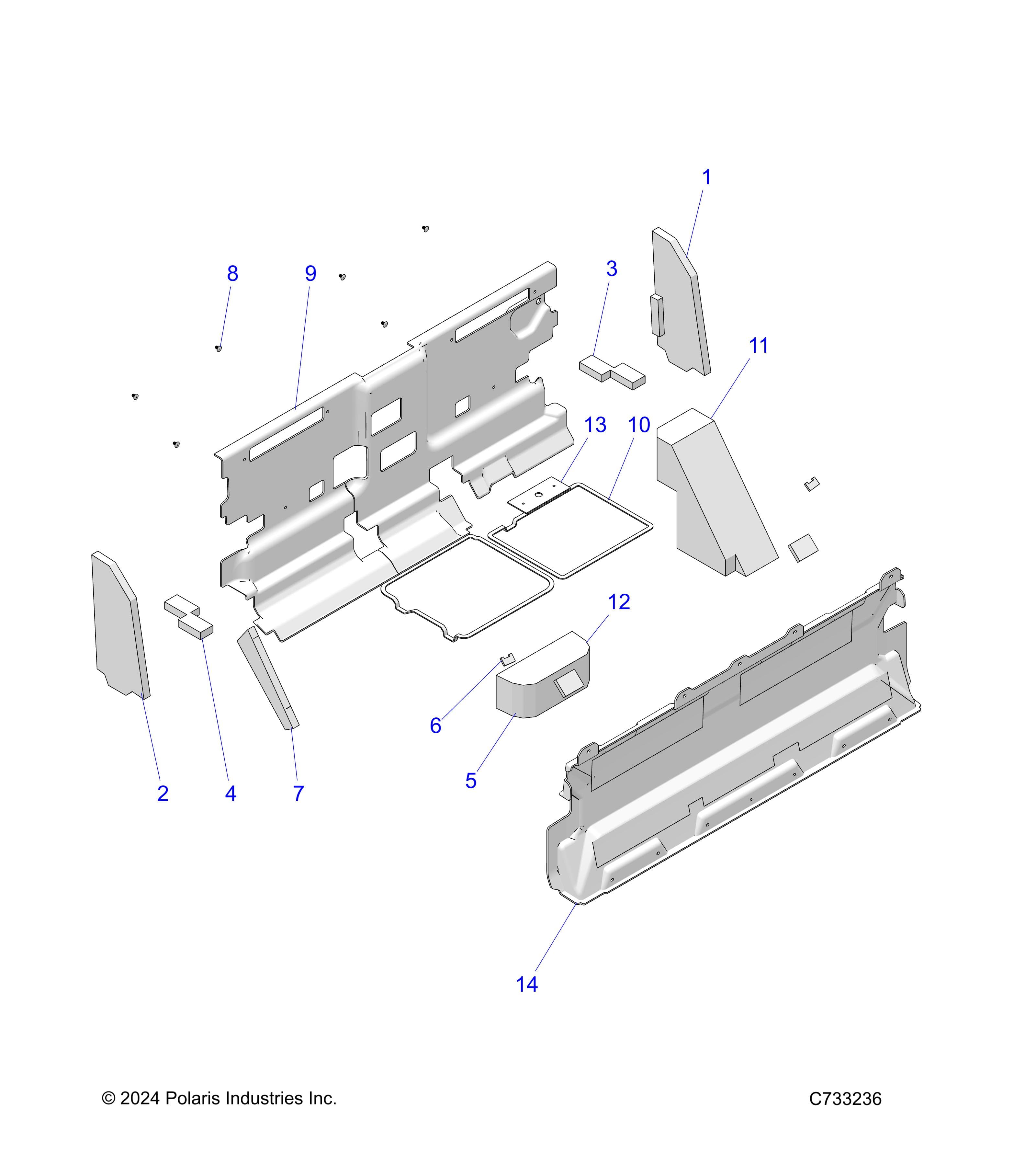

BODY, CAB FOAM & REAR PANEL - R26RSU99A9/B9/AF/BF/AH/BH/AS/BS/AB/BB (C733236)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR PREMIUM Assembly ID: 247745
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR PREMIUM
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5814665 | FOAM-B PILLAR,COVER,LH [TO 05/01/2026] | 1 | $44.99 | In stock | |
| 1 | 5816091 | FOAM-FENDER,UPPER,LH [FROM 05/01/2026] | 1 | $33.99 | Out of stock | |
| 2 | 5814666 | FOAM-B PILLAR,COVER,RH [TO 05/01/2026] | 1 | $44.99 | In stock | |
| 2 | 5816092 | FOAM-FENDER,UPPER,RH [FROM 05/01/2026] | 1 | $33.99 | Out of stock | |
| 3 | 5814667 | FOAM-B PILLAR,LOWER,LH | 1 | $6.99 | In stock | |
| 4 | 5814668 | FOAM-B PILLAR,LOWER,RH | 1 | $6.99 | In stock | |
| 5 | 5814669 | FOAM-CLOSEOFF,FRONT,BOTTOM | 2 | $4.99 | In stock | |
| 6 | 5814670 | FOAM-CLOSEOFF,FRONT,TOP | 2 | $2.99 | In stock | |
| 7 | 5814671 | FOAM-SEAT PIVOT,RH | 1 | $8.99 | In stock | |
| 8 | 7670088 | CLIP-PLASTIC DART, NYLON | 6 | $1.99 | In stock | |
| 9 | 5815828 | PANEL-REAR,INNER,RGR | 1 | $344.99 | In stock | |
| 10 | 5815101 | FOAM-STRIP | 10 | Price TBD | Out of stock | |
| 11 | 5815102 | FOAM-BLOCK,GAS TANK [NON EVAP UNITS ONLY] | 1 | $44.99 | In stock | |
| 12 | 5815104 | FOAM-BLOCK,CENTER,CONSOLE | 1 | $29.99 | In stock | |
| 13 | 5815309 | FOAM-SEAL,REAR SEAT | 1 | $3.99 | In stock | |
| 14 | 5815834 | PET-FRONT ROW,BACK PANEL | 1 | $159.99 | In stock |
