Schematic diagram
Polaris•Schematic assembly

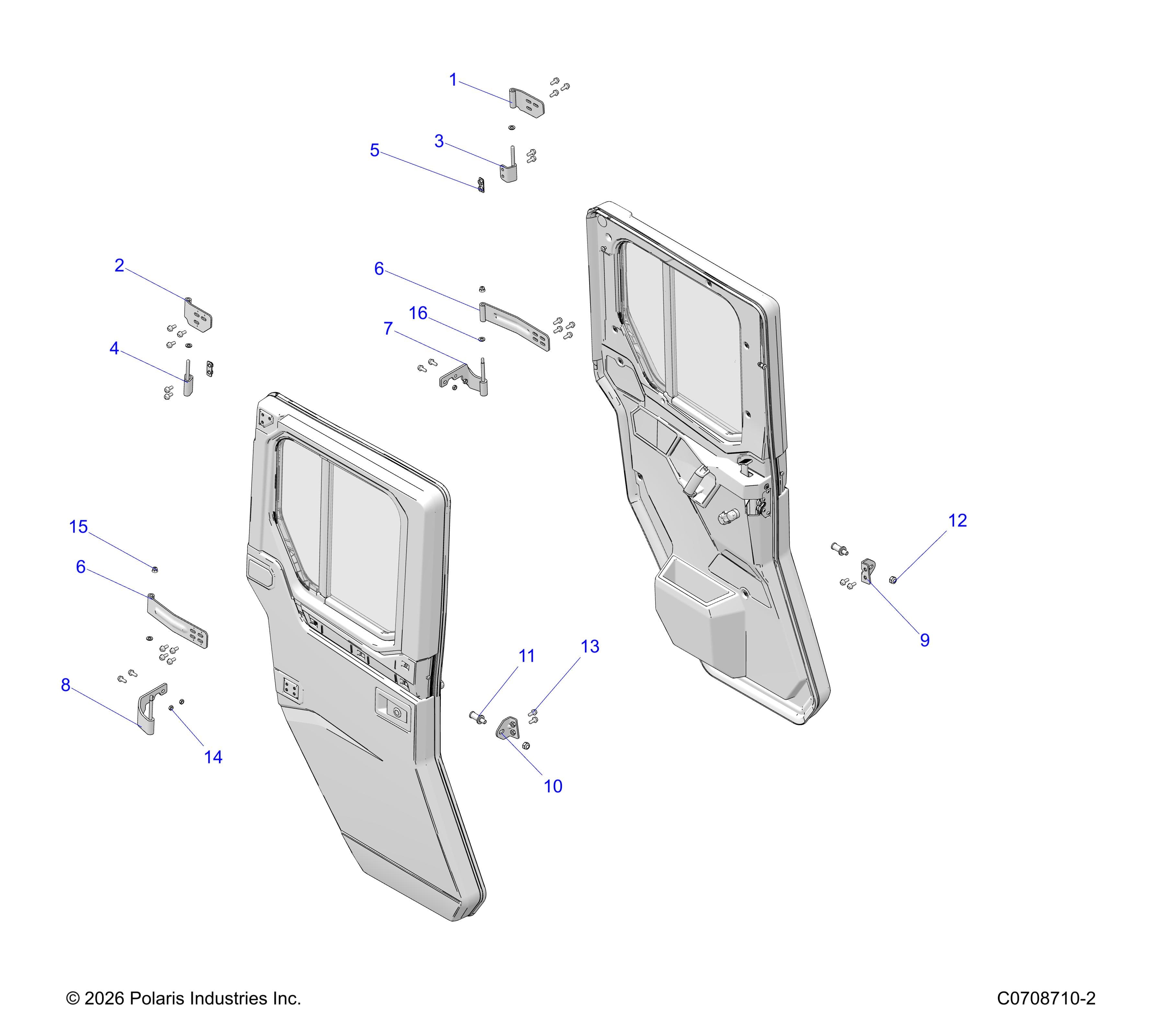

BODY, DOOR, REAR MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR PREMIUM Assembly ID: 247760
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR PREMIUM
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2207709 | K-HRDWR SVC HINGE CAB ZS [INCLUDES 5,7,8,13,15 & 16] | 1 | $119.99 | Out of stock Est. Aug 10, 2026 | |
| - | 2213208 | K-HINGE ASM,UPR,LH [INCLUDES 3,5,13 &16] | 1 | $69.99 | Out of stock | |
| - | 2213209 | K-HINGE ASM,UPR,RH [INCLUDES 4,5,13 &16] | 1 | $69.99 | Out of stock | |
| 1 | ------- | BRKT-HINGE,DOOR UPPER,LH.BLK | 1 | Price TBD | Out of stock | |
| 2 | ------- | BRKT-HINGE,DOOR UPPER,RH,BLK | 1 | Price TBD | Out of stock | |
| 3 | 1031955-458 | WELD-HINGE,UPPER,LH,BLK | 1 | Price TBD | Out of stock | |
| 4 | 1031956-458 | WELD-HINGE,UPPER,RH,BLK | 1 | Price TBD | Out of stock | |
| 5 | 5256140-458 | PLATE-HINGE,BLK | 1 | $16.99 | In stock | |
| 6 | 5263991-458 | BRKT-HINGE,DOOR LWR,BLK | 1 | $34.99 | In stock | |
| 7 | ------- | WELD-HINGE,LOWER,LH,BLK | 1 | Price TBD | Out of stock | |
| 8 | ------- | WELD-HINGE,LOWER,RH,BLK | 1 | Price TBD | Out of stock | |
| 9 | 5265564-458 | BRKT-STRIKER,LH,BLK [TO 01/26/2026] | 1 | Price TBD | Out of stock | |
| 9 | 5276371-458 | BRKT-STRIKER,LH,BLK [FROM 01/26/2026] | 1 | Price TBD | Out of stock | |
| 10 | 5265565-458 | BRKT-STRIKER,RH,BLK [TO 01/26/2026] | 1 | Price TBD | Out of stock | |
| 10 | 5276372-458 | BRKT-STRIKER,RH,BLK [FROM 01/26/2026] | 1 | Price TBD | Out of stock | |
| 11 | 7519358 | PIN-STRIKER | 2 | $44.99 | In stock | |
| 12 | 7540000 | NUT-NYLOCK, M12X1.75, 0600110 | 2 | $4.99 | In stock | |
| 13 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 0 | $3.99 | In stock | |
| 14 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 4 | $2.99 | In stock | |
| 15 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | $2.99 | In stock | |
| 16 | 5439712 | WASHER-10.25X19.0X2.0,NYLON | 5 | $1.99 | In stock |
