Schematic diagram
Polaris•Schematic assembly

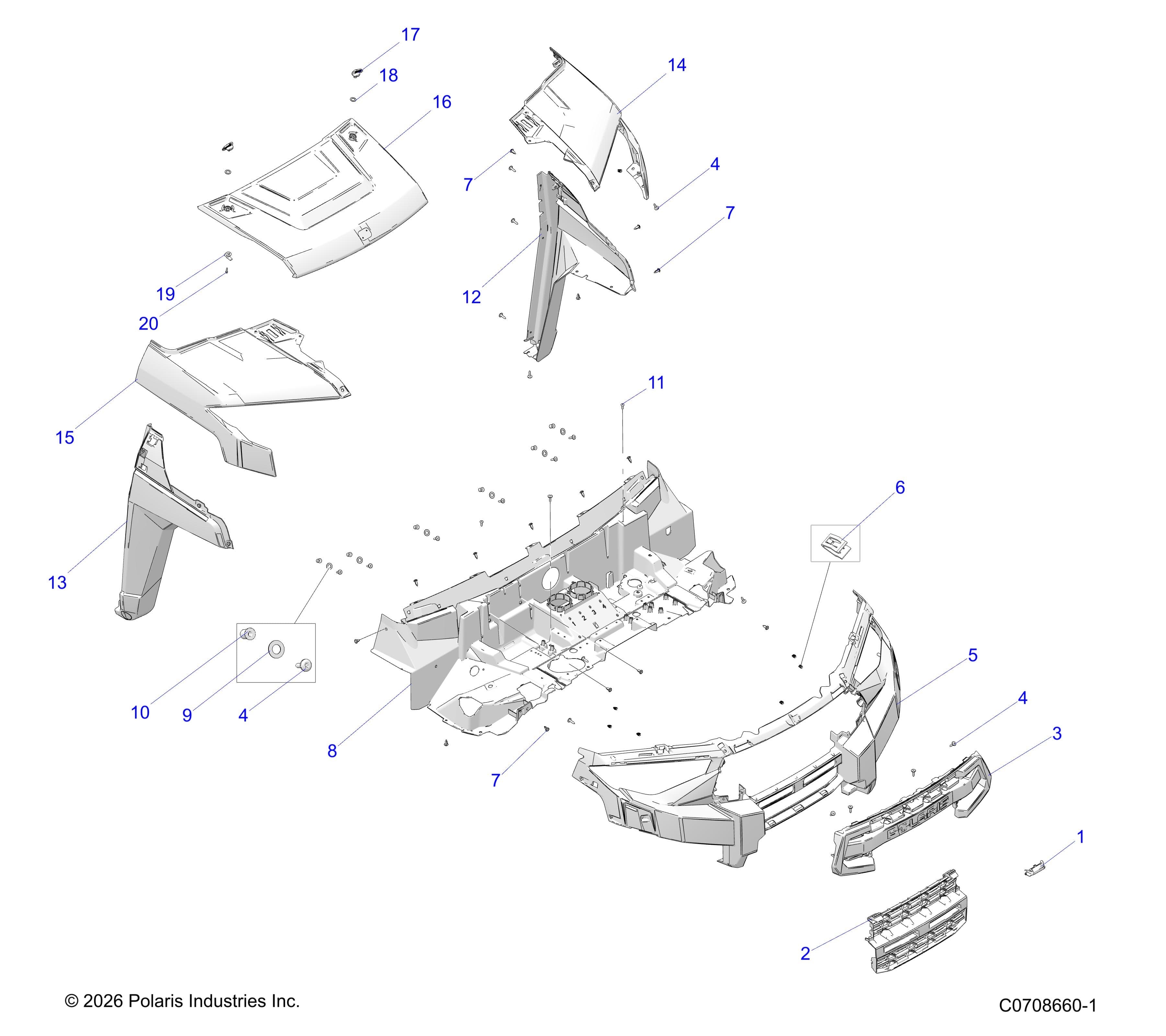

BODY, HOOD & FRONT FASCIA
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR PREMIUM Assembly ID: 247762
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR PREMIUM
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5459845-070 | PLUG-CAMERA,BLK | 1 | $6.99 | In stock | |
| 2 | 5458623-070 | GRILL-LOWER,BLK | 1 | $94.99 | In stock | |
| 3 | 5458622-070 | GRILL-UPPER,BLK | 1 | $59.99 | In stock | |
| 4 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 0 | $4.99 | In stock | |
| 5 | 5458621-070 | FASCIA-UPPER,BLK | 1 | $214.99 | In stock | |
| 6 | 5456313 | CLIP-TRIM, PLASTIC, WHITE | 10 | $1.99 | In stock | |
| 7 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 0 | $1.49 | In stock | |
| 8 | 5465105-070 | LINER-UNDER HOOD,BLK | 1 | $209.99 | In stock | |
| 9 | 7556376 | WASHER-.937X.501X.031,OLIVE D | 6 | $3.99 | In stock | |
| 10 | 7547772 | WELLNUT-M6X1.0 | 6 | $8.99 | In stock | |
| 11 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 8 | $3.99 | In stock | |
| 12 | 5464981-070 | FENDER-FLARE,FRONT,LH,BLK | 1 | $104.99 | In stock | |
| 13 | 5464982-070 | FENDER-FLARE,FRONT,RH,BLK | 1 | $104.99 | In stock | |
| 14 | 5464987-587 | FENDER-FRONT,RH,LE,PPC [POLARIS PURSUIT CAMO] | 1 | $589.99 | In stock | |
| 14 | 5464987-750 | FENDER-FRT,RH,LE,ORANGERUST [ORANGE RUST] | 1 | $589.99 | Out of stock Est. Aug 21, 2026 | |
| 14 | 5464987-804 | FENDER-FRONT,RH,LE,STEALTH GY [STEALTH GRAY] | 1 | $589.99 | In stock | |
| 14 | 5464987-520 | FENDER-FRONT,RH,LE,SUNSETRED [SUNSET RED] | 1 | $589.99 | In stock | |
| 14 | 5464987-981 | FENDER-FRT,RH,LE,BL.LABYRINTH [BLUE LABYRINTH] | 1 | $589.99 | In stock | |
| 15 | 5464986-587 | FENDER-FRONT,LH,LE,PPC [POLARIS PURSUIT CAMO] | 1 | $589.99 | In stock | |
| 15 | 5464986-750 | FENDER-FRT,LH,LE,ORANGERUST [ORANGE RUST] | 1 | $589.99 | In stock | |
| 15 | 5464986-804 | FENDER-FRONT,LH,LE,STEALTH GY [STEALTH GRAY] | 1 | $589.99 | In stock | |
| 15 | 5464986-520 | FENDER-FRT,LH,LE,SUNSETRED [SUNSET RED] | 1 | $589.99 | In stock | |
| 15 | 5464986-981 | FENDER-FRT,LH,LE,BL.LABYRINTH [BLUE LABYRINTH] | 1 | $589.99 | In stock | |
| 16 | 5464988-587 | HOOD-CENTER,PPC [POLARIS PURSUIT CAMO] | 1 | $519.99 | In stock | |
| 16 | 5464988-750 | HOOD-CENTER,LE,ORANGERUST [ORANGE RUST] | 1 | $519.99 | In stock | |
| 16 | 5464988-804 | HOOD-CENTER,LE,STEALTH GY [STEALTH GRAY] | 1 | $519.99 | In stock | |
| 16 | 5464988-520 | HOOD-CENTER,LE,SUNSETRED [SUNSET RED] | 1 | $519.99 | In stock | |
| 16 | 5464988-981 | HOOD-CENTER,LE,BL.LABYRINTH [BLUE LABYRINTH] | 1 | $519.99 | In stock | |
| 17 | 5465669 | LATCH-1/4 TURN,UPPER | 2 | $24.99 | Out of stock Est. Sep 17, 2026 | |
| 18 | 7555919 | WASHER-.510X.840X.031 Y | 2 | $4.99 | In stock | |
| 19 | 5465490 | LATCH-1/4 TURN,LOWER | 2 | $2.99 | Out of stock Est. Sep 3, 2026 | |
| 20 | 7520960 | SCREW-SWPH-#8X19,MAGNI,BOSSCREW | 2 | $4.99 | In stock |
