Polaris•Schematic assembly

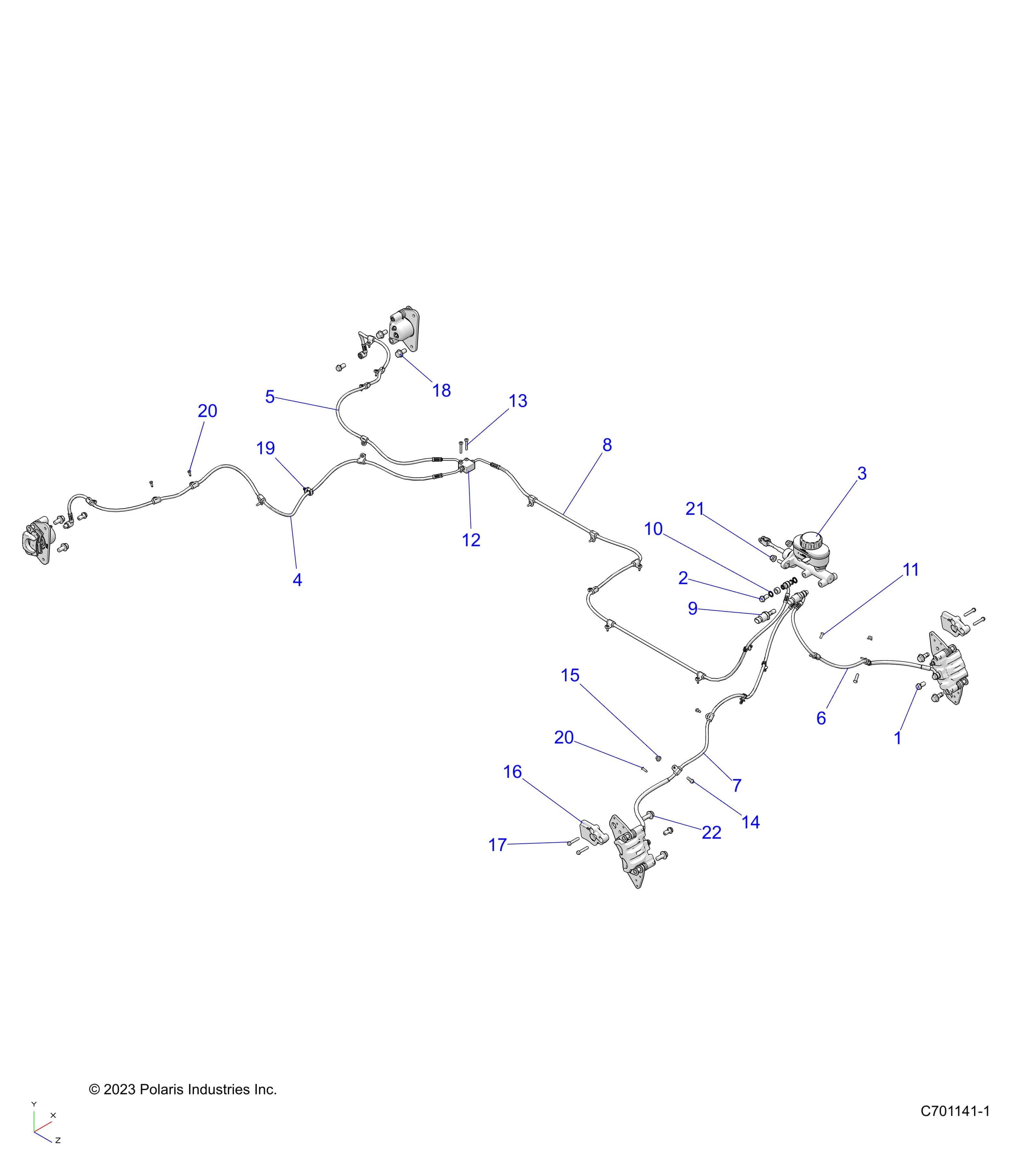

BRAKES, LINES & MASTER CYLINDER - R26RSU99A9/B9/AF/BF/AH/BH/AS/BS/AB/BB (C701141-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR PREMIUM Assembly ID: 247786
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR PREMIUM
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 4 | $6.99 | In stock | |
| 2 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | $9.99 | In stock | |
| 3 | 1912822 | ASM-M/C-T-FLANGE,3/4 BORE | 1 | $174.99 | In stock | |
| 4 | 1913101 | LINE-BRK,RR,60,45F,90SB,120JF | 1 | $109.99 | In stock | |
| 5 | 1912823 | LINE-BRK,RL,41.1,45F,90SB,290J | 1 | $99.99 | In stock | |
| 6 | 1913942 | LINE-BRAKE,FL | 1 | $84.99 | In stock | |
| 7 | 1913943 | LINE-BRAKE,FR | 1 | $79.99 | In stock | |
| 8 | 1913877 | LINE-BRK,MCT,CREW | 1 | $154.99 | In stock | |
| 9 | 4081117 | SWITCH-BRK,M10X1.25,DBL [TO 11/05/2025] | 1 | Price TBD | Out of stock | |
| 9 | 4081264 | SWITCH-BRK,M10X1.25,DBL-BANJO [FROM 11/05/2025] | 1 | $104.99 | In stock | |
| 10 | 5413212 | SEAL-STAT-0-3/8, 70EP | 13 | $5.99 | In stock | |
| 11 | 7512024 | SCR-#10-24X1/2PH/TORX-TRIRD-Y | 7 | $5.99 | In stock | |
| 12 | 7052293 | FITTING-TEE,BRAKE | 1 | $74.99 | In stock | |
| 13 | 7512025 | SCR-10-24X1.25TFM PN TRX TRI-Y | 2 | $5.99 | In stock | |
| 14 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | $3.99 | In stock | |
| 15 | 7547453 | NUT-HXFL-M6X1.0 8 ZB3 NYL | 2 | $4.99 | In stock | |
| 16 | 5634051 | SCRAPER, BRAKE, FRONT | 2 | $17.99 | In stock | |
| 17 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 4 | $5.99 | In stock | |
| 18 | 7518558 | BOLT-M10X1.25X20,HXFLG-OLV D | 4 | $4.99 | In stock | |
| 19 | 7662429 | CLIP-FIR TREE,HEAT-STAB | 13 | $6.99 | In stock | |
| 20 | 7621323 | RIVET-POP 5/32(.251-.375)-ST-B | 20 | $1.49 | In stock | |
| 21 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | $4.99 | In stock | |
| 22 | 7518760 | SCR-HXFL-M10X1.25X25 8.8 Z NY | 4 | $11.99 | In stock |
