DRIVE TRAIN, CLUTCH COVER & DUCTING - R26RSU99A9/B9/AF/BF/AH/BH/AS/BS/AB/BB (C0705347)
Product Description

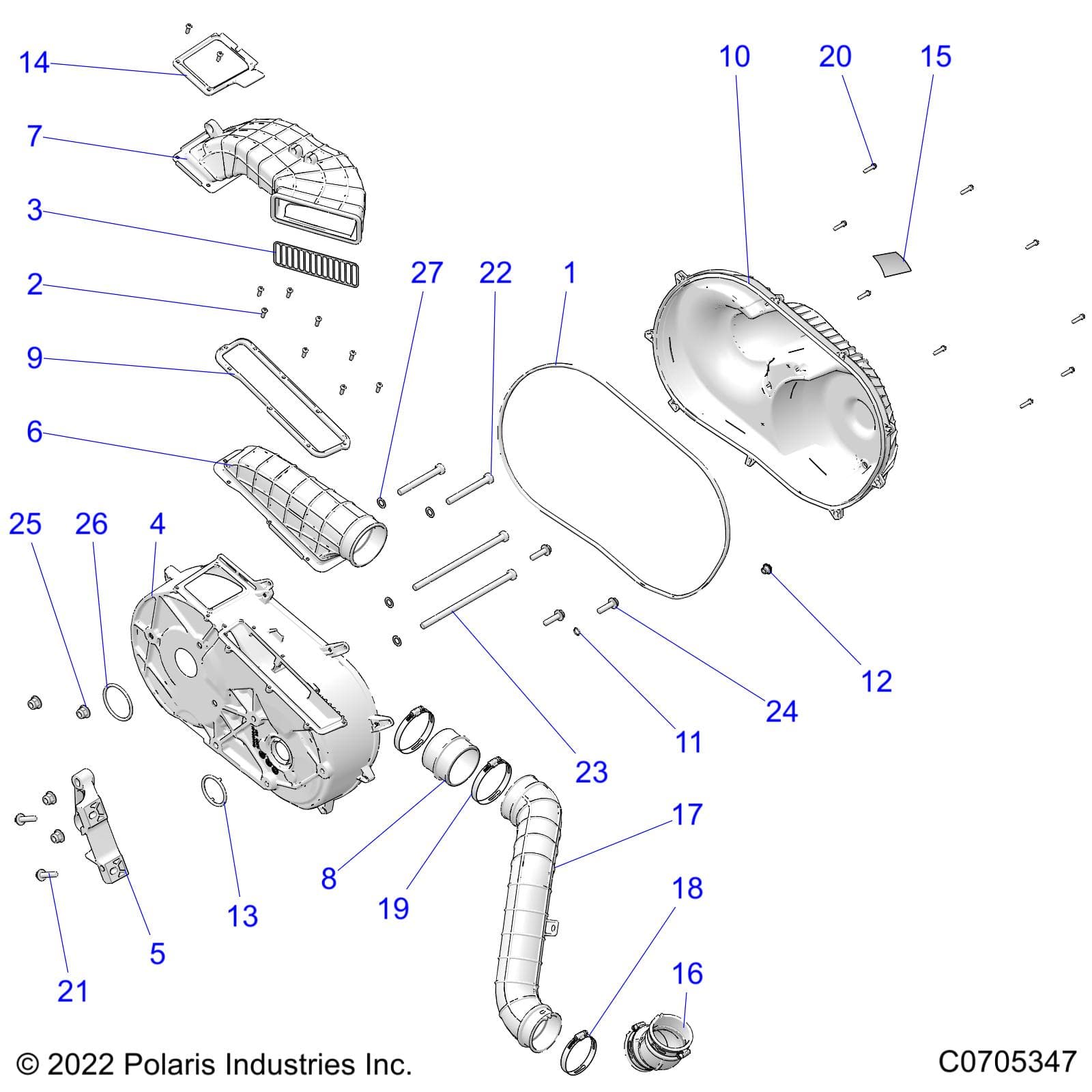

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR PREMIUM Assembly ID: 247793
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR PREMIUM
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5417715 | SEAL-OUTER CLUTCH COVER | 1 | $29.99 | In stock | |
| 2 | 7518616 | BOLT-M6X1.0X20,PH/TX-OLIVE D | 9 | $1.49 | In stock | |
| 3 | 5264258 | BRKT-SCREEN,BELT | 1 | $34.99 | In stock | |
| 4 | 5144005 | COVER-CLUTCH,INNER,MACH | 1 | $239.99 | In stock | |
| 5 | 5144809 | BRKT-TRANSJOINT,MAG,MACH | 1 | $59.99 | In stock | |
| 6 | 5418049 | DUCT-CLUTCH,INLET | 1 | $109.99 | In stock | |
| 7 | 5418050 | DUCT-CLUTCH,OUTLET | 1 | $109.99 | In stock | |
| 8 | 5454194 | BOOT-HOSE ADAPTER | 1 | $29.99 | In stock | |
| 9 | 5634221 | PLATE-INLET CLUTCH DUCT SEAL | 1 | $44.99 | In stock | |
| 10 | 2207560 | K-CVR, CLUTCH, OTR, RGR XP [INCLUDES COVER, 12 & DECAL] | 1 | $264.99 | In stock | |
| 11 | 5416606 | O-RING-0.489X0.629X0.070,EPDM | 1 | $4.49 | In stock | |
| 12 | 5412981 | PLUG-COMPARTMENT | 1 | Price TBD | Out of stock | |
| 13 | 5417662 | O-RING-2.25X2.625X.21,NBR,BARB | 1 | $10.99 | In stock | |
| 14 | 5634514 | MOUNT-OUTLET DUCT | 1 | $34.99 | In stock | |
| 15 | 7177469 | DECAL-BELT,WARNING/CHECK | 1 | Price TBD | Out of stock | |
| 16 | 5416135 | HOSE-JOINT | 1 | $54.99 | In stock | |
| 17 | 5416170 | HOSE-CLUTCH INLET TO TUNNEL | 1 | $74.99 | In stock | |
| 18 | 7082314 | CLAMP-HOSE SLOTTED,75-90 DIA | 3 | $12.99 | In stock | |
| 19 | 7081969 | CLAMP-HOSE SLOTTED,92-100 DIA | 2 | $12.99 | In stock | |
| 20 | 7519754 | SCR-HXFLG,M6X1.0X25,10.9 | 9 | $4.99 | In stock | |
| 21 | 7518531 | SCR-HXFL-M10X1.5X1.5 8.8 ZY3 | 2 | $5.99 | In stock | |
| 22 | 7520945 | SCR-TXBH-M12X1.75X110 8.8 SPC | 2 | $9.99 | In stock | |
| 23 | 7520946 | SCR-TXBH-M12X1.75X245 8.8 SPC | 2 | $16.99 | In stock | |
| 24 | 7521294 | SCR-HHSEMS-M10X1.5X40 10.9 SPC | 3 | $6.99 | In stock | |
| 25 | 7547441 | NUT-HXFL M12X1.75 8 ZOD NYL | 4 | $5.99 | In stock | |
| 26 | 5415647 | O-RING-0.489X0.629X0.070,EPDM | 1 | $1.99 | In stock | |
| 27 | 7555919 | WASHER-.510X.840X.031 Y | 4 | $4.99 | In stock |
