Schematic diagram
Polaris•Schematic assembly

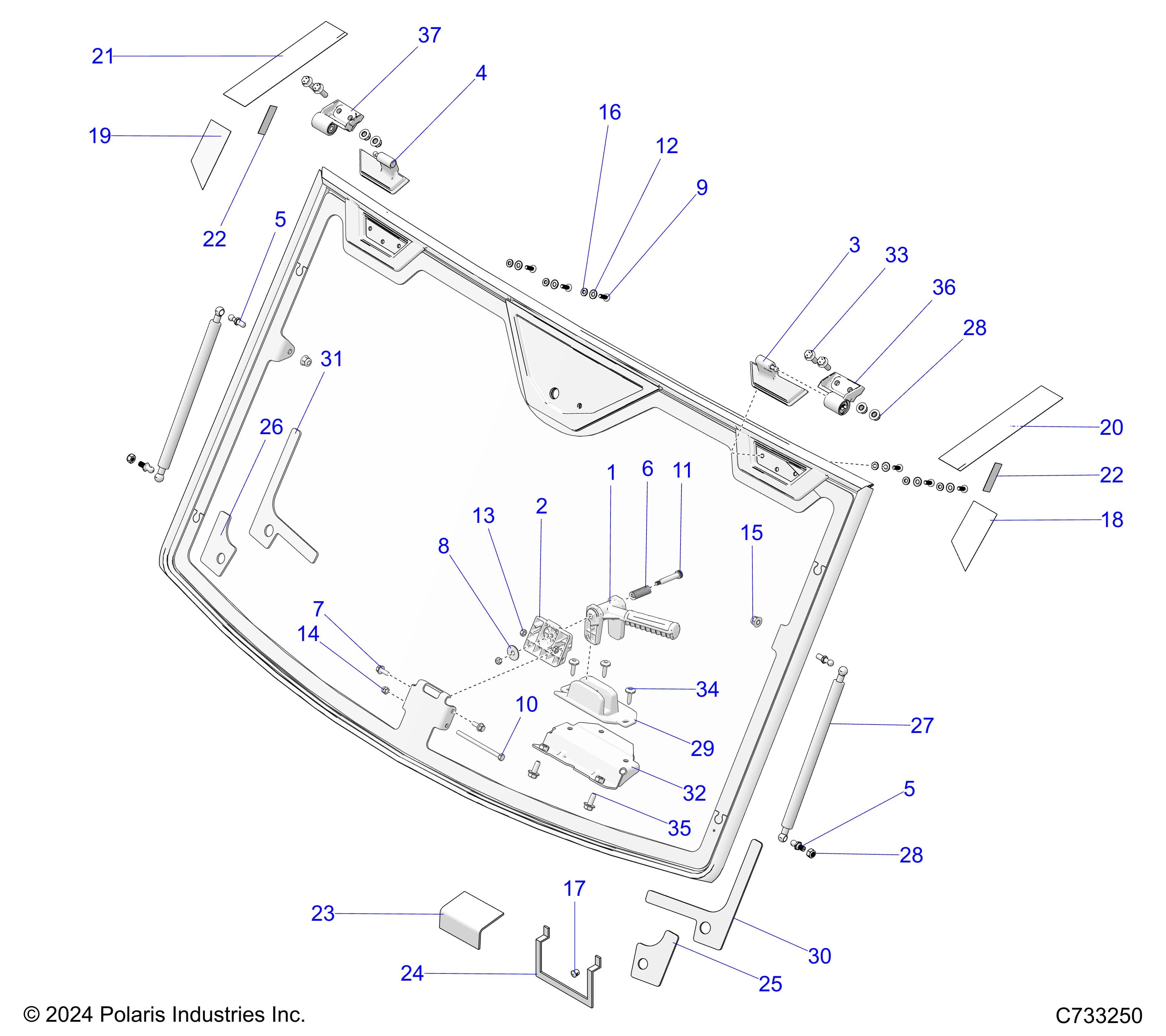

BODY, WINDSHIELD, TIP-OUT & FOAM - R26RSV99AK (C733250)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247877
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2638242 | ASM-WNDSHLD,GL,TO [INCLUDES 1-16] | 1 | $1,449.99 | In stock | |
| - | 2208628 | K-WINDSHIELD SEALN K [INCLUDES 18-22] | 1 | $39.99 | In stock | |
| 1 | 5454735 | HANDLE-WNDSLD,TO,ZS | 1 | $54.99 | In stock | |
| 2 | 5457723 | HANDLE-RECIVER,WNDSLD,TO,TU | 1 | $18.99 | In stock | |
| 3 | 5639137 | CAST-HINGE,LWR,LH | 1 | $104.99 | In stock | |
| 4 | 5639138 | CAST-HINGE,LWR,RH | 1 | $104.99 | In stock | |
| 5 | 7081839 | BALL,END,M8X1.25 | 4 | $29.99 | In stock | |
| 6 | 7082817 | SPRING-HANDLE | 1 | $11.99 | In stock | |
| 7 | 7519236 | SCR-HXFL-M6X1.0X16 8.8 ZYL NYL | 2 | $3.99 | In stock | |
| 8 | 7527934 | WSHR-6.7X25.4X1.0 | 1 | $4.99 | In stock | |
| 9 | 7527936 | SCR-TXTH-M6X1.0X16 SS BO T30 | 6 | $4.99 | In stock | |
| 10 | 7527937 | SCR-HH-M6X1.0X100 8.8 ZTB | 1 | $12.99 | In stock | |
| 11 | 7527938 | SCR-SH-M6X1.0X11-M8X40 BO SPC | 1 | $34.99 | Out of stock | |
| 12 | 7527986 | WSHR-6.45X15.24X2.34 | 6 | $5.99 | In stock | |
| 13 | 7546701 | NUT-M6X1 HX R.HAND-Y | 2 | $4.99 | In stock | |
| 14 | 7546704 | NUT-6 MM X 1.00-NYLOK-SS | 1 | $2.19 | In stock | |
| 15 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | $2.99 | In stock | |
| 16 | 7558759 | WSHR-5.84X12.7X2.36 RUBBER | 6 | $4.99 | In stock | |
| 17 | 7080398 | PLUG-HOLE | 1 | $6.99 | In stock | |
| 18 | 8360200 | TAPE-WINDSHIELD PLATE,ANGLE,LH | 1 | Price TBD | Out of stock | |
| 19 | 8360201 | TAPE-WINDSHIELD PLATE,ANGLE,RH | 1 | Price TBD | Out of stock | |
| 20 | 8360202 | TAPE-WINDSHIELD PLATE,TOP,LH | 1 | Price TBD | Out of stock | |
| 21 | 8360203 | TAPE-WINDSHIELD PLATE,TOP,RH | 1 | Price TBD | Out of stock | |
| 22 | 8360204 | TAPE-WINDSHIELD PLATE,CORNER | 2 | Price TBD | Out of stock | |
| 23 | 5815310 | FOAM-SEAL,STEERING COLUMN | 1 | $1.99 | In stock | |
| 24 | 5815128 | FOAM-BLOCK,STEERING | 1 | $4.99 | In stock | |
| 25 | 5814712 | SEAL-ACC WINDSHIELD,LWR,LH | 1 | $5.99 | In stock | |
| 26 | 5814713 | SEAL-ACC WINDSHIELD,LWR,RH | 1 | $5.99 | In stock | |
| 27 | 7043889 | SHOCK-GAS,TIPOUT,TTN | 2 | $84.99 | In stock | |
| 28 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 6 | $4.99 | In stock | |
| 29 | 5454734 | BASE-HANDLE,WNDSLD,TO,ZS | 1 | $39.99 | In stock | |
| 30 | 5815483 | SEAL-ACC WINDSHIELD,LONG,LH | 1 | $4.99 | In stock | |
| 31 | 5815484 | SEAL-ACC WINDSHIELD,LONG,RH | 1 | $4.99 | In stock | |
| 32 | 5276565 | BRKT-BACKER,TO,ZS | 1 | $19.99 | In stock | |
| 33 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 4 | $3.99 | Out of stock Est. Aug 7, 2026 | |
| 34 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 3 | $4.99 | In stock | |
| 35 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | $2.99 | In stock | |
| 36 | 5633878 | MNT-WNDSHD,GL,TO,LH,G2 TTN | 1 | $49.99 | In stock | |
| 37 | 5633879 | MNT-WNDSHD,GL,TO,RH,G2 TTN | 1 | $49.99 | In stock |
