Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, COMPONANTS
Product Description

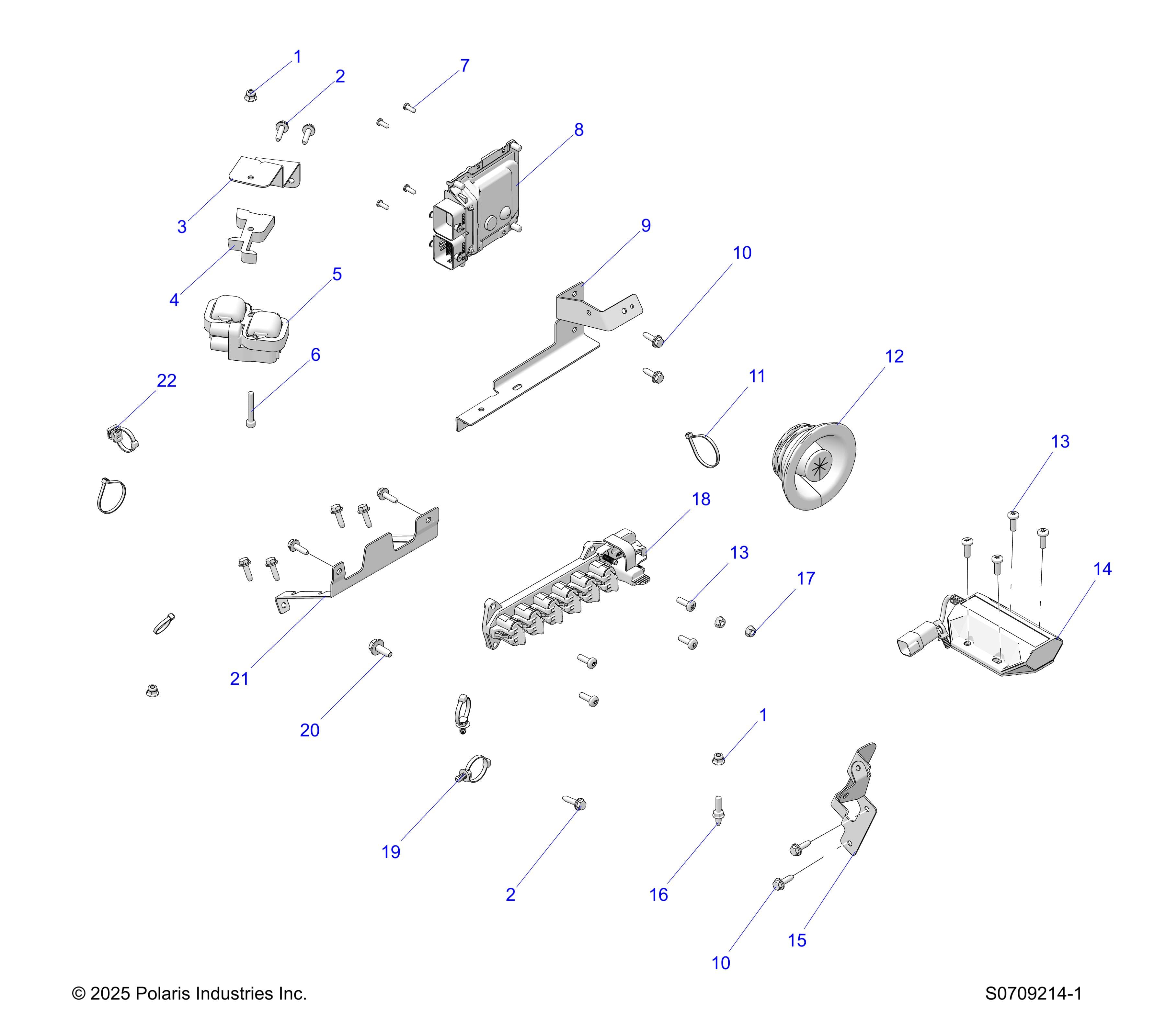

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247915
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | $1.99 | In stock | |
| 2 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 3 | $4.99 | In stock | |
| 3 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 4 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 5 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 6 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 8 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | $869.99 | In stock | |
| 9 | 5275805 | BRKT-HARNESS ROUTING | 1 | $14.99 | In stock | |
| 10 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 12 | $1.49 | In stock | |
| 11 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 0 | $2.99 | In stock | |
| 12 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 13 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock | |
| 14 | 4080566 | ASM-DONGLE,TELEMATICS,500K | 1 | Price TBD | Out of stock | |
| 15 | 5268050-329 | BRKT-ROUTING,BLK [TO 02/06/2026] | 1 | $34.99 | In stock | |
| 15 | 5276381-329 | BRKT-ROUTING,ECOAT [FROM 02/26/2026] | 1 | Price TBD | Out of stock | |
| 16 | 7519333 | STUD-M6X1.0X19-M6 TAPTITE | 1 | $9.99 | In stock | |
| 17 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | $4.99 | In stock | |
| 18 | 4016007 | BLOCK-TERMINAL,3 POST,TALL [INCLUDES FUSE, PLUG & COVER] | 1 | $44.99 | Out of stock Est. Aug 21, 2026 | |
| 19 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 0 | $5.99 | In stock | |
| 20 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 1 | $2.99 | In stock | |
| 21 | 5271546-329 | BRKT-FUSE HOLDER,PREM,BLK | 1 | $34.99 | In stock | |
| 22 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | $5.99 | In stock |
