ENGINE, COOLING SYSTEM and WATER PUMP - A26SYY95AK (C101431-26)
Product Description

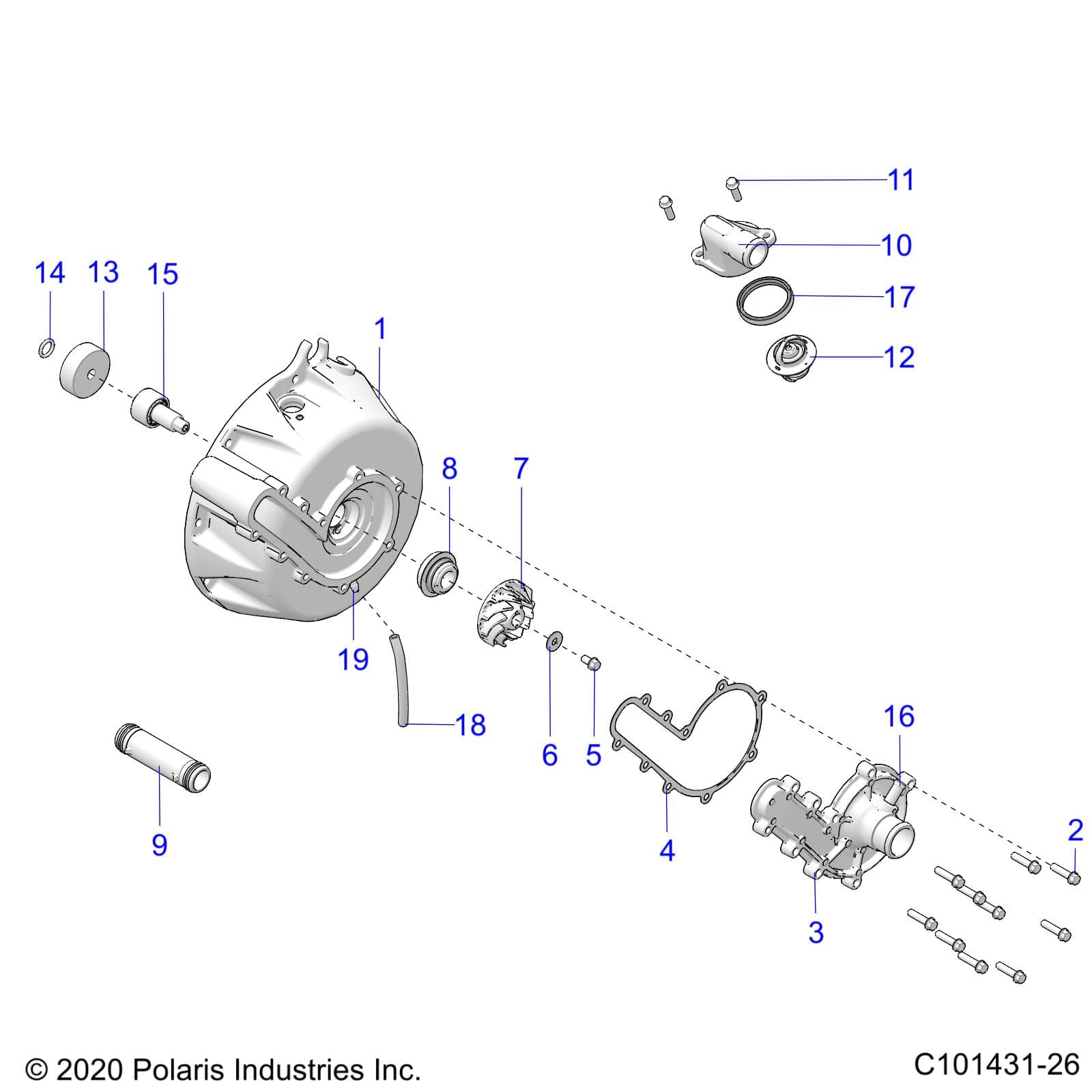

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING XP 1000 R01 - A26SYY95AK Assembly ID: 248224
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING XP 1000 R01 - A26SYY95AK
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1209135 | ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19][TO 9/8/2026] | 1 | $999.99 | In stock | |
| - | 1209536 | ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19][FRM 9/8/2026][FRM 4/2/2027] | 1 | Price TBD | Out of stock | |
| - | 1209540 | ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19][TO 4/2/2027] | 1 | Price TBD | Out of stock | |
| 1 | 5144073 | COVER-STATOR W/WATERPMP [COVER ONLY] | 1 | $89.99 | In stock | |
| 2 | 7527861 | SCR-M6X1.0X25-HXHD CLR COAT | 10 | $2.99 | In stock | |
| 3 | 5144074 | COVER-WATERPMP W/BP [INCL. COVER, FITTING, GASKET] | 1 | $84.99 | In stock | |
| 4 | 5412954 | GASKET, COVER | 1 | $39.99 | Out of stock Est. Jul 16, 2026 | |
| 5 | 7527860 | SCR-M6X1.0X12-HXHD | 1 | $2.99 | In stock | |
| 6 | 7558730 | WASHER-FLAT M6 | 1 | $4.99 | In stock | |
| 7 | 5639192 | IMPELLER-WATERPMP,CAST,60MM | 1 | $59.99 | In stock | |
| 8 | 3610136 | SEAL [TO 4/20/2026] | 1 | $89.99 | In stock | |
| 8 | 3610450 | SEAL-WATERPUMP 16MM [FRM 4/20/2026] | 1 | Price TBD | Out of stock | |
| 9 | 5453707 | TUBE, WATER TRANSFER [INCL. O-RINGS] | 1 | $104.99 | In stock | |
| 9 | 5412955 | O-RING,.864X1.00X.07 [USED W/ 5453707] | 4 | $8.99 | In stock | |
| 10 | 5632606 | COVER-THERMOSTAT | 1 | Price TBD | Out of stock | |
| 11 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 12 | 7052561 | THERMOSTAT | 1 | $54.99 | In stock | |
| 13 | 5140079 | COUPLER, SPLINE INT, WP BEARING | 1 | $39.99 | In stock | |
| 14 | 5417753 | O-RING-12.37X2.62,VITON | 1 | $1.99 | In stock | |
| 15 | 3514921 | BEARING-W/SHAFT,WATERPUMP OPC | 1 | $64.99 | In stock | |
| 16 | 7055563 | FITTING-COOLANT 3/8 | 1 | $11.99 | In stock | |
| 17 | 5413948 | SEAL-THERMOSTAT | 1 | Price TBD | Out of stock | |
| 18 | 8360209 | TUBING-NYLON 5MMX100MM BLK | 1 | $17.99 | In stock | |
| 19 | 7055562 | FITTING-6 MM,BRASS | 1 | $16.99 | In stock |
