Schematic diagram

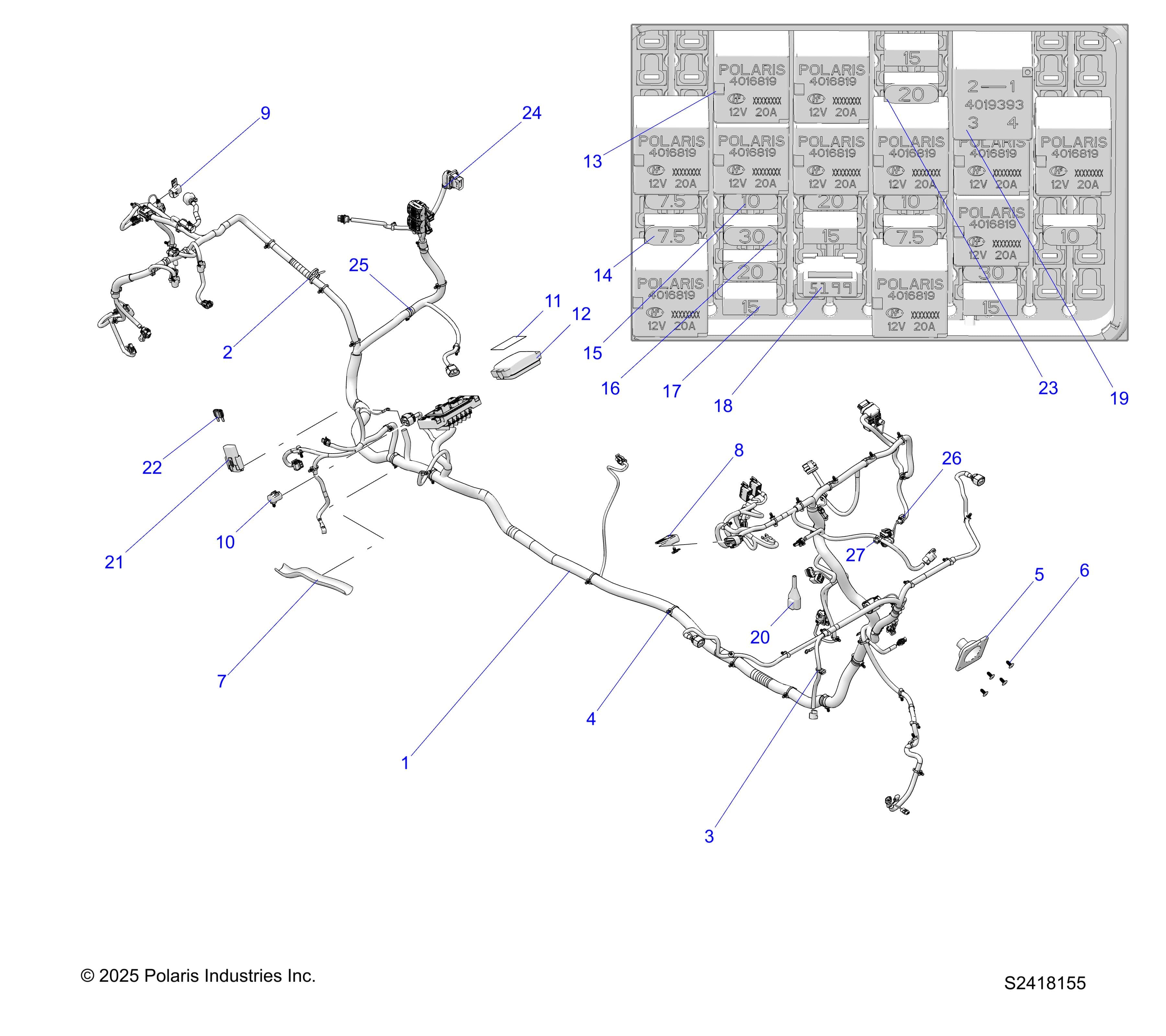

Polaris•Schematic assembly
ELECTRICAL, HARNESS CHASSIS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 248281
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418155-06 | HARN-CHASSIS,HVAC,CREW [INCLUDES ALL] | 1 | $1,749.99 | In stock | |
| 2 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | $5.99 | In stock | |
| 3 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | $6.99 | In stock | |
| 4 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 44 | $5.99 | In stock | |
| 5 | 5814560 | GROMMET - 65MM, W/FLANGE, BLK | 1 | $15.99 | In stock | |
| 6 | 7670090 | CLIP-FIR TREE,DART,6.35MM | 4 | $1.49 | In stock | |
| 7 | 5466438 | TRAY-ROUTING,HARNESS | 1 | $5.99 | In stock | |
| 8 | 4083558 | CAP-CON,16P,GT150/280 [INCLUDES 28] | 1 | $9.99 | In stock | |
| 9 | 4083557 | CAP-CONN,2P,MP280 | 1 | $9.99 | In stock | |
| 10 | 4083556 | CAP-CONN,8P,DIAGNOSTIC,W/CLIP | 1 | $9.99 | In stock | |
| 11 | 7301184 | DECAL-RELAY/FUSE BLOCK,HVAC | 1 | Price TBD | Out of stock | |
| 12 | 4081174 | COVER-FUSEBOX,96WAY | 1 | $84.99 | In stock | |
| 13 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 11 | $44.99 | In stock | |
| 14 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 3 | $13.99 | Out of stock Est. Sep 14, 2026 | |
| 15 | 2434016 | FUSE-IGNITION,10 AMP | 3 | $6.99 | In stock | |
| 16 | 2434015 | FUSE-MAIN,30 AMP | 2 | $9.99 | In stock | |
| 17 | 2410280 | FUSE-MINI BLADE,15 AMP | 4 | Price TBD | Out of stock | |
| 18 | 4081932 | RESISTOR-620 OHM, MINI | 1 | $54.99 | Out of stock Est. Sep 11, 2026 | |
| 19 | 4019393 | SSR-4PIN | 1 | $134.99 | In stock | |
| 20 | 4080238 | THROTTLE-CON BOOT | 1 | $11.99 | In stock | |
| 21 | 4018207 | HOLDER-FUSE,SEALED | 1 | $89.99 | In stock | |
| 22 | 4017180 | FUSE-MAXI,50A | 1 | $54.99 | In stock | |
| 23 | 2434017 | FUSE-PARK,20 AMP | 3 | Price TBD | Out of stock | |
| 24 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 1 | $2.99 | In stock | |
| 25 | 7082747 | STRAP-TREE MOUNT CABLE TIE | 1 | $0.99 | In stock | |
| 26 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | $5.99 | In stock | |
| 27 | 7082400 | CLIP-EDGE,1-3MM THICKNESS | 1 | $6.99 | In stock |
