Schematic diagram
Polaris•Schematic assembly

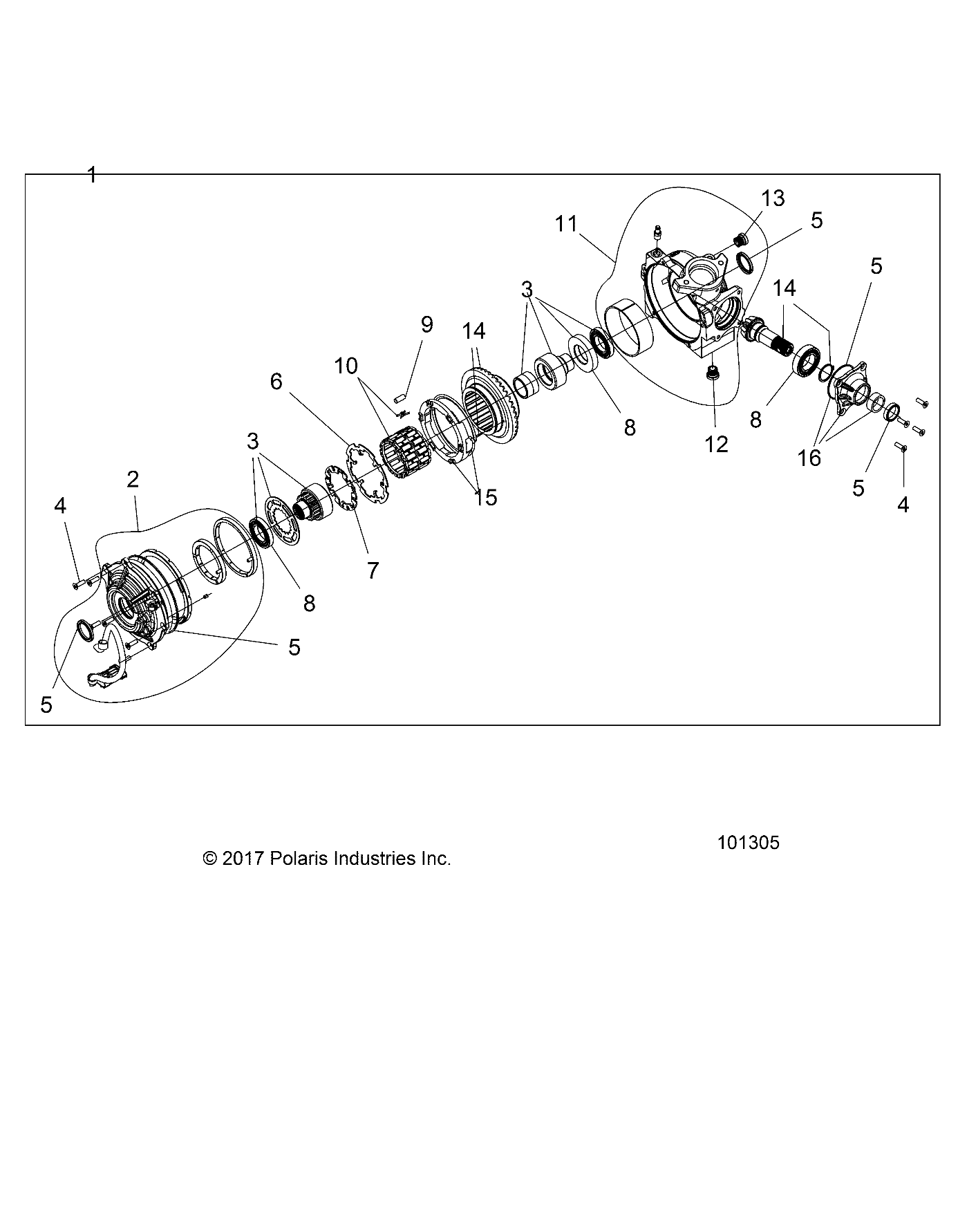

DRIVE TRAIN, FRONT GEARCASE INTERNALS - A26SYE85AL (101305)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 850 48" R02 - A26SYE85AL Assembly ID: 248346
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 850 48" R02 - A26SYE85AL
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337616 | ASM-GEARCASE,FRONT,ADC [INCL. ALL] | 1 | $2,004.99 | Out of stock Est. Aug 7, 2026 | |
| 2 | 3236666 | ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING] | 1 | $649.99 | In stock | |
| 3 | 3236674 | ASM., OUTPUT HUB [INCL. BEARING, BUSHING, HUB, HUB PLATE, SPACER, HUB ASM.] | 1 | $559.99 | In stock | |
| 4 | 3235433 | COVER, FASTENERS [INCL. 10 SCREWS] | 1 | $44.99 | In stock | |
| 5 | 3236671 | KIT, SEAL REPAIR [INCL. ALL SEALS AND O-RINGS] | 1 | $94.99 | In stock | |
| 6 | 3235485 | PLATE, 4WD, ARMATURE | 1 | Price TBD | Out of stock | |
| 7 | 3235626 | ARMATURE PLATE, BACK DRIVE | 1 | $124.99 | In stock | |
| 8 | 3235435 | KIT, BEARINGS [INCL. ALL BALL BEARINGS] | 1 | $149.99 | In stock | |
| 9 | 3235624 | K-CLUTCH ROLLS [INCL. SET OF 24 ROLLERS] | 1 | Price TBD | Out of stock | |
| 10 | 3235625 | ASM-ROLL CAGE [INCL. CAGE, 24 CLIPS] | 1 | $214.99 | In stock | |
| 11 | 3236680 | ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT] | 1 | $899.99 | In stock | |
| 12 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock | |
| 13 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 14 | 3239382 | ASM., GEAR HOUSING AND PINION GEAR [INCL. BEARING, SNAP RING, PIN, PINION, RING GEAR] | 1 | $859.99 | In stock | |
| 15 | 3235712 | KIT-TORSION,SPRING AND RETAINER | 1 | Price TBD | Out of stock | |
| 16 | 3236143 | ASM., COVER INPUT [INCL. COVER, SEAL, O-RING, BEARING] | 1 | $129.99 | In stock |
