Polaris•Schematic assembly

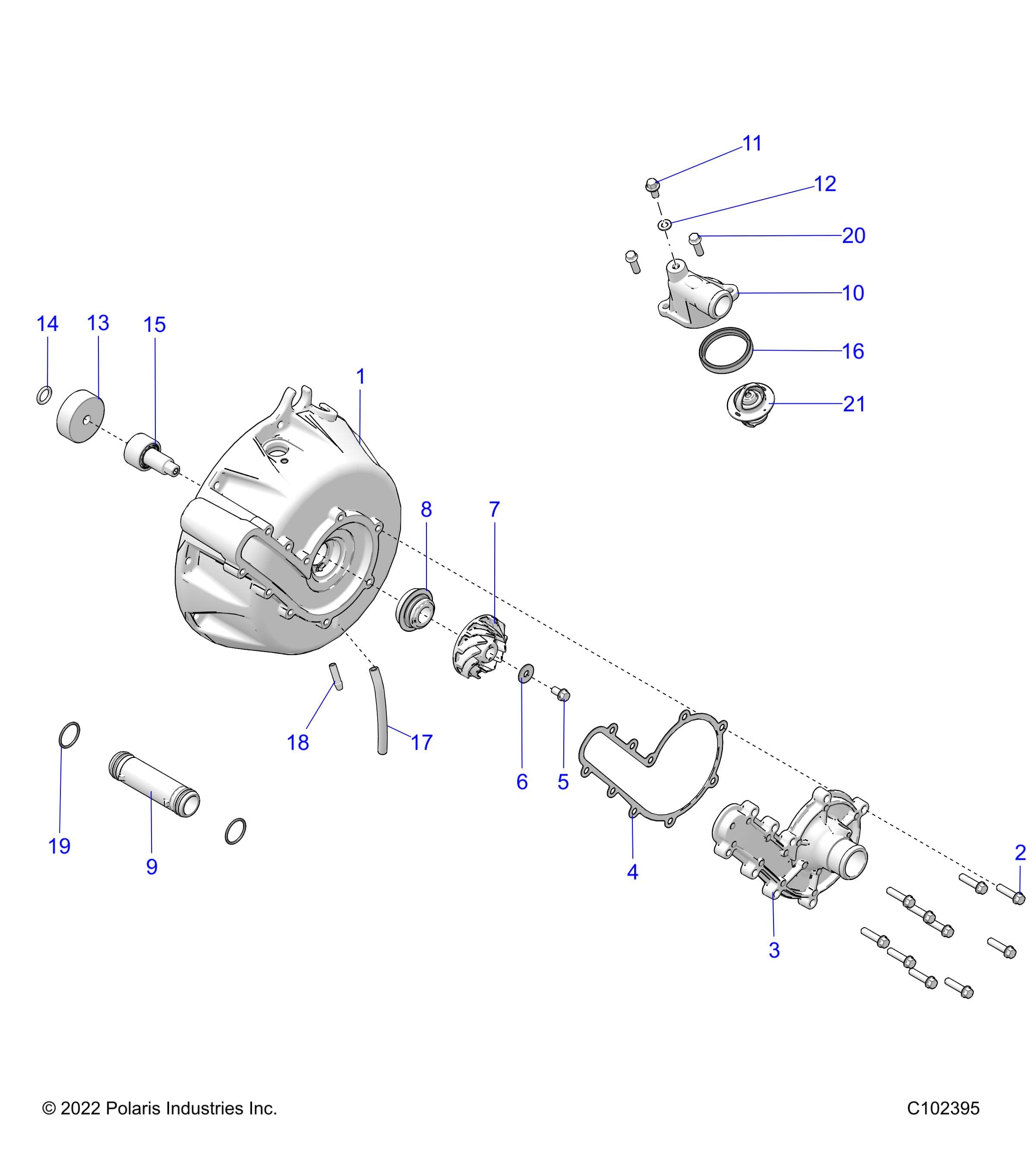

ENGINE, COOLING SYSTEM and WATER PUMP - A26SYE85AL (C102395)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 850 48" R02 - A26SYE85AL Assembly ID: 248370
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 850 48" R02 - A26SYE85AL
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1209135 | ASM-STATOR CVR W/WATERPUMP [TO 9/8/2026] | 1 | $999.99 | In stock | |
| 1 | 1209536 | ASM-STATOR CVR W/WATERPUMP [FRM 9/8/2026][TO 4/2/2027] | 1 | Price TBD | Out of stock | |
| 1 | 1209540 | ASM-STATOR CVR W/WATERPUMP [FRM 4/2/2027] | 1 | Price TBD | Out of stock | |
| 1 | 5144073 | COVER-STATOR W/WATERPMP | 1 | $89.99 | In stock | |
| 2 | 7527861 | SCR-M6X1.0X25-HXHD CLR COAT | 10 | $2.99 | In stock | |
| 3 | 2204955 | KIT-WATERPUMP COVER W/FTNG [INCL. COVER, FITTING, GASKET] | 1 | $74.99 | In stock | |
| 3 | 5144074 | COVER-WATERPMP W/BP | 1 | $84.99 | In stock | |
| 4 | 5412954 | GASKET, COVER | 1 | $39.99 | Out of stock Est. Jul 16, 2026 | |
| 5 | 7527860 | SCR-M6X1.0X12-HXHD | 1 | $2.99 | In stock | |
| 6 | 7558730 | WASHER-FLAT M6 | 1 | $4.99 | In stock | |
| 7 | 5639192 | IMPELLER-WATERPMP,CAST,60MM | 1 | $59.99 | In stock | |
| 8 | 3610136 | SEAL [TO 4/20/2026] | 1 | $89.99 | In stock | |
| 8 | 3610450 | SEAL-WATERPUMP 16MM [FRM 4/20/2026] | 1 | Price TBD | Out of stock | |
| 9 | 7055563 | FITTING-COOLANT 3/8 [USED W/ 5453707] | 1 | $11.99 | In stock | |
| 9 | 5453707 | TUBE, WATER TRANSFER [INCL. O-RINGS] | 1 | $104.99 | In stock | |
| 10 | 1206006 | ASM, THERMOSTAT COVER [INCL. COVER, BLEED SCREW, WASHER] | 1 | $54.99 | In stock | |
| 11 | 7521072 | SCR-M6X1.0X13,SL/HX/FL-Z,BLEED [USED W/ 1206006] | 1 | $4.99 | In stock | |
| 12 | 7557179 | WASHER-FLAT,6.15X12X1MM-AL [USED W/ 1206006] | 1 | $3.99 | In stock | |
| 13 | 5140079 | COUPLER, SPLINE INT, WP BEARING | 1 | $39.99 | In stock | |
| 14 | 5417753 | O-RING-12.37X2.62,VITON | 1 | $1.99 | In stock | |
| 15 | 3514921 | BEARING-W/SHAFT,WATERPUMP OPC | 1 | $64.99 | In stock | |
| 16 | 5413948 | SEAL-THERMOSTAT | 1 | Price TBD | Out of stock | |
| 17 | 8360209 | TUBING-NYLON 5MMX100MM BLK | 1 | $17.99 | In stock | |
| 18 | 7055562 | FITTING-6 MM,BRASS | 1 | $16.99 | In stock | |
| 19 | 5412955 | O-RING,.864X1.00X.07 | 4 | $8.99 | In stock | |
| 20 | 7527859 | SCR-M6X1.0X10,SHCS | 2 | $5.99 | In stock | |
| 21 | 7052561 | THERMOSTAT | 1 | $54.99 | In stock |
