Polaris•Schematic assembly

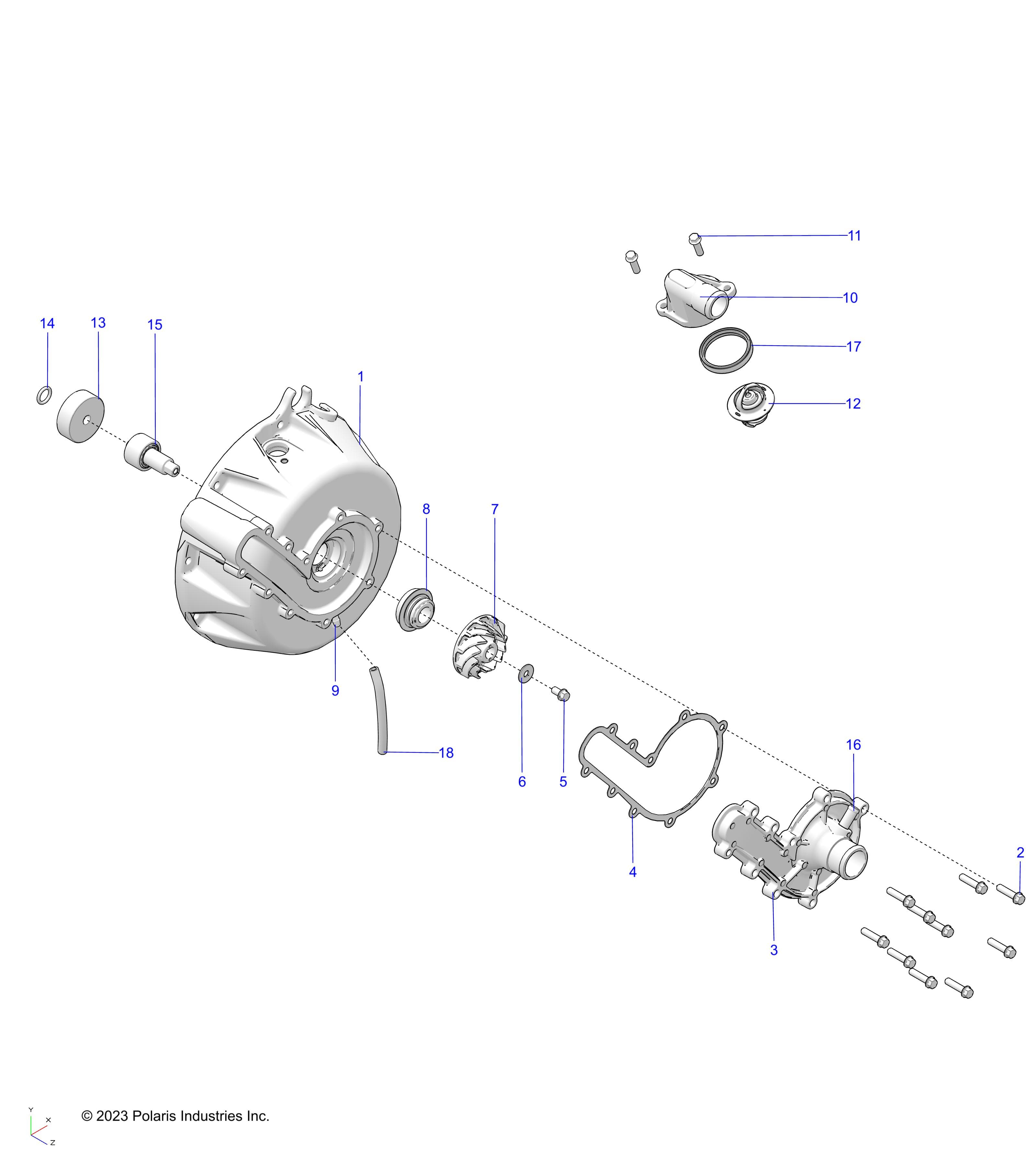

ENGINE, COOLING SYSTEM and WATER PUMP - A26SXA85A1 (C102561)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 48" R02 - A26SXA85A1 Assembly ID: 248450
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 48" R02 - A26SXA85A1
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1209135 | ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19][TO 9/8/2026] | 1 | $999.99 | In stock | |
| - | 1209536 | ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19][FRM 9/8/2026][TO 4/2/2027] | 1 | Price TBD | Out of stock | |
| - | 1209540 | ASM-STATOR CVR W/WATERPUMP [INCL 1-9,13-16,AND 18,19][FRM 4/2/2027] | 1 | Price TBD | Out of stock | |
| 1 | 5144073 | COVER-STATOR W/WATERPMP [COVER ONLY] | 1 | $89.99 | In stock | |
| 2 | 7527861 | SCR-M6X1.0X25-HXHD CLR COAT | 10 | $2.99 | In stock | |
| 3 | 5144074 | COVER-WATERPMP W/BP [INCL. COVER, FITTING, GASKET] | 1 | $84.99 | In stock | |
| 4 | 5412954 | GASKET, COVER | 1 | $39.99 | Out of stock Est. Jul 16, 2026 | |
| 5 | 7527860 | SCR-M6X1.0X12-HXHD | 1 | $2.99 | In stock | |
| 6 | 7558730 | WASHER-FLAT M6 | 1 | $4.99 | In stock | |
| 7 | 5639192 | IMPELLER-WATERPMP,CAST,60MM | 1 | $59.99 | In stock | |
| 8 | 3610136 | SEAL [TO 4/20/2026] | 1 | $89.99 | In stock | |
| 8 | 3610450 | SEAL-WATERPUMP 16MM [FRM 4/20/2026] | 1 | Price TBD | Out of stock | |
| 9 | 7055562 | FITTING-6 MM,BRASS | 1 | $16.99 | In stock | |
| 10 | 5632606 | COVER-THERMOSTAT | 1 | Price TBD | Out of stock | |
| 11 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 12 | 7052561 | THERMOSTAT | 1 | $54.99 | In stock | |
| 13 | 5140079 | COUPLER, SPLINE INT, WP BEARING | 1 | $39.99 | In stock | |
| 14 | 5417753 | O-RING-12.37X2.62,VITON | 1 | $1.99 | In stock | |
| 15 | 3514921 | BEARING-W/SHAFT,WATERPUMP OPC | 1 | $64.99 | In stock | |
| 16 | 7055563 | FITTING-COOLANT 3/8 | 1 | $11.99 | In stock | |
| 17 | 5413948 | SEAL-THERMOSTAT | 1 | Price TBD | Out of stock | |
| 18 | 8360209 | TUBING-NYLON 5MMX100MM BLK | 1 | $17.99 | In stock |
