Polaris•Schematic assembly

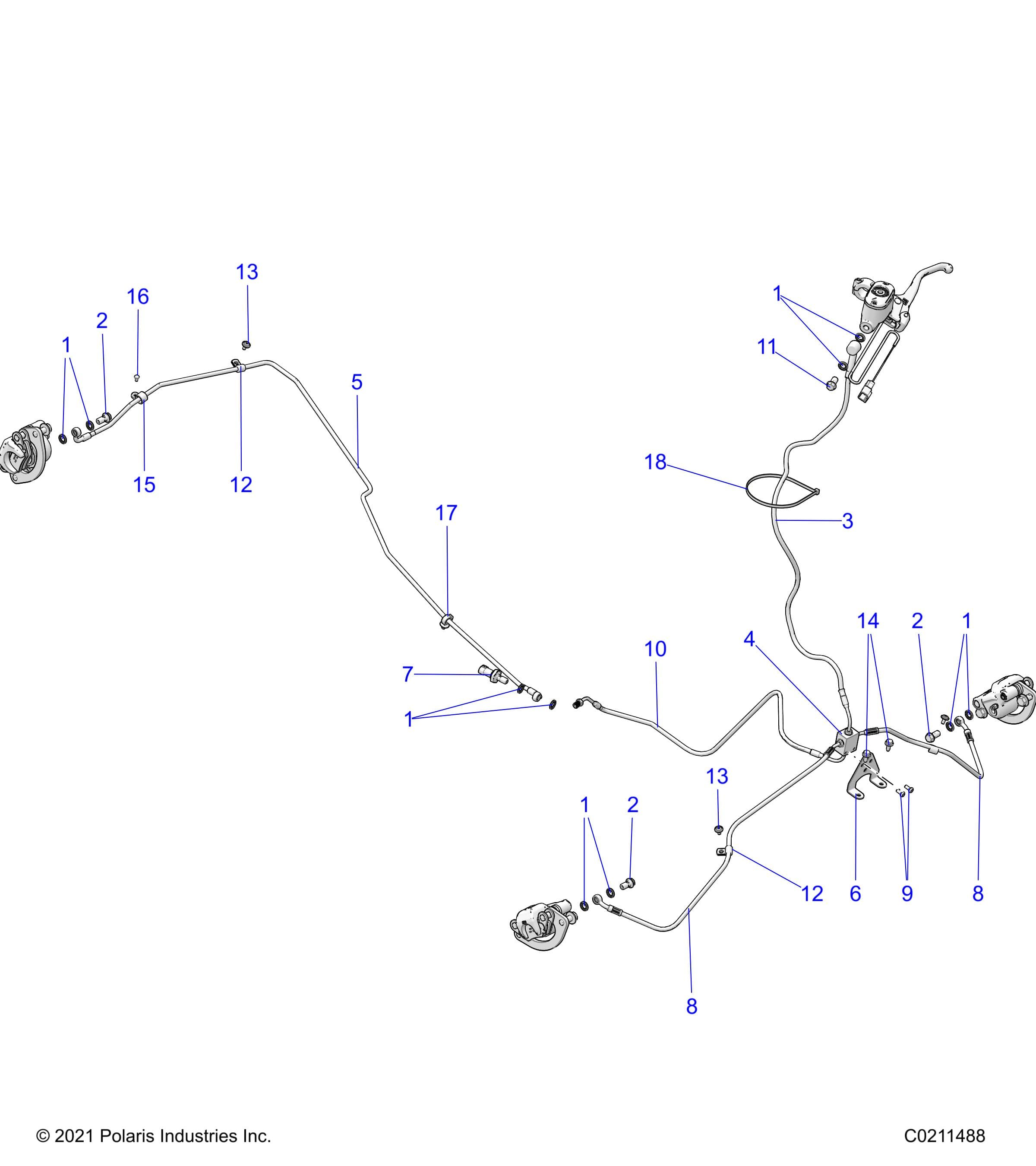

BRAKES, BRAKE LINES - A26SXZ85A9/AN/AZ (C0211488)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 TRAIL 49 R01 - A26SXZ85A9/AN/AZ Assembly ID: 248841
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 TRAIL 49 R01 - A26SXZ85A9/AN/AZ
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5413212 | SEAL-STAT-0-3/8, 70EP | 10 | Price TBD | Out of stock | |
| 2 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 3 | Price TBD | Out of stock | |
| 3 | 1914102 | LINE-BRK,MCT | 1 | $104.99 | In stock | |
| 4 | 7052372 | FITTING, CROSS | 1 | $74.99 | In stock | |
| 5 | 1913025 | LINE-BRK,RR,57,70B,90B,180,JF | 1 | $164.99 | In stock | |
| 6 | 5257768 | BRACKET, JUNCTION BLOCK | 2 | $12.99 | In stock | |
| 7 | 4081240 | SWITCH-BRK,M10X1.25,SGL,30-79 [TO 1/14/2026] | 1 | Price TBD | Out of stock | |
| 7 | 4081314 | SWITCH-BRK,M10X1.25,SGL,30-79 [FRM 1/14/2026] | 1 | $104.99 | In stock | |
| 8 | 1911668 | LINE, BRAKE, CALIPER, FRONT | 2 | $99.99 | In stock | |
| 9 | 7512024 | SCR-#10-24X1/2PH/TORX-TRIRD-Y | 2 | Price TBD | Out of stock | |
| 10 | 1911669 | LINE, BRAKE, JB TO FT MC | 1 | $104.99 | Out of stock Est. Oct 12, 2026 | |
| 11 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 12 | 7081246 | CLAMP, WIRE/TUBE .25 DIA | 3 | Price TBD | Out of stock | |
| 13 | 7518176 | SCR-10-24X1/2 PH/TX/TRIRD/SEMB | 3 | Price TBD | Out of stock | |
| 14 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 2 | Price TBD | Out of stock | |
| 15 | 7080499 | CLAMP-CABLE, 9/16 I.D. | 1 | Price TBD | Out of stock | |
| 16 | 7621334 | RIVET-5/32 BULBEX-B | 1 | $1.49 | In stock | |
| 17 | 7670116 | CLIP, ROUTING, .472 B.D., HINGED | 1 | Price TBD | Out of stock | |
| 18 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | Price TBD | Out of stock |
