Polaris•Schematic assembly

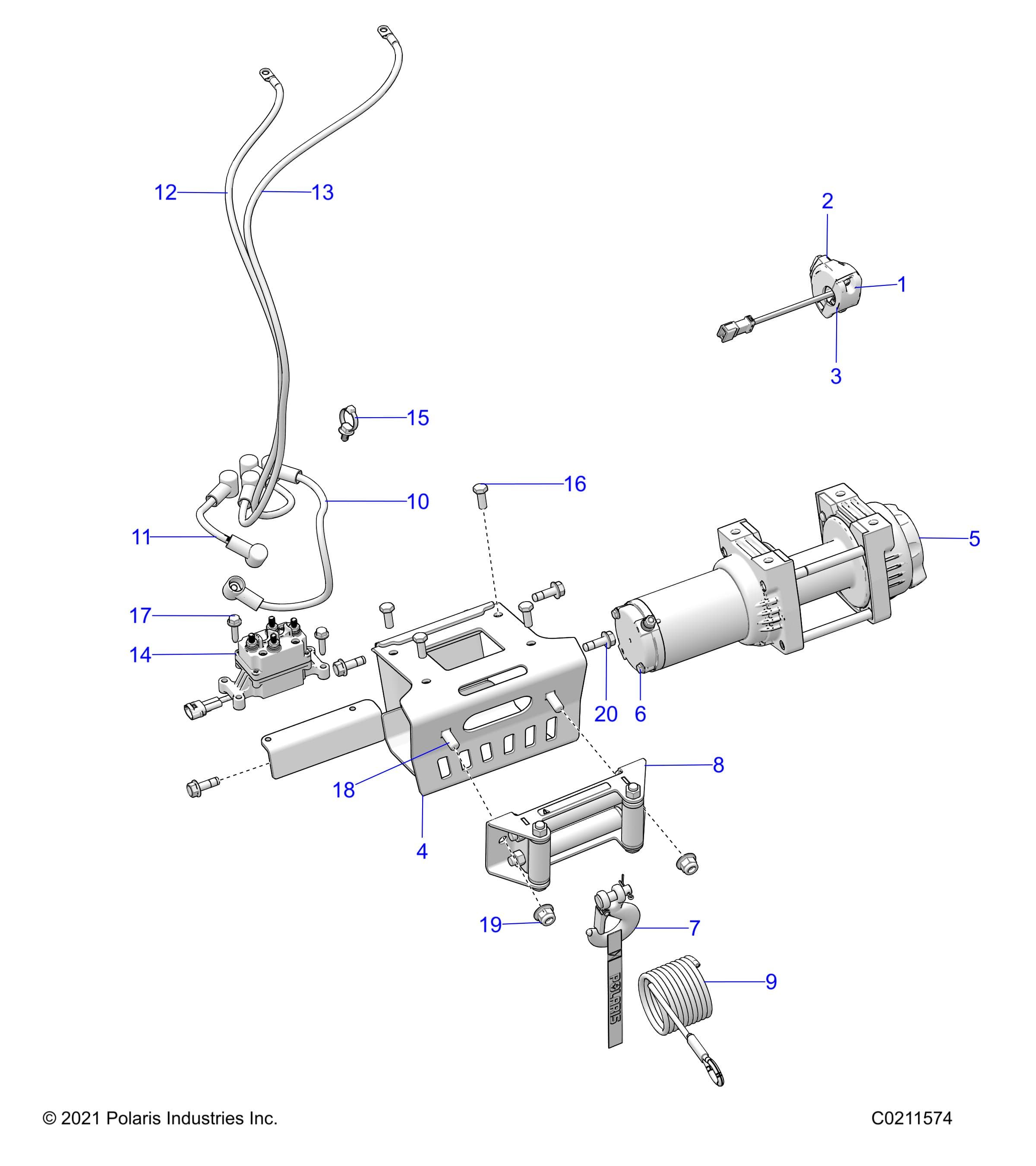

CHASSIS, WINCH - A26SXZ85A9/AN/AZ (C0211574)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 TRAIL 49 R01 - A26SXZ85A9/AN/AZ Assembly ID: 248848
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 TRAIL 49 R01 - A26SXZ85A9/AN/AZ
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2207175 | K-WINCH SWITCH,HBR,EU,ATV | 1 | $79.99 | In stock | |
| 2 | 4017111 | SWITCH-HBR,EU,ATV | 1 | Price TBD | Out of stock | |
| 3 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 1 | Price TBD | Out of stock | |
| 4 | 1022577 | WELD-WINCH MT BRKT,CTR,ATV | 1 | $114.99 | In stock | |
| 5 | 2640451 | ASM-WINCH,35HD,TH,SMF | 1 | $349.99 | In stock | |
| 5 | 2212694 | WINCH-POL,35HD,TH,T,B+45 | 1 | $364.99 | In stock | |
| 6 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 6 | 2212756 | SVC-WINCH MOTOR,35HDT | 1 | $99.99 | In stock | |
| 7 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN | 1 | Price TBD | Out of stock | |
| 7 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock | |
| 7 | 7662462 | PIN-CLEVIS,4500 WINCH | 1 | $5.99 | In stock | |
| 7 | 7662463 | PIN-COTTER,WINCH | 1 | $29.99 | In stock | |
| 8 | 2411848 | ROLLER, FAIRLEAD, WINCH 25/3500 | 1 | $99.99 | In stock | |
| 9 | 2878888 | ROPE-WINCH,SYNTHETIC,50' | 1 | $94.99 | In stock | |
| 10 | 4013468-300 | CABLE-WINCH,YELLOW 6 GA,300MM | 1 | $44.99 | In stock | |
| 11 | 4013469-340 | CABLE-WINCH,BLUE 6 GA,340MM | 1 | $39.99 | In stock | |
| 12 | 4013470-530 | CABLE-POWER,WINCH,BLK #6,530MM | 1 | $44.99 | In stock | |
| 13 | 4013471-510WC | CABLE-POWER,WINCH,RED #6,510MM | 1 | $44.99 | In stock | |
| 14 | 4015095 | CONTACTOR-WINCH,POL,LIF,CAP | 1 | $109.99 | In stock | |
| 15 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 16 | 7519260 | SCR-TXTH-M8X1.25X20 8.8 ZODP30 | 4 | $7.99 | In stock | |
| 17 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 18 | 7527976 | SCR-RHCAR-M8X1.25X25 8.8 SPEC | 2 | $1.99 | In stock | |
| 19 | 7547317 | NUT-M8X1.25,HXFLG,NYLON INS | 2 | Price TBD | Out of stock | |
| 20 | 7518514 | BOLT-M8X1.25X25,HXFLG-OLIVE D | 4 | Price TBD | Out of stock |
