Schematic diagram
Polaris•Schematic assembly

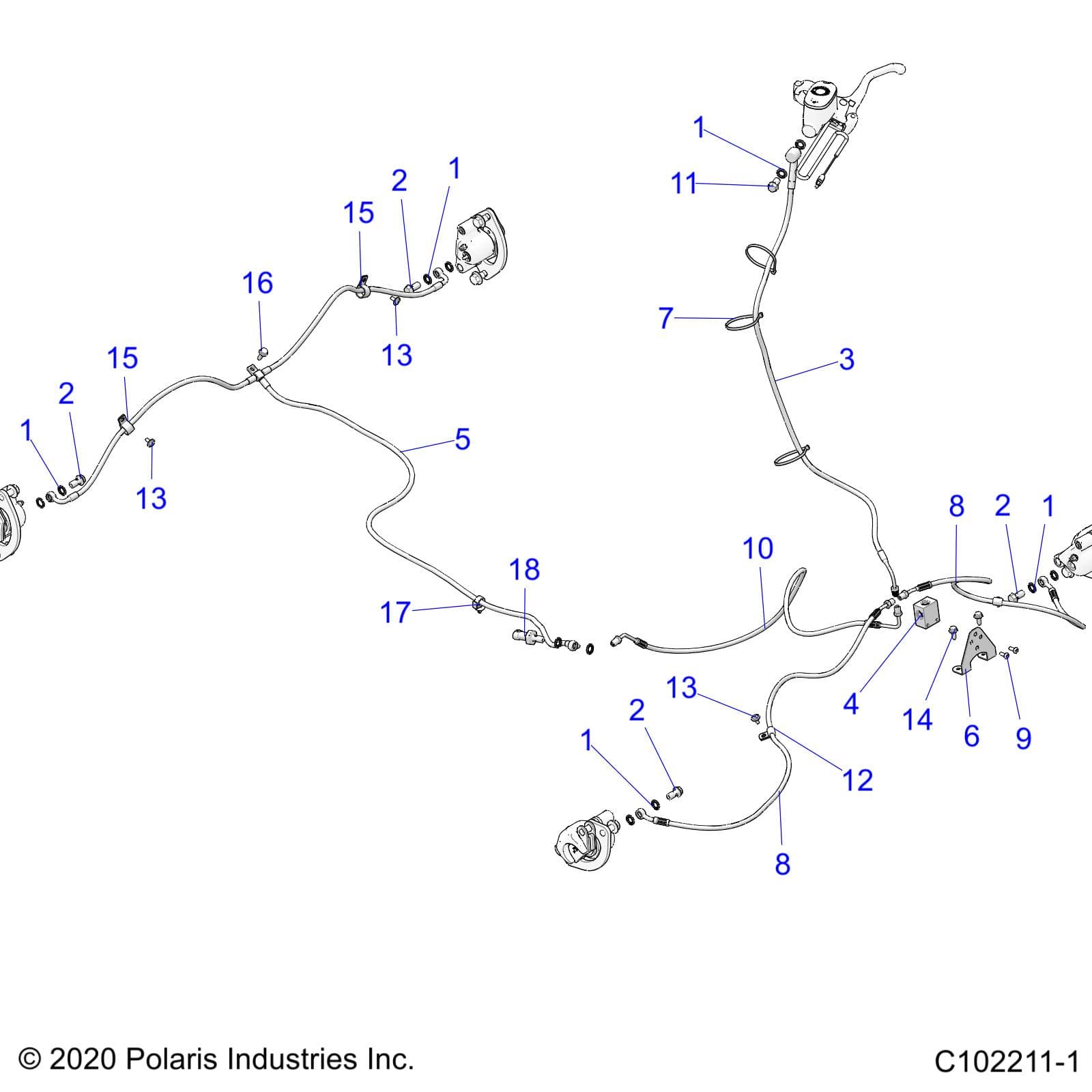

BRAKES, BRAKE LINES - A26SXN85A7 (C102211-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 850 MUD 49S R01 - A26SXN85A7 Assembly ID: 249003
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 850 MUD 49S R01 - A26SXN85A7
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5413212 | SEAL-STAT-0-3/8, 70EP | 12 | Price TBD | Out of stock | |
| 2 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 4 | Price TBD | Out of stock | |
| 3 | 1914102 | LINE-BRK,MCT | 1 | $104.99 | In stock | |
| 4 | 7052372 | FITTING, CROSS | 1 | $74.99 | In stock | |
| 5 | 1913022 | LINE-BRAKE,REAR,G2 | 1 | $169.99 | In stock | |
| 6 | 5257768 | BRACKET, JUNCTION BLOCK | 1 | $12.99 | In stock | |
| 7 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | Price TBD | Out of stock | |
| 8 | 1911668 | LINE, BRAKE, CALIPER, FRONT | 2 | $99.99 | In stock | |
| 9 | 7512024 | SCR-#10-24X1/2PH/TORX-TRIRD-Y | 2 | Price TBD | Out of stock | |
| 10 | 1911669 | LINE, BRAKE, JB TO FT MC | 1 | $104.99 | Out of stock Est. Oct 12, 2026 | |
| 11 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 1 | Price TBD | Out of stock | |
| 12 | 7081246 | CLAMP, WIRE/TUBE .25 DIA | 2 | Price TBD | Out of stock | |
| 13 | 7518176 | SCR-10-24X1/2 PH/TX/TRIRD/SEMB | 4 | Price TBD | Out of stock | |
| 14 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 2 | Price TBD | Out of stock | |
| 15 | 7080880 | CLAMP-HOSE,.625 DIA VNL COATED | 2 | Price TBD | Out of stock | |
| 16 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | Price TBD | Out of stock | |
| 17 | 7670116 | CLIP, ROUTING, .472 B.D., HINGED | 1 | Price TBD | Out of stock | |
| 18 | 4081240 | SWITCH-BRK,M10X1.25,SGL,30-79 [TO 1/14/2026] | 1 | Price TBD | Out of stock | |
| 18 | 4081314 | SWITCH-BRK,M10X1.25,SGL,30-79 [FRM 1/14/2026] | 1 | $104.99 | In stock |
