Polaris•Schematic assembly

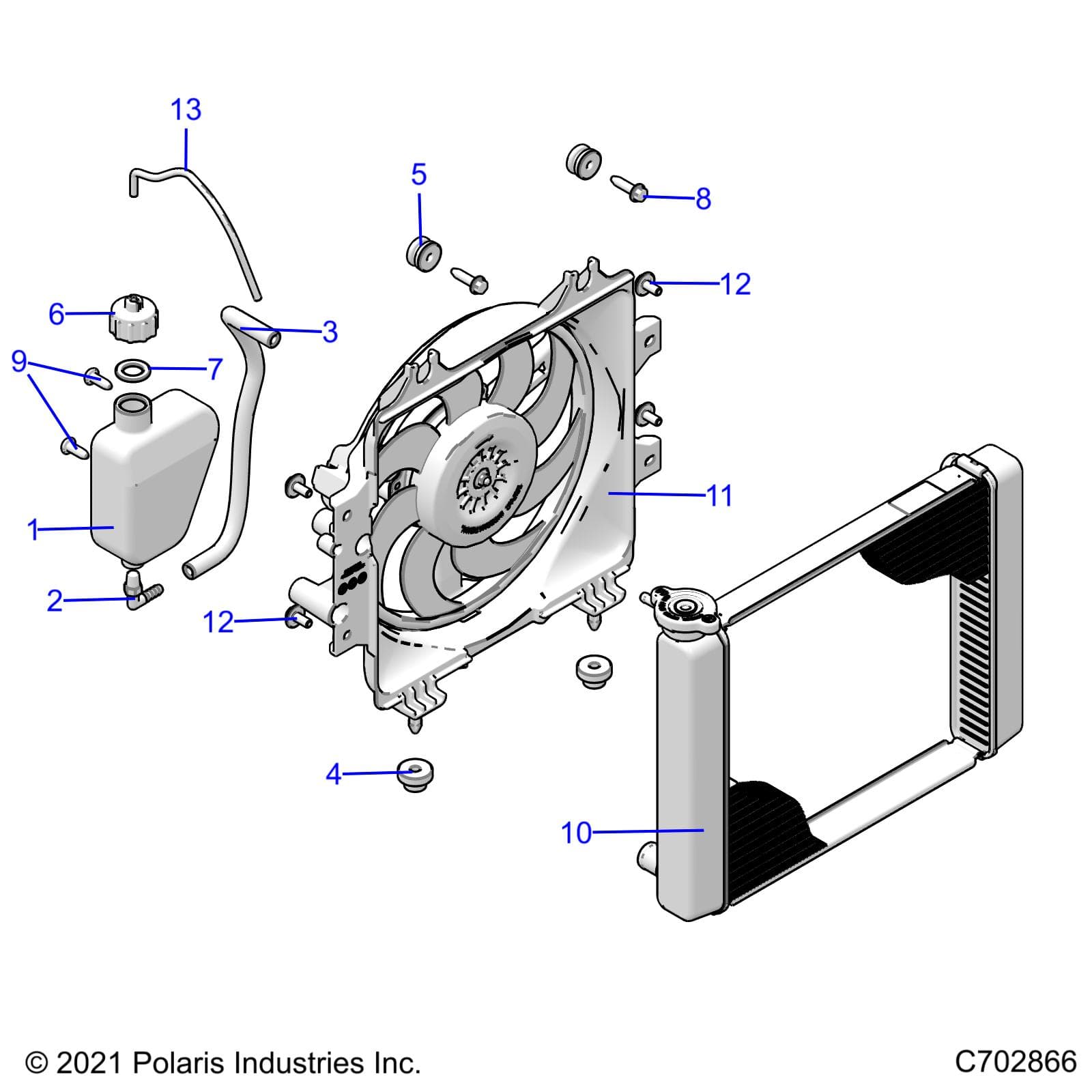

ENGINE, COOLING SYSTEM, RADIATOR, FAN & OVERFLOW BOTTLE - A26SDZ57AB (C702866)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 570 PREM Assembly ID: 249754
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 570 PREM
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | ------- | ASM-SURGE TANK [INCL. 1-3,6,&7] | 1 | Price TBD | Out of stock | |
| 1 | 5436936 | TANK-SURGE | 1 | $99.99 | In stock | |
| 2 | 7052065 | FITTING-1/8-27, BARBED, 90 DEG | 1 | $8.99 | In stock | |
| 3 | 8450120-32 | 1/4"SAEJ2002,EPDM HOSE,32 CM | 1 | Price TBD | Out of stock | |
| 4 | 5410584 | BUSHING-MOUNT,LOWER RADIATOR | 2 | $6.99 | In stock | |
| 5 | 5416503 | ASM-GROMMET & INSERT | 2 | Price TBD | Out of stock | |
| 6 | 5437635 | CAP, OVER FLOW BOTTLE, W/FITTING | 2 | $5.99 | In stock | |
| 7 | 5810279 | GASKET-OVERFLOW CAP | 2 | Price TBD | Out of stock | |
| 8 | 7515179 | SCR-1/4-20X1 HX/WH/TAP/R GR5-Y | 2 | $2.99 | In stock | |
| 9 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 10 | 1244705 | ASM-RADIATOR | 1 | $519.99 | In stock | |
| 11 | 2415473 | ASM-FAN AND MOTOR,TRIPAC,SGL | 1 | $236.99 | In stock | |
| 12 | 7519585 | BOLT, M6X15MM | 1 | Price TBD | Out of stock | |
| 13 | 8360009 | VENT LINE,1/8,BULK Substituted by 8360009-600 | 1 | Price TBD | Out of stock |
