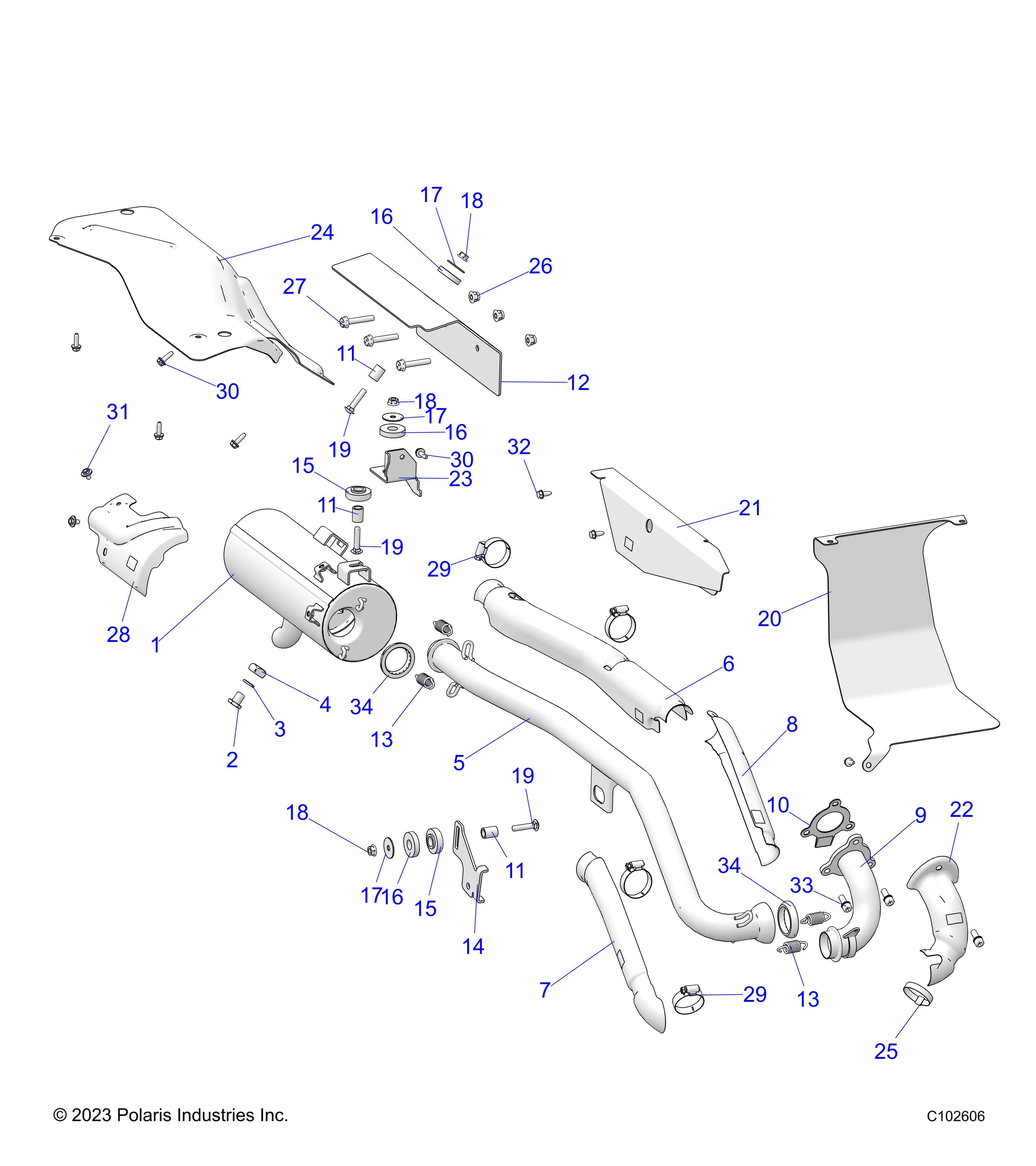

Schematic diagram
Polaris•Schematic assembly
ENGINE, EXHAUST - A26SDZ57AB (C102606)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 570 PREM Assembly ID: 249759
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 570 PREM
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1263784 | WELD-EXHAUST,SILENCER [INCL. 1-3] | 1 | $469.99 | In stock | |
| 2 | 7520756 | BOLT-1/2-20X5/8 HXHDCAP-GR5-P | 1 | $6.99 | In stock | |
| 3 | 7557077 | WASHER-CLEAN OUT .51X75X.09 | 1 | $9.99 | In stock | |
| 4 | 7547930 | NUT-1/2-13-WELD | 1 | $8.99 | In stock | |
| 5 | 1263475 | ASM-EXHAUST,MID-PIPE [INCL. PIPE, SHIELDS, CLAMPS] | 1 | $364.99 | In stock | |
| 6 | 5267366 | SHIELD-HEAT,EXHAUST,REAR | 1 | $89.99 | In stock | |
| 7 | 5267367 | SHIELD-HEAT,EXHAUST,MID,OUTER | 1 | $79.99 | In stock | |
| 8 | 5267368 | SHIELD-HEAT,EXHAUST MID,INNER | 1 | $39.99 | In stock | |
| 9 | 1263476 | WELD-MANIFOLD,570 | 1 | $159.99 | In stock | |
| 10 | 3610360 | SEAL-EXHAUST,MANIFOLD,570 | 1 | $13.99 | In stock | |
| 11 | 5144284 | BUSHING-EXHAUST,15.87 X 21 | 3 | $7.99 | In stock | |
| 12 | 5274891-458 | BRKT-SILENCER,M.BLK | 1 | $39.99 | In stock | |
| 13 | 7045211 | SPRING-EXHAUST | 4 | Price TBD | Out of stock | |
| 14 | 5273935-329 | BRKT-EXHAUST PIPE SUPPORT,BLK | 1 | $15.99 | In stock | |
| 15 | 5418949 | DAMPENER-VIBRATION | 3 | $8.99 | In stock | |
| 16 | 5418948 | WSHR-15.4X38.1X7.9 RUBBER | 3 | $4.99 | In stock | |
| 17 | 7555716 | WASHER-.328X1.25X16GA, FL-Y | 3 | Price TBD | Out of stock | |
| 18 | 7547623 | NUT-5/16-18,HX,TCHLCK,FLNG,ZNC | 3 | $3.99 | In stock | |
| 19 | 7515316 | BOLT-CARR-5/16-18X1 1/2 GR5-Y | 3 | $2.99 | In stock | |
| 20 | 5262925 | SHIELD-FUEL TANK,FRAME MNT,TRG | 1 | $34.99 | In stock | |
| 21 | 5274786 | SHIELD-HEAT,AIRBOX | 1 | $59.99 | In stock | |
| 22 | 5268871 | SHIELD-HEAT,EXHAUST HEADPIPE | 1 | $59.99 | In stock | |
| 23 | 5269882-329 | BRKT-EXHAUST MOUNT,BLK | 1 | $13.99 | In stock | |
| 24 | 5269956 | SHIELD-FENDER | 1 | $94.99 | In stock | |
| 25 | 7082132 | CLAMP-45.0DX7W,304SS,OETIKER | 1 | $5.99 | In stock | |
| 26 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 3 | Price TBD | Out of stock | |
| 27 | 7521332-45 | SCR-HXFL-M8X1.25X45 10.9 ZFB | 3 | Price TBD | Out of stock | |
| 28 | 5273308 | SHIELD-DEBRIS | 1 | $24.99 | In stock | |
| 29 | 7082359 | CLAMP-HOSE, 2.00-SS | 4 | $16.99 | In stock | |
| 30 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 5 | Price TBD | Out of stock | |
| 31 | 7520291 | SCR-HHSEMS-M6X1.0X10 A286,LOCK | 2 | Price TBD | Out of stock | |
| 32 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 33 | 7517555 | SCR-M8X1.25X20,HXSOC-CSSPL-SEM | 3 | $10.99 | In stock | |
| 34 | 5256385 | SEAL, EXHAUST | 2 | $34.99 | In stock |
