Polaris•Schematic assembly
BODY, SEAT, BASE UNITS
Product Description

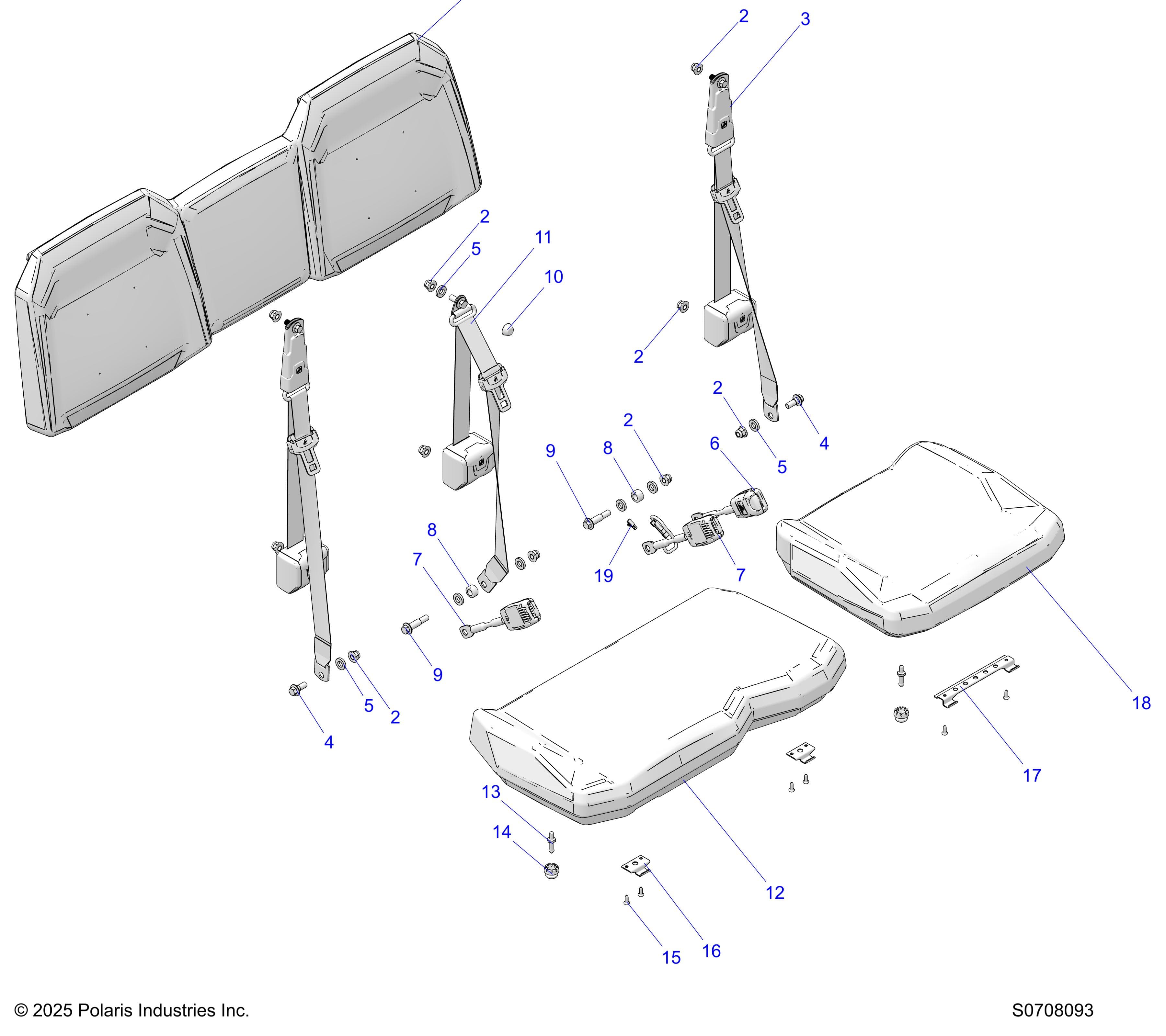

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250127
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 2 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 10 | $3.99 | In stock | |
| 3 | 2638785 | ASM-SEAT BELT,3PT | 2 | $309.99 | In stock | |
| 4 | 7519770 | SCR-HXFLSH-M12X1.75-M14X9 ZOD | 6 | $5.99 | In stock | |
| 5 | 5813829 | WASHER-SEATBELT,RUBBER | 7 | $1.49 | In stock | |
| 6 | 2636437 | BUCKLE-SEATBELT,90,SWITCH,TR | 1 | $64.99 | Out of stock Est. Aug 21, 2026 | |
| 7 | 2636438 | BUCKLE-SEATBELT,PASSENGER,TR | 2 | $44.99 | In stock | |
| 8 | 5346873 | SPACER-25.4X14.6 | 2 | $2.99 | Out of stock Est. Jul 8, 2026 | |
| 9 | 7521025 | SCR-HXFLSH-M12X1.75-M14X35 ZOD | 2 | $34.99 | In stock | |
| 10 | 5455285 | CAP-BOLT HEAD | 1 | $3.99 | In stock | |
| 11 | 2638784 | ASM-SEAT BELT,3PT,CENTER | 1 | $219.99 | In stock | |
| 12 | 2693386-070 | ASM-SEAT,BTM,60,BLK [INCLUDES 13 & 16] | 1 | $174.99 | In stock | |
| 13 | 5910404 | PIN-SEAT LATCH | 2 | $29.99 | In stock | |
| 14 | 5439179 | GROMMET | 2 | $7.99 | In stock | |
| 15 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 12 | $3.99 | In stock | |
| 16 | 5259064 | BRKT-SEAT HINGE | 2 | Price TBD | Out of stock | |
| 17 | 5259065 | BRKT-SEAT HINGE,DOUBLE | 1 | $12.99 | In stock | |
| 18 | 2693430-070 | ASM-SEAT,BTM,40,BLACK [INCLUDES 13 & 16] | 1 | $429.99 | In stock | |
| 19 | 7082134 | CLIP-FIR,HOLE6.35MM | 1 | $4.99 | In stock |
