Schematic diagram
Polaris•Schematic assembly

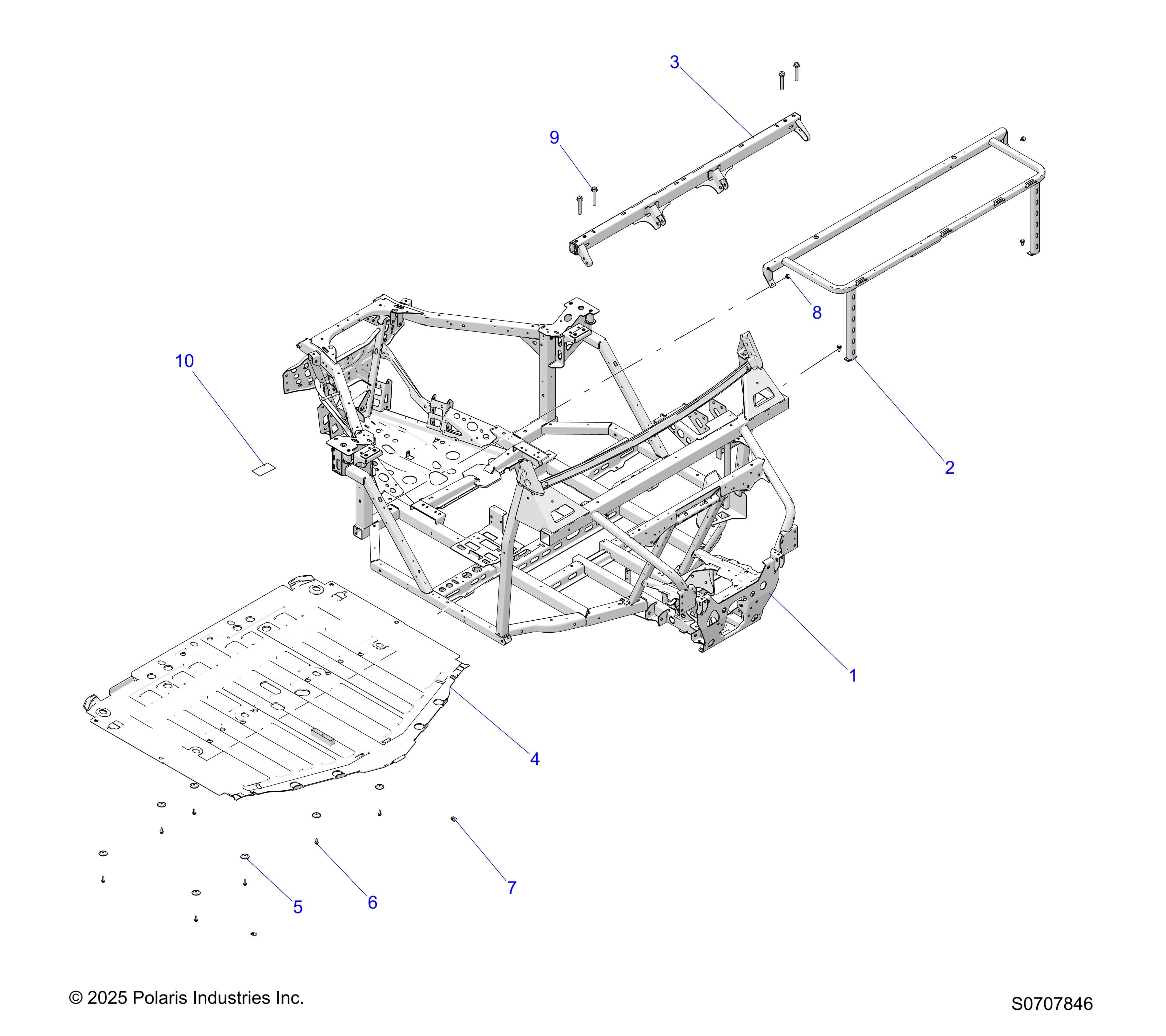

CHASSIS, MAIN FRAME
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250133
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2212937 | K-FRAME,MAIN,RGR 1K,BLK [INCLUDES 10] | 1 | $3,219.99 | In stock | |
| 2 | 1028349-329 | WELD-SEAT BASE,MAIN,ECOAT | 1 | $334.99 | In stock | |
| 3 | 1029162-329 | WELD-CROSSBAR,BLK | 1 | $364.99 | In stock | |
| 4 | 5466815-070 | PLATE-SKID,H,CLOSEOFF PNL,BLK | 1 | $139.99 | In stock | |
| 5 | 7556065 | WASHER-SKID PLATE | 13 | $5.99 | In stock | |
| 6 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 9 | $1.49 | In stock | |
| 7 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | $1.49 | In stock | |
| 8 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 4 | $2.99 | In stock | |
| 9 | 7521334-75 | SCR-HXFL-M12X1.75X75 10.9 ZFB | 4 | $1.99 | In stock | |
| 10 | 7187265 | DECAL-HITCH,2500 LBS | 0 | Price TBD | Out of stock |
