Schematic diagram
Polaris•Schematic assembly

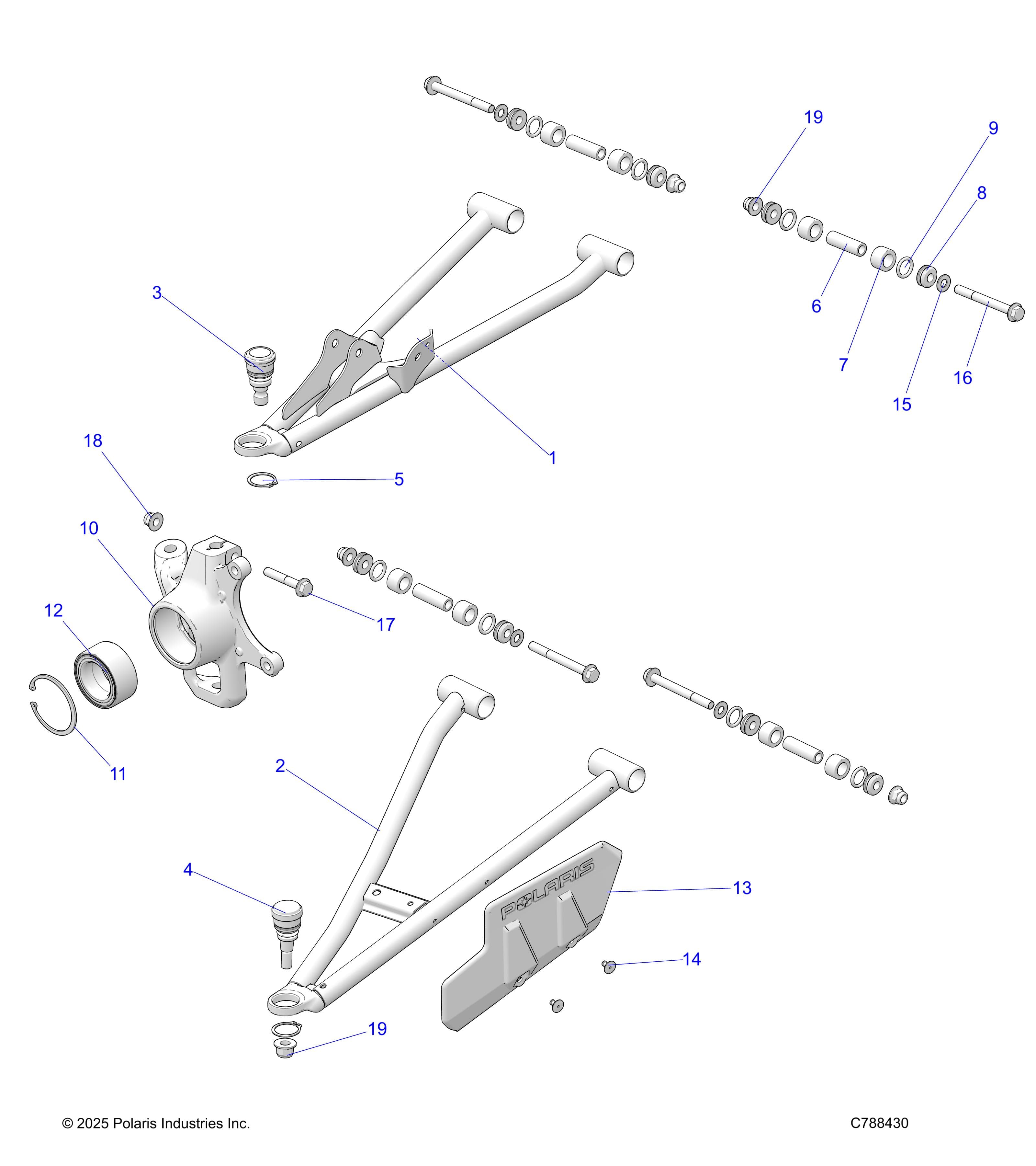

SUSPENSION, A-ARM - R26TAA99A1/B1 (C788430)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250164
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1025698-458 | WELD-A-ARM,FR,UPR,LH,BLK | 1 | $194.99 | In stock | |
| 1 | 1025699-458 | WELD-A-ARM,FR,UPR,RH,BLK | 1 | $194.99 | In stock | |
| 2 | 1025854-458 | WELD-A-ARM,FRT,LWR,LH,M.BLK | 1 | $189.99 | In stock | |
| 2 | 1025855-458 | WELD-A-ARM,FRT,LWR,RH,M.BLK | 1 | $189.99 | In stock | |
| 3 | 7082892 | BALL-JOINT,HARDENED,HI-MISALGN | 1 | $59.99 | In stock | |
| 4 | 7082557 | BALL-JOINT | 1 | $59.99 | In stock | |
| 5 | 7710716 | RING-RTG,DSH-33ST | 1 | $9.99 | In stock | |
| 6 | 5144660 | SHAFT-PIVOT,SHORT,M12 | 4 | $10.99 | In stock | |
| 7 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 8 | $3.99 | In stock | |
| 8 | 1543612 | ASM-PIVOT CAP, SEALED, M12 [INCLUDES 8 & 9] | 8 | $6.99 | In stock | |
| 8 | 5139992 | CAP-PIVOT SEAL,M12 | 8 | $4.99 | In stock | |
| 9 | 5415654 | O-RING,2-213 | 8 | $1.49 | In stock | |
| 10 | 5143401 | CARRIER-BEARING,FRONT,LH | 1 | $139.99 | In stock | |
| 10 | 5143402 | CARRIER-BEARING,FRONT,RH | 1 | $139.99 | In stock | |
| 11 | 7710780 | RING-RETAINING,2.835,INTERNAL | 1 | $11.99 | In stock | |
| 12 | 3514924 | BEARING-BALL,SEALED,44X72X33.1 | 1 | $49.99 | In stock | |
| 12 | 3515090 | BEARING-WHEEL,HD,44X72X33.1MM [HD OPTION] | 1 | $79.99 | In stock | |
| 13 | 5459097-070 | SHIELD, CV, FRONT, LH, BLACK | 1 | $15.99 | In stock | |
| 13 | 5459098-070 | SHIELD, CV, FRONT, RH, BLACK | 1 | $15.99 | In stock | |
| 14 | 7621472 | RIVET 3/16(.063-.250)ST-ST-LF-B | 2 | $1.49 | In stock | |
| 15 | 7556287 | WSHR-13.0X24.0X2.5 ZPC | 4 | $8.99 | In stock | |
| 16 | 7520479 | SCR-HXFL-M12X1.5X105 10.9 ZOD | 4 | $8.99 | In stock | |
| 17 | 7519306 | SCR-HXFL-M10X1.25X60 10.9 ZOD | 1 | $6.99 | In stock | |
| 18 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | $1.99 | In stock | |
| 19 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 5 | $5.99 | In stock |
