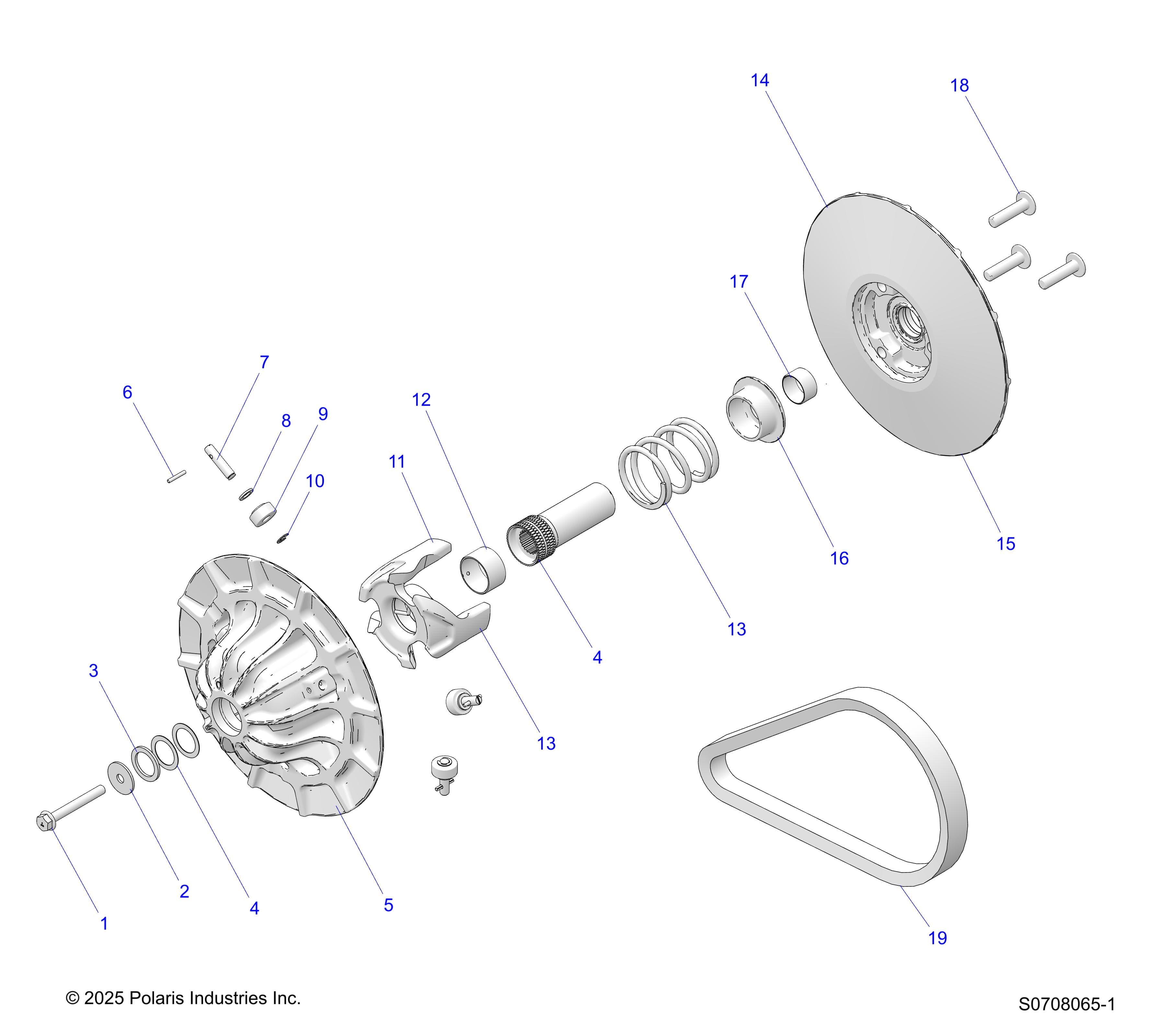

2026 RANGER 1000 NON EPS — DRIVE TRAIN, CLUTCH SECONDARY diagram

Schematic diagram

Polaris•Schematic assembly

DRIVE TRAIN, CLUTCH SECONDARY

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250189

Vehicle Compatibility

  • 2026 Polaris RANGER 1000 NON EPS

Checkout Note

Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
17519212SCR-M8X1.25X65-HX/FL-Y,CL 10.91$5.99
In stock
27556219WSHR-8.4X30. 0X2.0 ZPB1$7.99
In stock
37557178SHIM-RING,23.25X32.25X2.280$3.99
In stock
47557060SHIM-RING,23.25X32.25X0.57$2.99
In stock
51323824ASM-DRVN,STATIONARY,P190X MU [INCLUDES SHEAVES & 6-10]1$384.99
In stock
5-------SHEAVE,STATIONARY,P190X [REFERENCE ONLY]1Price TBD
Out of stock
5-------POST-DRIVEN,20T,P190X [REFERENCE ONLY]1Price TBD
Out of stock
67662333SPRING-PIN-3X20,DIN87523$0.49
In stock
75145858PIN-DRIVEN,ROLLER,8MM3$4.99
In stock
87556211WSHR-8.4X14 .0X1.63$5.99
In stock
95455537ROLLER-8X22X11.25,TORLON3$44.99
In stock
107710466E-CLIP,M6, DIN 67993$3.99
In stock
111323800ASM-HELIX,P190X,36-48/67BA [INCLUDES 11 & 12]1$74.99
In stock
11-------HELIX,P190X,36-48/67BA1Price TBD
Out of stock
123515162BEARING-MU,32X36X201$7.99
In stock
137044761SPRING,DRIVEN1$69.99
In stock
141323798ASM-DRIVEN,MOVEABLE,P190X,CS [INCLUDES 11-18]1$284.99
In stock
151323799ASM-MOVABLE SHEAVE,P190X,CS [INCLUDES 17]1$139.99
In stock
15-------SHEAVE,MOVEABLE,P190X,CS1Price TBD
Out of stock
165633950CUP-DRIVEN SPRING,P190X1$34.99
Out of stock
Est. Jul 21, 2026
173515176BEARING-MU,25X151$29.99
In stock
187520698SCR-TXFLBH-M10X1.25X40 10.9SPC3$5.99
In stock
193211218BELT-DRIVE1$159.99
In stock
