Polaris•Schematic assembly

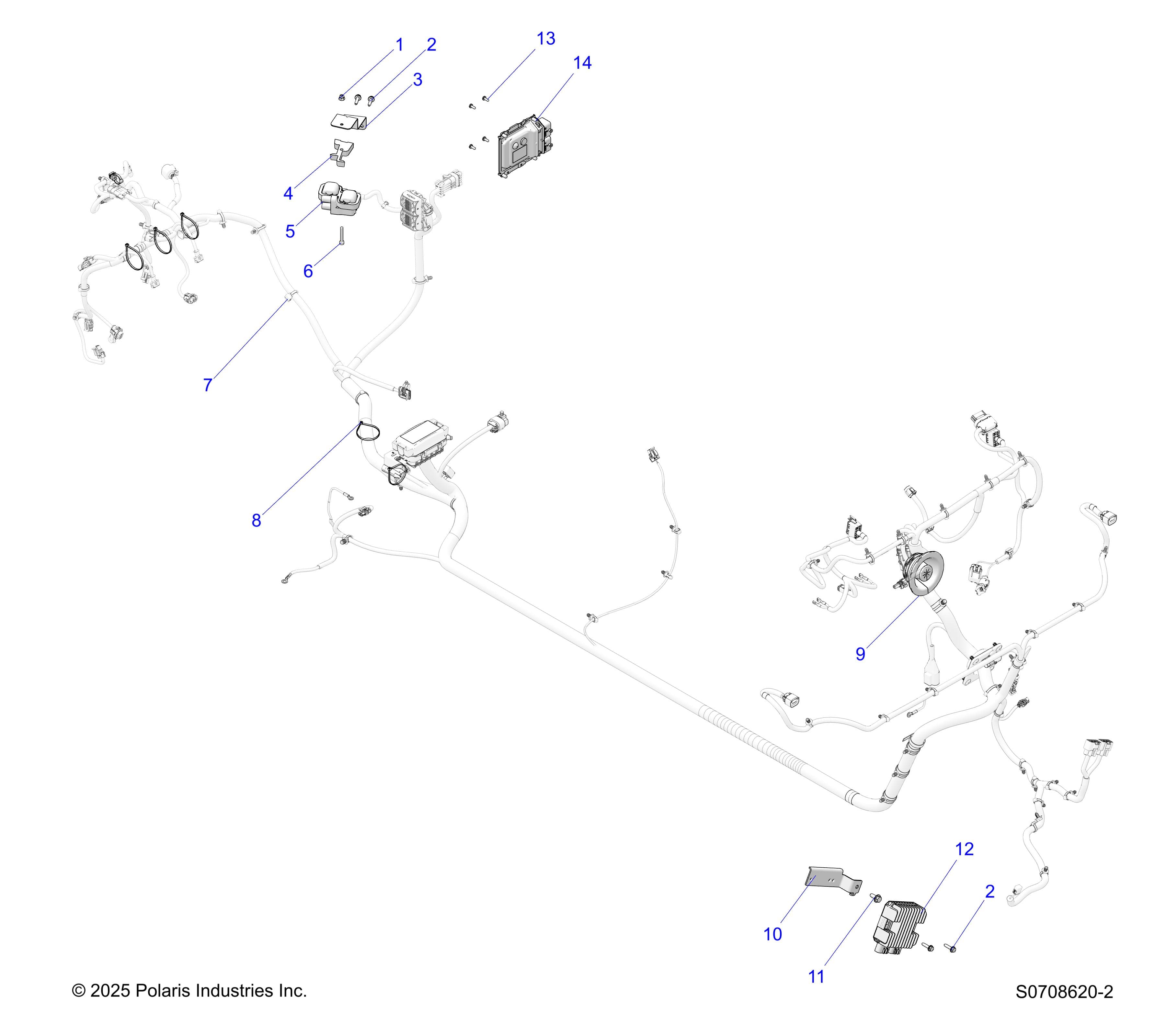

ELECTRICAL, HARNESS COMPONENTS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CREW NON EPS Assembly ID: 250203
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CREW NON EPS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | $1.99 | In stock | |
| 2 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 4 | $4.99 | In stock | |
| 3 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 4 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 5 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 6 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 7 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 2 | $5.99 | In stock | |
| 8 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 4 | $2.99 | In stock | |
| 9 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 10 | 5263643 | BRKT-MOUNT,REG | 1 | $49.99 | In stock | |
| 11 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 3 | $2.99 | In stock | |
| 12 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | $164.99 | In stock | |
| 13 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 14 | 4014125 | ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED] | 1 | $749.99 | Out of stock Est. Jul 24, 2026 |
