Schematic diagram
Polaris•Schematic assembly

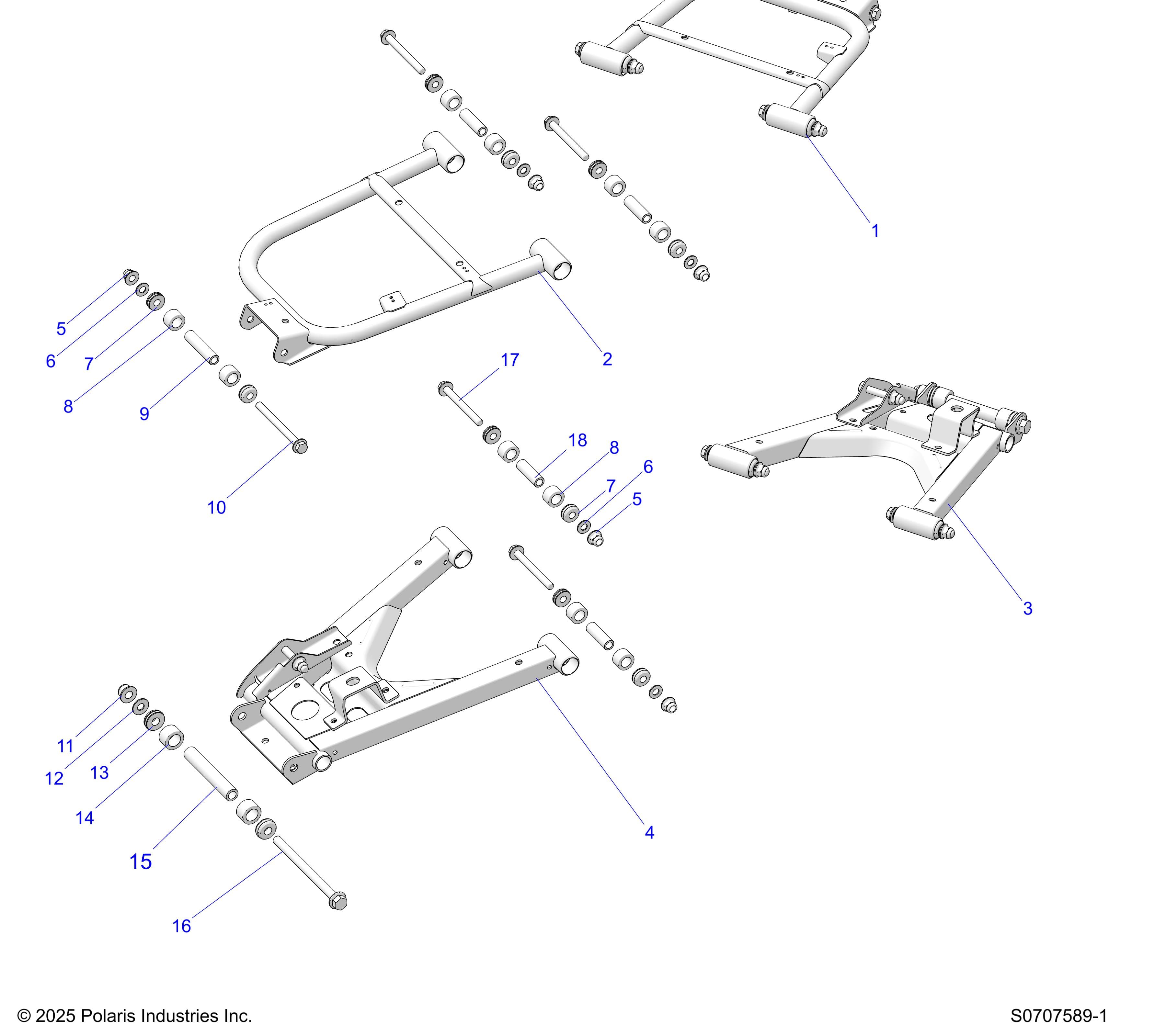

SUSPENSION, REAR CONTROL ARMS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250223
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1022800-458 | WELD-CONTROL ARM, RR, UPR, LH, BLK | 1 | $159.99 | In stock | |
| 2 | 1022801-458 | WELD-CONTROL ARM, RR, UPR, RH, BLK | 1 | $159.99 | In stock | |
| 3 | 1022802-458 | WELD-CONTROL ARM, RR, LWR, LH, BLK | 1 | $194.99 | In stock | |
| 4 | 1022803-458 | WELD-CONTROL ARM, RR, LWR, RH, BLK | 1 | $194.99 | In stock | |
| 5 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 12 | $1.99 | In stock | |
| 6 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 10 | $2.49 | In stock | |
| 7 | 1543611 | ASM-PIVOT CAP, SEALED, M10 | 20 | $6.99 | In stock | |
| 8 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 20 | $2.99 | In stock | |
| 9 | 5139990 | SHAFT-PIVOT, SHORT, M10 | 2 | $6.99 | In stock | |
| 10 | 7519365 | SCR-HXFL-M10X1.25X115 10.9 ZOD | 2 | $16.99 | In stock | |
| 11 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 2 | $5.99 | In stock | |
| 12 | 7556212 | WASHER-7/16 SAE,STF,THRU-HRD-Y | 2 | $10.99 | In stock | |
| 13 | 1543612 | ASM-PIVOT CAP, SEALED, M12 | 4 | $6.99 | In stock | |
| 14 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 4 | $3.99 | In stock | |
| 16 | 7520294 | SCR-HXFL-M12X1.5X170 10.9 ZOD | 2 | $13.99 | In stock | |
| 17 | 7519043 | SCR-HXFL-M10X1.25X95 10.9 ZOD | 8 | $11.99 | In stock | |
| 18 | 5144658 | SHAFT-PIVOT,SHORT,M10 | 8 | $6.99 | Out of stock Est. Nov 26, 2026 |
