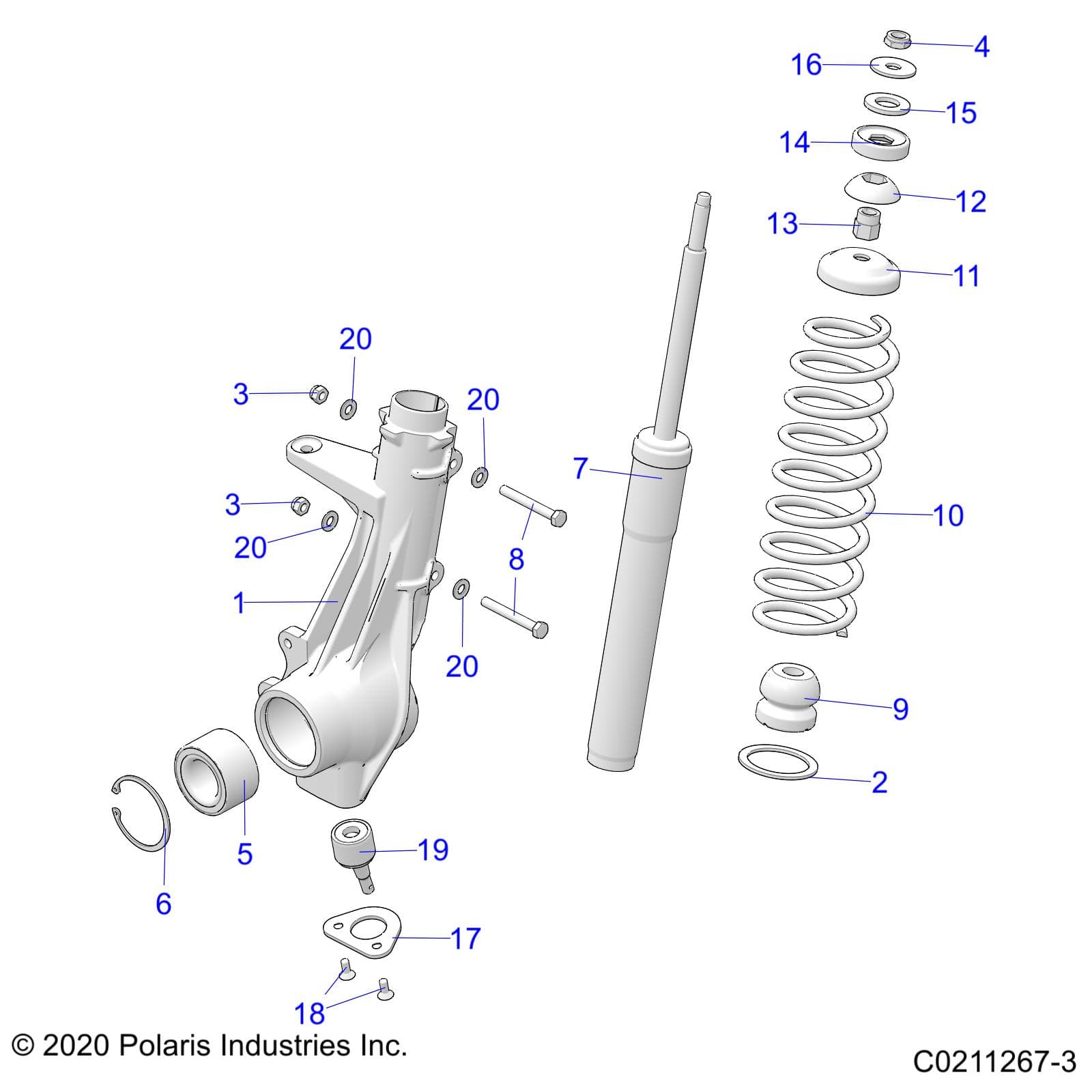

2026 SPORTSMAN 570 — SUSPENSION, FRONT STRUT - A26SEA57A1/A4/A6 (C0211267-3) diagram

Schematic diagram

Polaris•Schematic assembly

SUSPENSION, FRONT STRUT - A26SEA57A1/A4/A6 (C0211267-3)

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 Assembly ID: 250481

Vehicle Compatibility

  • 2026 Polaris SPORTSMAN 570

Checkout Note

Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
15135139SUPPORT-HUBSTRUT,LH,MACH1$269.99
In stock
15135140SUPPORT-HUBSTRUT,RH,MACH1$304.99
In stock
25211115WASHER-2.06X2.62X.105-Y2$4.99
In stock
37542324NUT-5/16-18 NYLOK-Y4$0.99
In stock
47547104NUT-1/2-20 NYLOK,THIN HT-Y2$1.49
In stock
53514634BEARING-WHEEL, 35X64X37MM2$49.99
In stock
53515088BEARING-WHEEL,35X64X37MM HD [OPTIONAL]2$79.99
In stock
67710507RING-RETAINING,2.500 INTERNAL2$2.99
In stock
77041762STRUT-FRONT,18X30MM,184.7MM LT2$154.99
Out of stock
Est. Jul 20, 2026
87512312BOLT(10)4$1.49
In stock
95412665BUMPER-MCU,17.8MM ID2$7.99
In stock
107043247-067SPRING, COMPRESSION, BLACK2$114.99
In stock
115243364RETAINER-SPRING,STRUT2$24.99
In stock
125432871PIVOT-BALL,BOTTOM,DELRIN2$12.99
In stock
135132062SPACER-1/2-20,STRUT2$24.99
In stock
145432872PIVOT-BALL,TOP,DELRIN2$12.99
Out of stock
Est. Aug 7, 2026
155810291SPACER-RUBBER2$4.99
In stock
167555749WSHR-.500X1.50-12GA-Y2$1.49
In stock
175211121BRACKET-BALL JOINT2$39.99
Out of stock
Est. Sep 24, 2026
187512284SCR-1/4-20X5/8 FL HX SOC CP-Y4$1.49
In stock
197061306BALL-JOINT,3/8-24,STRUT1$34.99
In stock
207558402WASHER-.344X.688X.063 FL-Y4$0.99
In stock
