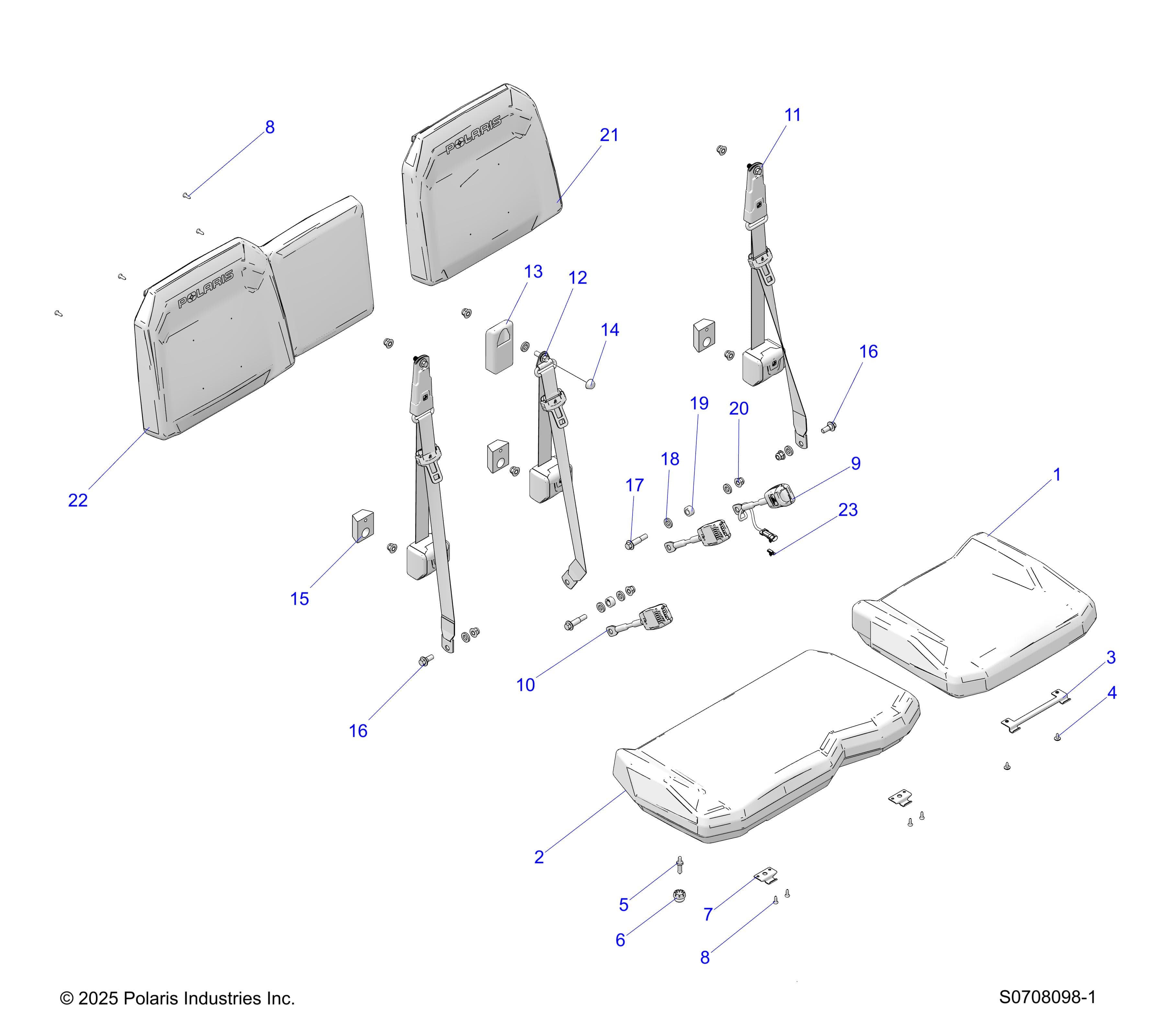

2026 RANGER 1000 CREW EPS — BODY, SEATS FRONT diagram

Schematic diagram

Polaris•Schematic assembly

BODY, SEATS FRONT

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CREW EPS Assembly ID: 250665

Vehicle Compatibility

  • 2026 Polaris RANGER 1000 CREW EPS

Checkout Note

Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
12689495ASM-SEAT,BTM,40,FLIP,BLK/BLK1$314.99
In stock
22689487ASM-SEAT,BTM,60,BLK/BLK [INCLUDES 5 & 7]1$479.99
In stock
35265262-458BRKT-SEAT HINGE,DOUBLE,BLK1$34.99
In stock
47518936SCR-M6X1X16 TR/TX-M2$4.99
In stock
55910404PIN-SEAT LATCH1$29.99
In stock
65439179GROMMET1$7.99
In stock
75259064BRKT-SEAT HINGE2Price TBD
Out of stock
87519045SCR-TX TRUSS-#14X3/4, HI/LO ZBK8$3.99
In stock
92636437BUCKLE-SEATBELT,90,SWITCH,TR1$64.99
Out of stock
Est. Aug 21, 2026
102636438BUCKLE-SEATBELT,PASSENGER,TR2$44.99
In stock
112638785ASM-SEAT BELT,3PT2$309.99
In stock
122638784ASM-SEAT BELT,3PT,CENTER2$219.99
In stock
135416530COVER-SEAT BELT MOUNT1$39.99
In stock
145455285CAP-BOLT HEAD1$3.99
In stock
155814036PAD-REAR,SEAT BASE3$18.99
In stock
167519770SCR-HXFLSH-M12X1.75-M14X9 ZOD2$5.99
In stock
177521025SCR-HXFLSH-M12X1.75-M14X35 ZOD2$34.99
In stock
185813829WASHER-SEATBELT,RUBBER7$1.49
In stock
195346873SPACER-25.4X14.62$2.99
Out of stock
Est. Jul 8, 2026
207548030NUT-HXFL-M12X1.75 8 ZTB NYL10$3.99
In stock
212692952ASM-SEAT,BACK,40,BLK/BLK1$349.99
In stock
222692951ASM-SEAT,BACK,60,BLK/BLK1$419.99
In stock
237082134CLIP-FIR,HOLE6.35MM1$4.99
In stock
