Schematic diagram
Polaris•Schematic assembly

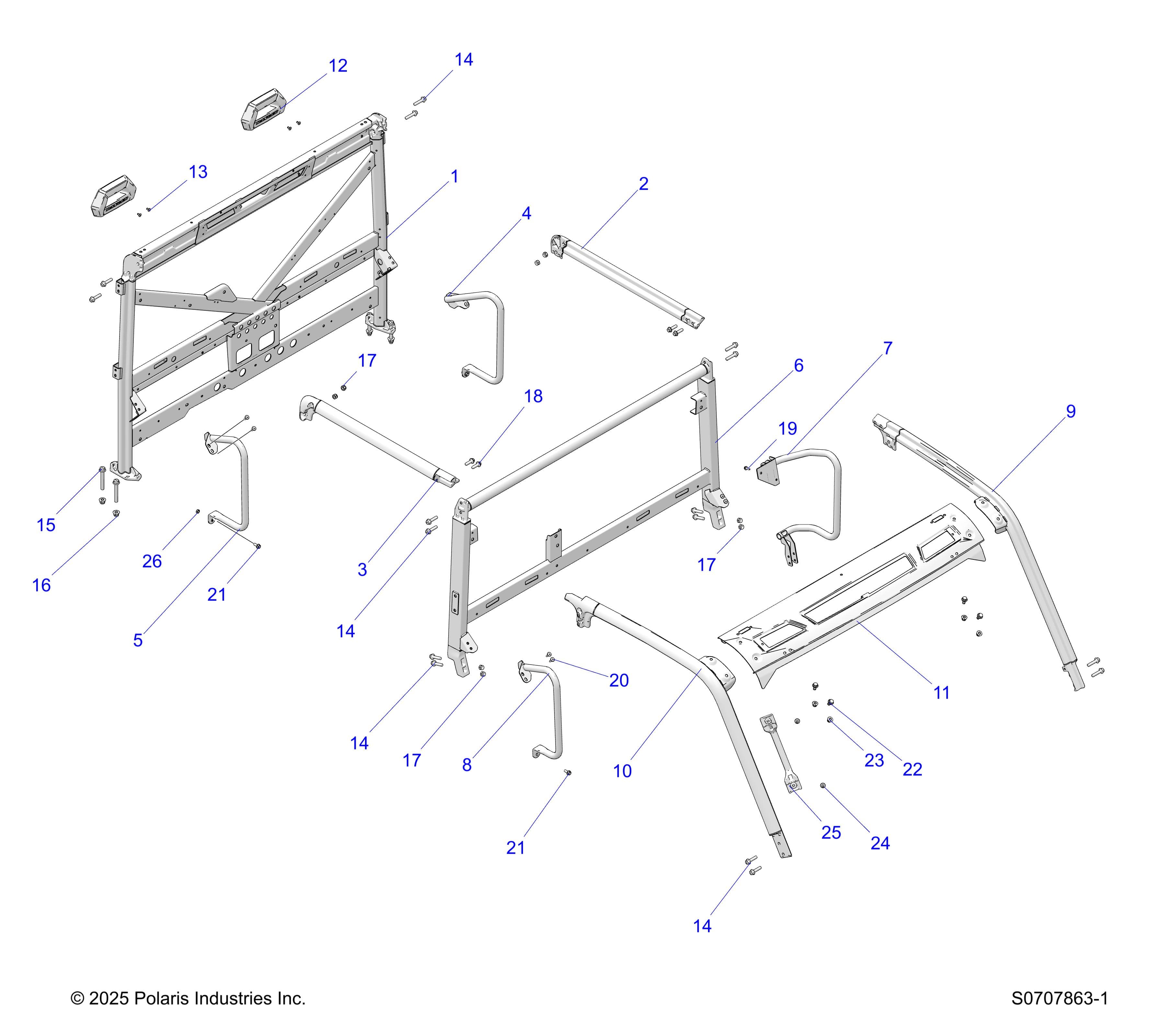

CHASSIS, CAB FRAME
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 CREW EPS Assembly ID: 250672
Vehicle Compatibility
- 2026 Polaris RANGER 1000 CREW EPS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029158-458 | WELD-CAB FRAME,REAR,M.BLK | 1 | $1,299.99 | Out of stock Est. Aug 6, 2026 | |
| 2 | 1023338-458 | WELD-CAB FRAME, REAR, LH, BLK | 1 | $124.99 | In stock | |
| 3 | 1023339-458 | WELD-CAB FRAME, REAR, RH, BLK | 1 | $124.99 | In stock | |
| 4 | 1024803-458 | WELD-BOLSTER,LH, M.BLK | 1 | $84.99 | Out of stock Est. Aug 19, 2026 | |
| 5 | 1024804-458 | WELD-BOLSTER,RH, M.BLK | 1 | $84.99 | In stock | |
| 6 | 1029220-458 | WELD-CAB FRAME,CTR,BLK | 1 | $519.99 | In stock | |
| 7 | 1029531-458 | WELD-BOLSTER,SEAT,M.BLK | 1 | $69.99 | In stock | |
| 8 | 1029255-458 | WELD-BOLSTER,FRONT,RH,M.BLK | 1 | $69.99 | Out of stock Est. Oct 6, 2026 | |
| 9 | 1023336-458 | WELD-CAB FRAME, FRT, LH, BLK | 1 | $409.99 | In stock | |
| 10 | 1023337-458 | WELD-CAB FRAME, FRT, RH, BLK | 1 | $409.99 | In stock | |
| 11 | 2212944 | K-PLATE,WSHLD MNT,UPR,RGR,CREW [INCLUDES DECALS] | 1 | $219.99 | In stock | |
| 12 | 5456311-070 | HEADREST-BASIC,RGR,BLK | 2 | $69.99 | In stock | |
| 13 | 7621460 | RIVET-POP 3/16 (.376-.500) AL-LFB | 4 | $1.49 | In stock | |
| 14 | 7521333-45 | SCR-HXFL-M10X1.5X45 10.9 ZFB | 16 | $3.99 | In stock | |
| 15 | 7521334-90 | SCR-HXFL-M12X1.75X9010.9 ZFB | 4 | $2.99 | Out of stock Est. Jul 20, 2026 | |
| 16 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 4 | $3.99 | In stock | |
| 17 | 7547746 | NUT-HEX-M10X1.5 10 ZB3 NYL | 12 | $2.99 | In stock | |
| 18 | 7518334 | SCREW-M10X1.50X35 HX/FL-Y/D | 4 | $5.99 | In stock | |
| 19 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | $1.49 | In stock | |
| 20 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 8 | $4.99 | In stock | |
| 21 | 7519133 | SCREW-HXFL-M8X1.25X20 8.8 ZOD P3 | 3 | $1.99 | In stock | |
| 22 | 7519905 | SCR-HXFL-M10X1.5X20 10.9 RIE P | 4 | $2.99 | In stock | |
| 23 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | $2.99 | In stock | |
| 24 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | $2.99 | In stock | |
| 25 | 5450844-070 | HANDLE-GRAB,ROPS,BLK | 1 | $39.99 | In stock | |
| 26 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 2 | $2.99 | In stock |
