2026 RANGER 1000 NON EPS — ENGINE, CYLINDER HEAD & VALVES diagram

Schematic diagram

Polaris•Schematic assembly

ENGINE, CYLINDER HEAD & VALVES

Product Description

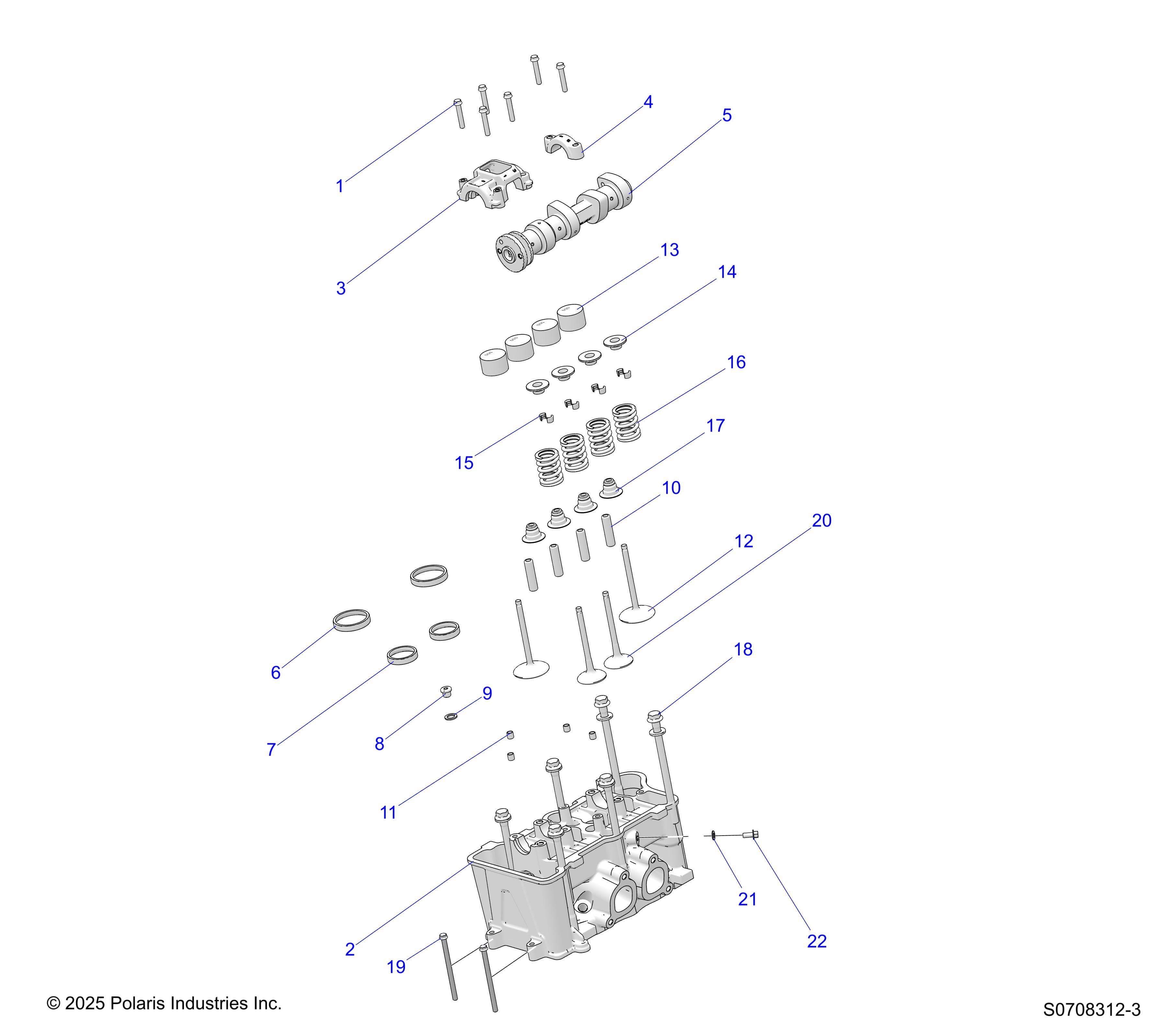

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 250692

Vehicle Compatibility

  • 2026 Polaris RANGER 1000 NON EPS

Checkout Note

Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
17520689SCR-HXFL-M6X1.0X35 10.9 ZY36$9.99
In stock
23023450ASM-HEAD,MACH,SOHC [INCLUDES 2,3 & 6-11]1$1,199.99
In stock
2-------HEAD-CYL,MACH,SOHC [INCLUDED IN CYLINDER HEAD ASSEMBLY]1Price TBD
Out of stock
3-------CARRIER-CAMSHAFT,SOHC [INCLUDED IN CYLINDER HEAD ASSEMBLY]1Price TBD
Out of stock
4-------CARRIER-CAMSHAFT,SOHC,PTO [INCLUDED IN CYLINDER HEAD ASSEMBLY]1Price TBD
Out of stock
51209092ASM-CAMSHAFT,2CYL,SOHC1$154.99
In stock
6-------SEAT-VALVE,INTAKE [INCLUDED IN CYLINDER HEAD ASSEMBLY]2Price TBD
Out of stock
7-------SEAT-VALVE,EXHAUST [INCLUDED IN CYLINDER HEAD ASSEMBLY]2Price TBD
Out of stock
87052718PLUG-M10X1.01$34.99
In stock
97557151WSHR-10.3X16X1.5 CU1$3.99
In stock
10-------GUIDE-VALVE,EXHAUST [INCLUDED IN CYLINDER HEAD ASSEMBLY]4Price TBD
Out of stock
117662355DWL-HOL,M8X84$12.99
In stock
123022703VALVE-INTAKE,47MM2$54.99
In stock
135139458-322TAPPET, VALVE, GRADED, 4.4000$54.99
In stock
135139458-325TAPPET, VALVE, GRADED, 3.2500$54.99
In stock
135139458-328TAPPET, VALVE, GRADED, 3.2750$54.99
In stock
135139458-330TAPPET, VALVE, GRADED, 3.3000$54.99
In stock
135139458-332TAPPET, VALVE, GRADED, 3.3250$54.99
In stock
135139458-335TAPPET, VALVE, GRADED, 3.3500$54.99
In stock
135139458-338TAPPET, VALVE, GRADED, 3.3750$54.99
In stock
135139458-340TAPPET, VALVE, GRADED, 3.4000$54.99
In stock
135139458-342TAPPET, VALVE, GRADED, 3.4250$54.99
In stock
135139458-345TAPPET, VALVE, GRADED, 3.4500$54.99
In stock
135139458-348TAPPET, VALVE, GRADED, 3.4750$54.99
In stock
135139458-350TAPPET, VALVE, GRADED, 3.5000$54.99
In stock
135139458-352TAPPET, VALVE, GRADED, 3.5250$54.99
In stock
135139458-355TAPPET, VALVE, GRADED, 3.5500$54.99
In stock
135139458-358TAPPET, VALVE, GRADED, 3.5750$54.99
In stock
135139458-360TAPPET, VALVE, GRADED, 3.6000$54.99
In stock
135139458-362TAPPET, VALVE, GRADED, 3.6250$54.99
In stock
135139458-365TAPPET, VALVE, GRADED, 3.6500$54.99
In stock
135139458-368TAPPET, VALVE, GRADED, 3.6750$54.99
In stock
135139458-370TAPPET, VALVE, GRADED, 3.7000$54.99
In stock
135139458-372TAPPET, VALVE, GRADED, 3.7250$54.99
In stock
135139458-375TAPPET, VALVE, GRADED, 3.7500$54.99
In stock
135139458-378TAPPET, VALVE, GRADED, 3.7750$54.99
In stock
135139458-380TAPPET, VALVE, GRADED, 3.8000$54.99
In stock
135139458-382TAPPET, VALVE, GRADED, 3.8250$54.99
In stock
135139458-385TAPPET, VALVE, GRADED, 3.8500$54.99
In stock
135139458-388TAPPET, VALVE, GRADED, 3.8750$54.99
In stock
135139458-390TAPPET, VALVE, GRADED, 3.9000$54.99
In stock
135139458-392TAPPET, VALVE, GRADED, 3.9250$54.99
In stock
135139458-395TAPPET, VALVE, GRADED, 3.9500$54.99
In stock
135139458-398TAPPET, VALVE, GRADED, 3.9750$54.99
In stock
135139458-400TAPPET, VALVE, GRADED, 4.0000$54.99
In stock
135139458-402TAPPET, VALVE, GRADED, 4.0250$54.99
Out of stock
Est. Oct 7, 2026
135139458-405TAPPET, VALVE, GRADED, 4.0500$54.99
In stock
135139458-408TAPPET, VALVE, GRADED, 4.0750$54.99
In stock
135139458-410TAPPET, VALVE, GRADED, 4.1000$54.99
In stock
135139458-412TAPPET, VALVE, GRADED, 4.1250$54.99
In stock
135139458-415TAPPET, VALVE, GRADED, 4.1500$54.99
In stock
135139458-418TAPPET, VALVE, GRADED, 4.1750$54.99
In stock
135139458-420TAPPET, VALVE, GRADED, 4.2000$54.99
In stock
135139458-422TAPPET, VALVE, GRADED, 4.2250$54.99
Out of stock
Est. Oct 7, 2026
135139458-425TAPPET, VALVE, GRADED, 4.2500$54.99
In stock
135139458-428TAPPET, VALVE, GRADED, 4.2750$54.99
In stock
145139720RETAINER-VALVE SPRING4$8.99
In stock
153022759KEEPER, VALVE8$4.99
In stock
167046205SPRING-VALVE4$10.99
In stock
173024537SEAT-W/SEAL,VALVE SPRING4$9.99
In stock
187520978SCR-HXFL,M11X1.25X150 10.9 SEM [INCLUDES WASHER]6$29.99
In stock
197519153SCR-HXFLG,M6X1.0X902$6.99
In stock
203022704VALVE-EXHAUST,38MM2$84.99
In stock
217520470SCR-M6X1.0X13,SL/HX/FL-Z,BLEED1$5.99
In stock
227555998WASHER-FLAT,6.15X12X1MM-AL1$1.49
In stock
