Schematic diagram
Polaris•Schematic assembly

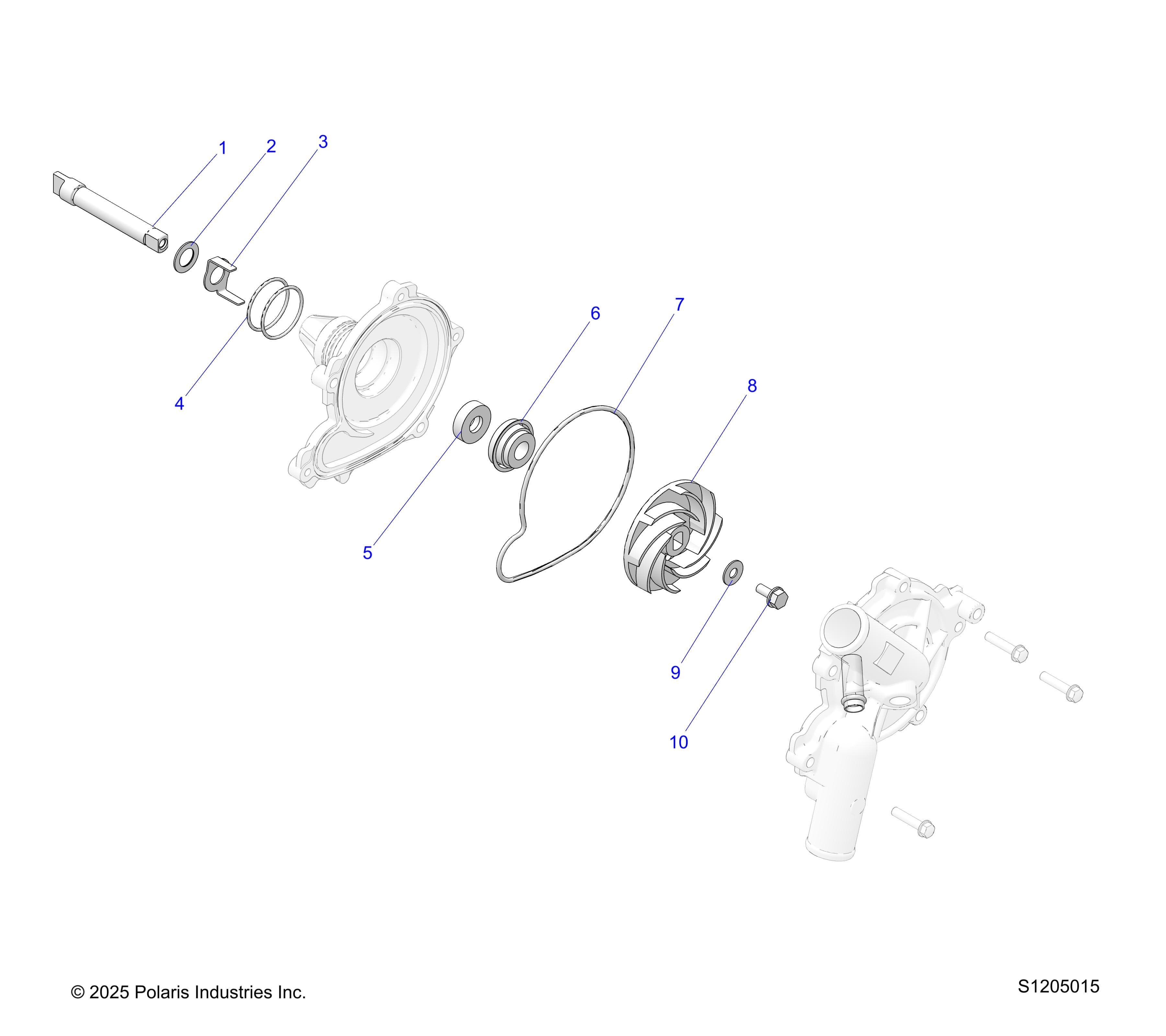

ENGINE, WATERPUMP ASSEMBLY
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 NON EPS Assembly ID: 251860
Vehicle Compatibility
- 2026 Polaris RANGER 1000 NON EPS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1205015 | ASM-WATERPUMP [INCLUDES ALL] | 1 | $244.99 | In stock | |
| 1 | 5140683 | SHAFT-WATERPUMP | 1 | $49.99 | Out of stock Est. Jul 21, 2026 | |
| 2 | 7556980 | WASHER-WATERPUMP | 1 | $6.99 | In stock | |
| 3 | 7556979 | WASHER-CLAWED | 1 | $8.99 | In stock | |
| 4 | 5415946 | O-RING,WATERPUMP | 2 | $1.49 | Out of stock Est. Jul 16, 2026 | |
| 5 | 3610272 | SEAL-WATERPUMP SHAFT,WATER | 1 | $54.99 | In stock | |
| 6 | 3610273 | SEAL-WATERPUMP SHAFT,OIL | 1 | $44.99 | Out of stock Est. Jul 21, 2026 | |
| 7 | 5419115 | GASKET-WATERPUMP COVER | 1 | $9.99 | Out of stock Est. Jul 29, 2026 | |
| 8 | 5633651 | IMPELLER-WATERPUMP | 1 | $44.99 | In stock | |
| 9 | 7556978 | WASHER-IMPELLER | 1 | $3.99 | In stock | |
| 10 | 7520485 | SCREW-WATERPUMP | 1 | $4.99 | In stock |
