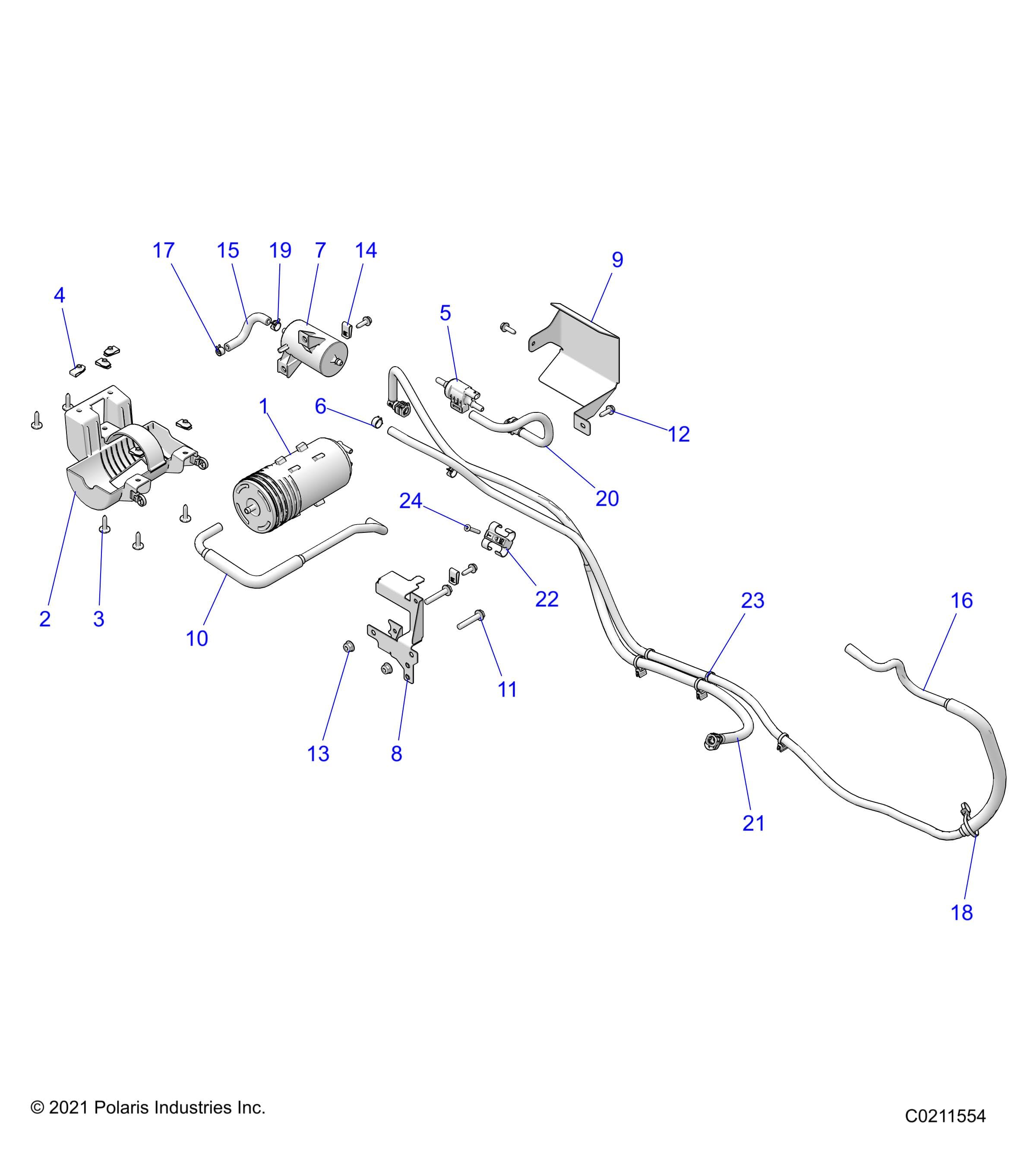

Schematic diagram
Polaris•Schematic assembly
FUEL SYSTEM, FUEL TANK EVAP SYSTEM. - A26SEZ57BB (C0211554)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 EPS PREM 40th Assembly ID: 252491
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 EPS PREM 40th
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2521893 | CANISTER-ACTIVATED CARBON,BFL | 1 | Price TBD | Out of stock | |
| 2 | 5457122-070 | BRKT-MNT CANISTER,BLK | 1 | $54.99 | In stock | |
| 3 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 5 | Price TBD | Out of stock | |
| 4 | 7547366 | CLIP-"U",M6.0X1.0 | 5 | Price TBD | Out of stock | |
| 5 | 2521964 | VALVE-PURGE | 1 | Price TBD | Out of stock | |
| 6 | 7080003 | HOSE CLAMP, RED | 1 | Price TBD | Out of stock | |
| 7 | 2521750 | FILTER-CANISTER VENT | 1 | Price TBD | Out of stock | |
| 8 | 5268313-329 | BRKT-MNT,PRG VLV,FILTER,E COAT | 1 | $64.99 | In stock | |
| 9 | 5268631-329 | COVER,PRG VLV,FILTER,E COAT | 1 | $124.99 | In stock | |
| 10 | 5417156 | HOSE-AIR,FRESH,FUEL VENT | 1 | $89.99 | In stock | |
| 11 | 7518341 | SCREW, HXFL-5/16-18X0.75 GR5 ZY3 | 2 | $5.99 | In stock | |
| 12 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 13 | 7542343 | NUT-5/16-18 HX FLG NL-Y | 2 | Price TBD | Out of stock | |
| 14 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | Price TBD | Out of stock | |
| 15 | 8450040-10 | FUEL LINE-10 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 16 | 2522188 | ASM-LINE,TANK TO CANISTER,1UP [INCL. SLEEVE] | 1 | $174.99 | In stock | |
| 17 | 7080236 | CLAMP-HOSE,(7/16) | 1 | $1.99 | In stock | |
| 18 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 19 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 2 | Price TBD | Out of stock | |
| 20 | 2522190 | ASM-LINE,CANISTER TO PURGE | 1 | $84.99 | In stock | |
| 21 | 2522191 | ASM-LINE,PURGE TO TB [INCL. SLEEVE] | 1 | $144.99 | Out of stock | |
| 22 | 7081689 | T-CLIP, T15 | 1 | $8.99 | In stock | |
| 23 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 7 | Price TBD | Out of stock | |
| 24 | 7512025 | SCR-10-24X1.25TFM PN TRX TRI-Y | 1 | Price TBD | Out of stock |
