Polaris•Schematic assembly

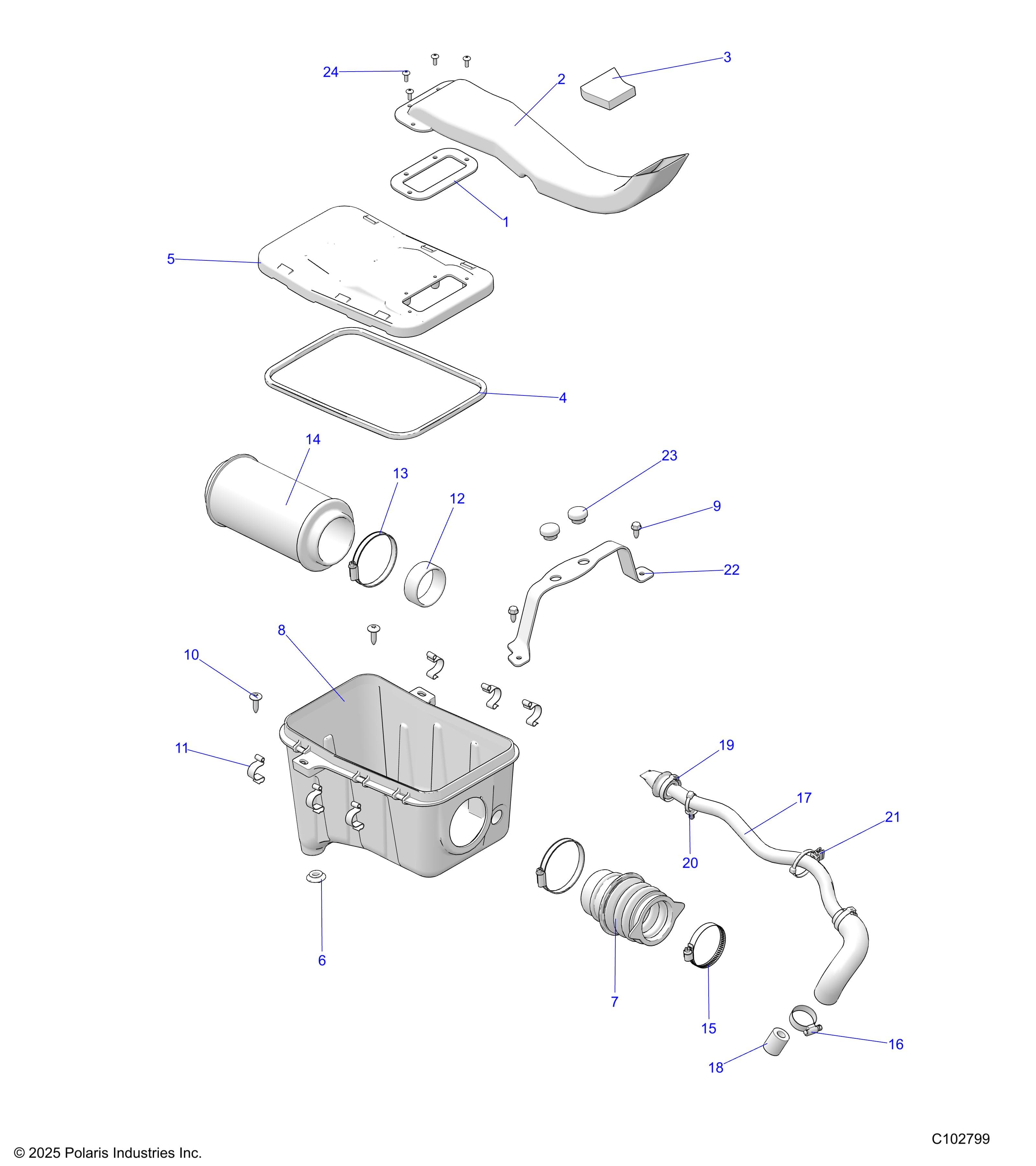

ENGINE, AIR INTAKE SYSTEM - A26SDA57A7 (C102799)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 570 Assembly ID: 252650
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 570
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1244766 | ASM-COVER/DUCT,TOUR [INCL 1-5] | 1 | $139.99 | In stock | |
| 1 | 5411422 | GASKET, INTAKE | 1 | $8.29 | In stock | |
| 2 | 5450580 | DUCT-AIR INLET,TOUR | 1 | $37.99 | In stock | |
| 3 | 5815089 | FOAM,INTAKE,STICK ON | 1 | $8.99 | In stock | |
| 4 | 5813949 | SEAL, AIRBOX COVER | 1 | $34.99 | In stock | |
| 5 | 5459622 | COVER-AIR BOX | 1 | $54.99 | In stock | |
| 6 | 5418084 | PLUG-COMPARTMENT | 1 | Price TBD | Out of stock | |
| 7 | 5414638 | BOOT, INTAKE | 1 | $34.99 | In stock | |
| 8 | 5450387 | BOX, AIR INTAKE | 1 | $169.99 | In stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 11 | 5242044 | CLIP-AIR BOX | 6 | $11.99 | In stock | |
| 12 | 5433847 | SLEEVE, CARBURETOR, INNER | 1 | $17.99 | In stock | |
| 13 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | Price TBD | Out of stock | |
| 14 | 7083107 | FILTER-AIR INTAKE,HD | 1 | $34.99 | In stock | |
| 14 | 7083114 | FILTER-HD AIR INTAKE, 208MM HD OPTION | 1 | $59.99 | Out of stock Est. Jul 27, 2026 | |
| 15 | 7080413 | CLAMP, BAND, NARROW | 1 | Price TBD | Out of stock | |
| 16 | 7081174 | CLAMP-HOSE,13/16"-1 1/2" | 1 | Price TBD | Out of stock | |
| 17 | 2522889 | ASM-CRANK BREATHER,ATV [INCL. HOSE, VALVE, & CLAMP][TO 10/2/2025] | 1 | Price TBD | Out of stock | |
| 17 | 2523082 | ASM-CRANK BREATHER,ATV [INCL. HOSE, VALVE, & CLAMP][FRM 10/2/2025] | 1 | $74.99 | In stock | |
| 18 | 5418611 | BUSHING-BREATHER HOSE [TO 10/2/2025] | 1 | $8.99 | In stock | |
| 19 | ------- | CLAMP-HOSE,OETIKER,25.4-28.6 | 2 | Price TBD | Out of stock | |
| 20 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 21 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 1 | Price TBD | Out of stock | |
| 22 | 5274388-329 | BRKT-SUPPORT,INTAKE DUCT,BLK | 1 | $29.99 | In stock | |
| 23 | 5412067 | BUMPER-RUBBER | 2 | Price TBD | Out of stock | |
| 24 | 7517317 | SCR-#8X1/2,TR/PH,TYPE B-Y | 4 | $3.99 | In stock |
