Polaris•Schematic assembly

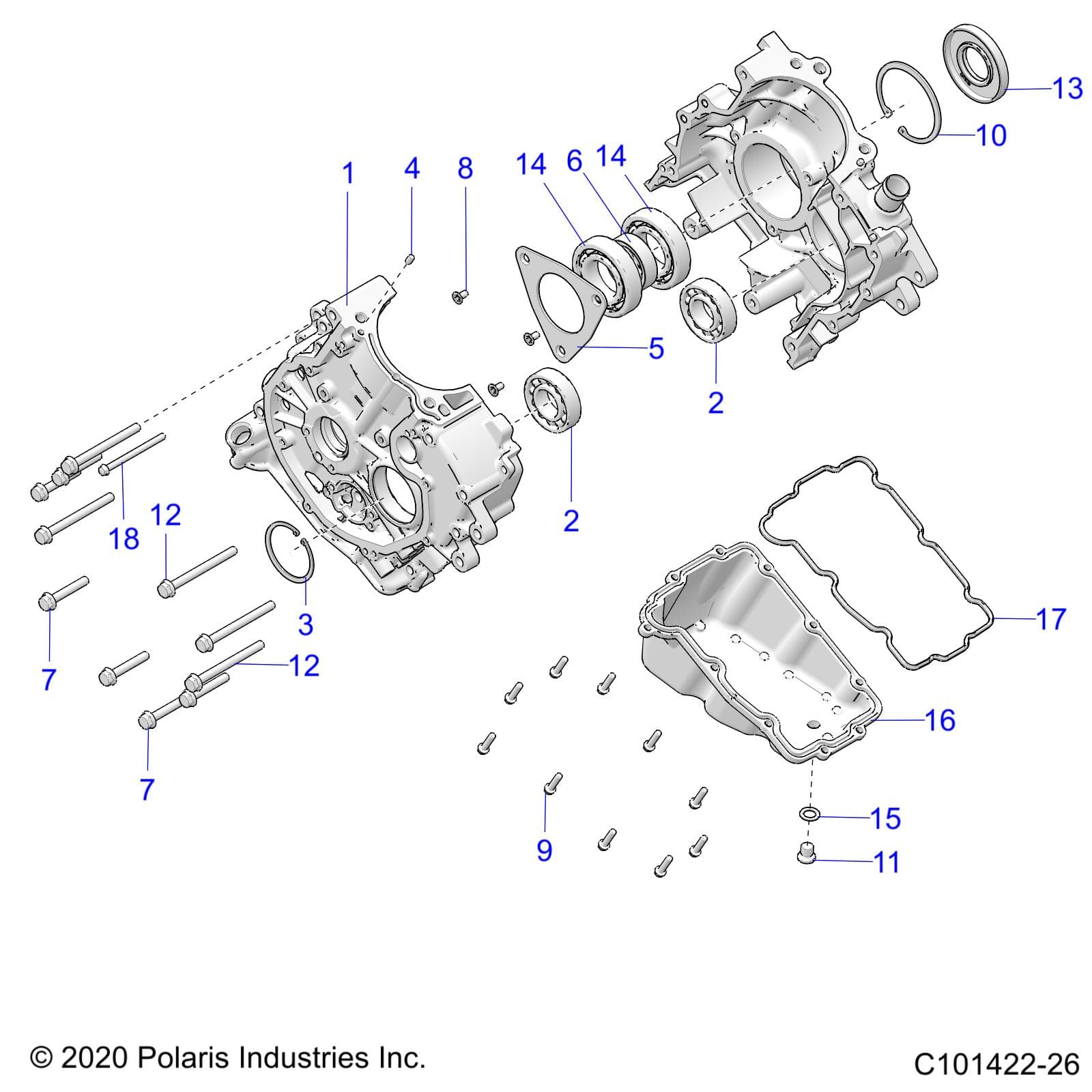

ENGINE, CRANKCASE - A26SDA57A7 (C101422-26)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN TOURING 570 Assembly ID: 252654
Vehicle Compatibility
- 2026 Polaris SPORTSMAN TOURING 570
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2209888 | KIT, CRANKCASE [INCL.7, CASES, BREATHER PIPE] | 1 | $1,249.99 | In stock | |
| 2 | 3515827 | BEARING-BALL,30X62X16 | 2 | $20.99 | Out of stock Est. Sep 14, 2026 | |
| 3 | 7710681 | RING-RTNG,DHO-62 | 1 | $8.99 | In stock | |
| 4 | 5137611 | PIN-DOWEL,M6X10 | 8 | Price TBD | Out of stock | |
| 5 | 5256915 | PLATE-BEARING RETAINER | 1 | $29.99 | In stock | |
| 6 | 5144728 | SPACER-BRG,MACH | 1 | $29.99 | In stock | |
| 7 | 7520105 | SCREW, M8x50 | 6 | $5.99 | In stock | |
| 8 | 7517598 | SCREW-M6X12 TORX DR FH | 3 | $12.99 | In stock | |
| 9 | 7519754 | SCR-HXFLG,M6X1.0X25,10.9 | 10 | Price TBD | Out of stock | |
| 10 | 7710660 | RING-SNAP,80X2.5 | 1 | $4.99 | In stock | |
| 11 | 7052306 | PLUG-SOCKET,M12X1.5 DIN 908A | 1 | Price TBD | Out of stock | |
| 12 | 7520104 | SCREW-M8X1.25X90 | 7 | $6.99 | In stock | |
| 13 | 3610171 | SEAL-CRANKSHAFT | 1 | $59.99 | In stock | |
| 14 | 3515831 | BEARING-BALL 40X80X18 DG NCAGE | 2 | $40.99 | In stock | |
| 15 | 5812232 | WASHER-19X12X1.3,COPPER [TO 8/15/2024] | 1 | Price TBD | Out of stock | |
| 15 | 7556937 | WASHER-COPPER SEALING [FRM 8/15/2024] | 1 | Price TBD | Out of stock | |
| 16 | 5143696 | PAN, OIL | 1 | $124.99 | In stock | |
| 17 | 5414626 | GASKET, OIL PAN | 1 | $14.99 | In stock | |
| 18 | 7520115 | SCREW-HXFLG,M6X1.0X80 | 1 | Price TBD | Out of stock |
