Schematic diagram
Polaris•Schematic assembly

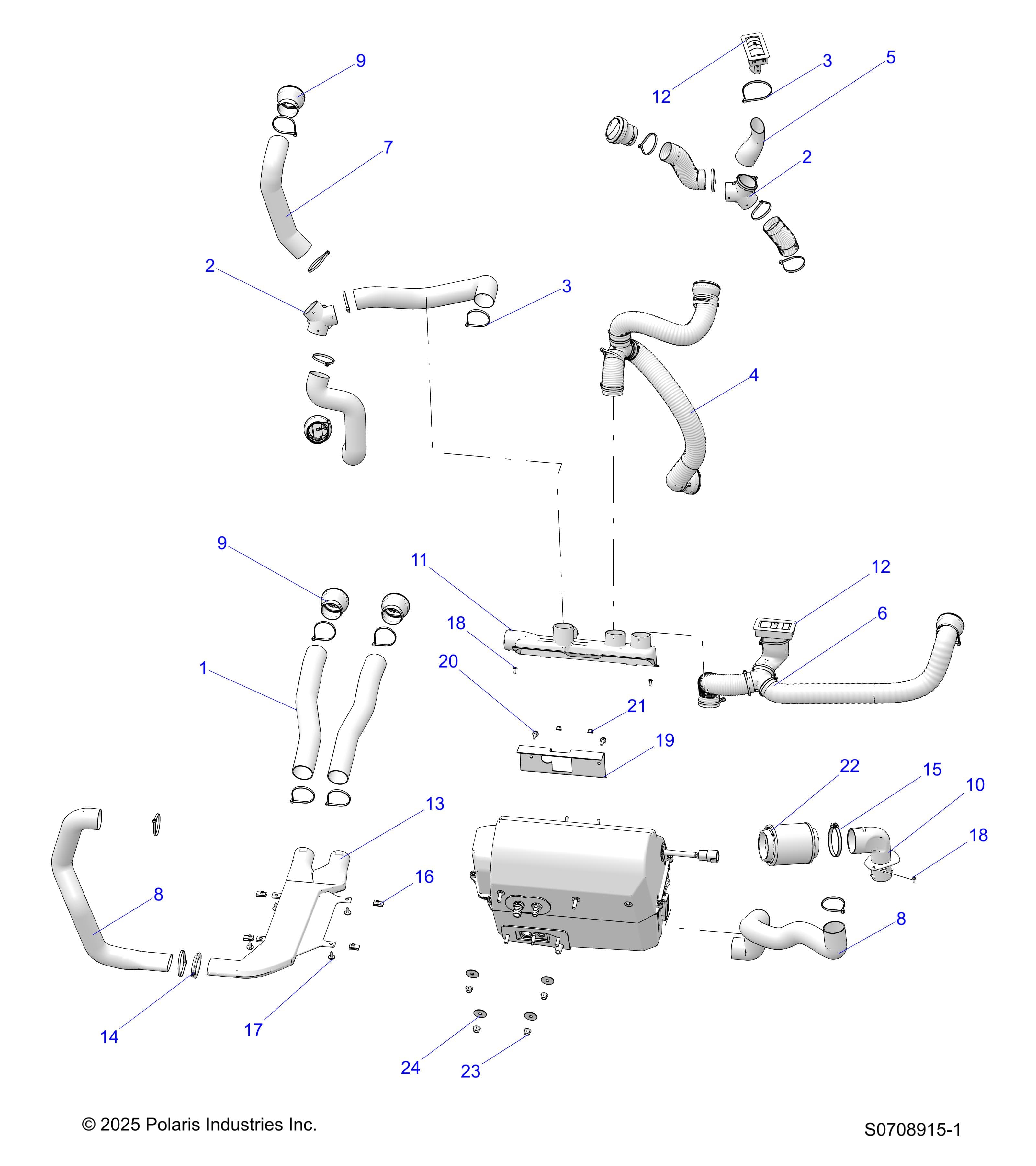

BODY, HVAC DUCTING - FROM 10/01/2025 0708915
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 252688
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2640268 | DUCTING-REAR | 2 | $134.99 | In stock | |
| 2 | 5452894 | DUCT-Y, HOSE, HTR, XORV | 6 | $69.99 | In stock | |
| 3 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 36 | $2.99 | In stock | |
| 4 | 2639738 | ASM-DUCTING,DASH,CENTER,LH | 0 | $119.99 | In stock | |
| 5 | 2639741 | ASM-DUCTING,DASH,CENTER,RH [INCLUDES 1 OF 2 & 3 OF 3] | 1 | $119.99 | In stock | |
| 6 | 2639740 | ASM-DUCTING,DASH,LH [INCLUDES 1 OF 2 & 3 OF 3] | 1 | $169.99 | In stock | |
| 7 | 2640286 | ASM-DUCTING,DASH,RH [INCLUDES 1 OF 2 & 3 OF 3] | 1 | $169.99 | In stock | |
| 8 | 5416208 | HOSE-FRESH AIR | 2 | $44.99 | In stock | |
| 9 | 5452877 | VENT-ROUND | 8 | $39.99 | In stock | |
| 10 | 5453415 | SUPPORT-FILTER | 1 | $34.99 | In stock | |
| 11 | 5466733 | MANIFOLD-AIR DIST,HVAC,CREW | 1 | Price TBD | Out of stock | |
| 12 | 5453900 | VENT-DEFROST | 2 | $44.99 | In stock | |
| 13 | 5466732 | DUCT-HVAC,REAR | 1 | $84.99 | In stock | |
| 14 | 5814697 | GROMMET-REAR HVAC DUCT,BLK | 1 | $8.99 | In stock | |
| 15 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | $3.99 | In stock | |
| 16 | 7081305 | CLIP-U SPEED NUT [TO 09/08/2025] | 4 | $2.49 | In stock | |
| 17 | 7518936 | SCR-M6X1X16 TR/TX-M [TO 09/08/2025] | 4 | $4.99 | In stock | |
| 17 | 7661855 | RIVET-TUFLOK,.315-.325X.787 [FROM 09/08/2025] | 4 | $1.49 | In stock | |
| 18 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 19 | 5263841-329 | BRKT-MOUNT, HVAC UNIT, BLK | 1 | $29.99 | In stock | |
| 20 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock | |
| 21 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 2 | $1.49 | In stock | |
| 22 | 1262218 | ASM-FILTER,AIR BOX | 1 | $29.99 | In stock | |
| 23 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | $4.99 | In stock | |
| 24 | 7558715 | WSHR-FLAT-M8X2.0 LARGE ZTB | 4 | $15.99 | In stock |
