Polaris•Schematic assembly
ENGINE, EXHAUST - A26SHY57AL/AS (C102806)
Product Description

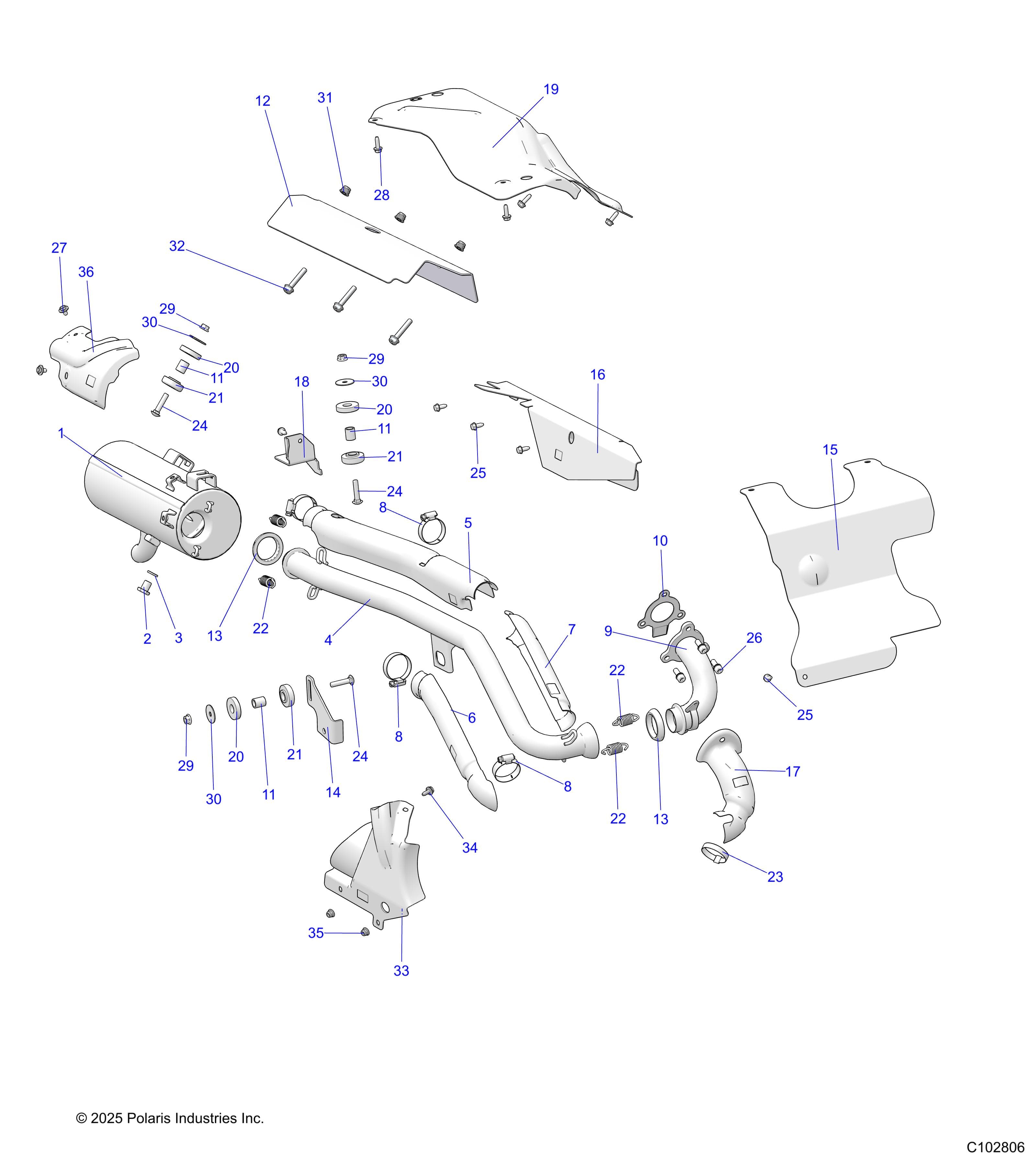

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 EPS TRAIL PACKAGE Assembly ID: 252841
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 EPS TRAIL PACKAGE
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1263784 | WELD-EXHAUST,SILENCER [INCL. 1-3] | 1 | $469.99 | In stock | |
| 2 | 7520756 | BOLT-1/2-20X5/8 HXHDCAP-GR5-P | 1 | $6.99 | In stock | |
| 3 | 7557077 | WASHER-CLEAN OUT .51X75X.09 | 1 | $9.99 | In stock | |
| 4 | 1263475 | ASM-EXHAUST,MID-PIPE [INCL. 4-8] | 1 | $364.99 | In stock | |
| 5 | 5267366 | SHIELD-HEAT,EXHAUST,REAR | 1 | $89.99 | In stock | |
| 6 | 5267367 | SHIELD-HEAT,EXHAUST,MID,OUTER | 1 | $79.99 | In stock | |
| 7 | 5267368 | SHIELD-HEAT,EXHAUST MID,INNER | 1 | $39.99 | In stock | |
| 8 | 7082359 | CLAMP-HOSE, 2.00-SS | 4 | $16.99 | In stock | |
| 9 | 1263476 | WELD-MANIFOLD,570 | 1 | $159.99 | In stock | |
| 10 | 3610360 | SEAL-EXHAUST,MANIFOLD,570 | 1 | $13.99 | In stock | |
| 11 | 5144284 | BUSHING-EXHAUST,15.87 X 21 | 3 | $7.99 | In stock | |
| 12 | 5274891-458 | BRKT-SILENCER,M.BLK | 1 | $39.99 | In stock | |
| 13 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 3 | Price TBD | Out of stock | |
| 14 | 5274539-329 | BRKT-EXHAUST PIPE SUPPORT, BLK | 1 | $24.99 | In stock | |
| 15 | 5267108 | SHIELD-HEAT,FUEL TANK,1UP | 1 | $29.99 | In stock | |
| 16 | 5275620 | SHIELD-HEAT,AIRBOX | 1 | $64.99 | In stock | |
| 17 | 5268871 | SHIELD-HEAT,EXHAUST HEADPIPE | 1 | $59.99 | In stock | |
| 18 | 5269882-329 | BRKT-EXHAUST MOUNT,BLK | 1 | $13.99 | In stock | |
| 19 | 5269956 | SHIELD-FENDER | 1 | $94.99 | In stock | |
| 20 | 5418948 | WSHR-15.4X38.1X7.9 RUBBER | 3 | $4.99 | In stock | |
| 21 | 5418949 | DAMPENER-VIBRATION | 3 | $8.99 | In stock | |
| 22 | 7045211 | SPRING-EXHAUST | 4 | Price TBD | Out of stock | |
| 23 | 7082132 | CLAMP-45.0DX7W,304SS,OETIKER | 1 | $5.99 | In stock | |
| 24 | 7515316 | BOLT-CARR-5/16-18X1 1/2 GR5-Y | 3 | $2.99 | In stock | |
| 25 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 5 | Price TBD | Out of stock | |
| 26 | 7517555 | SCR-M8X1.25X20,HXSOC-CSSPL-SEM | 3 | $10.99 | In stock | |
| 27 | 7520291 | SCR-HHSEMS-M6X1.0X10 A286,LOCK | 2 | Price TBD | Out of stock | |
| 28 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 5 | Price TBD | Out of stock | |
| 29 | 7547623 | NUT-5/16-18,HX,TCHLCK,FLNG,ZNC | 3 | $3.99 | In stock | |
| 30 | 7555716 | WASHER-.328X1.25X16GA, FL-Y | 3 | Price TBD | Out of stock | |
| 31 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 3 | Price TBD | Out of stock | |
| 32 | 7521332-45 | SCR-HXFL-M8X1.25X45 10.9 ZFB | 3 | Price TBD | Out of stock | |
| 33 | 5459928-070 | SHIELD-DEBRIS,FMC, BLK | 1 | $15.99 | In stock | |
| 34 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | Price TBD | Out of stock | |
| 35 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 36 | 5273308 | SHIELD-DEBRIS | 1 | $24.99 | In stock |
