Polaris•Schematic assembly

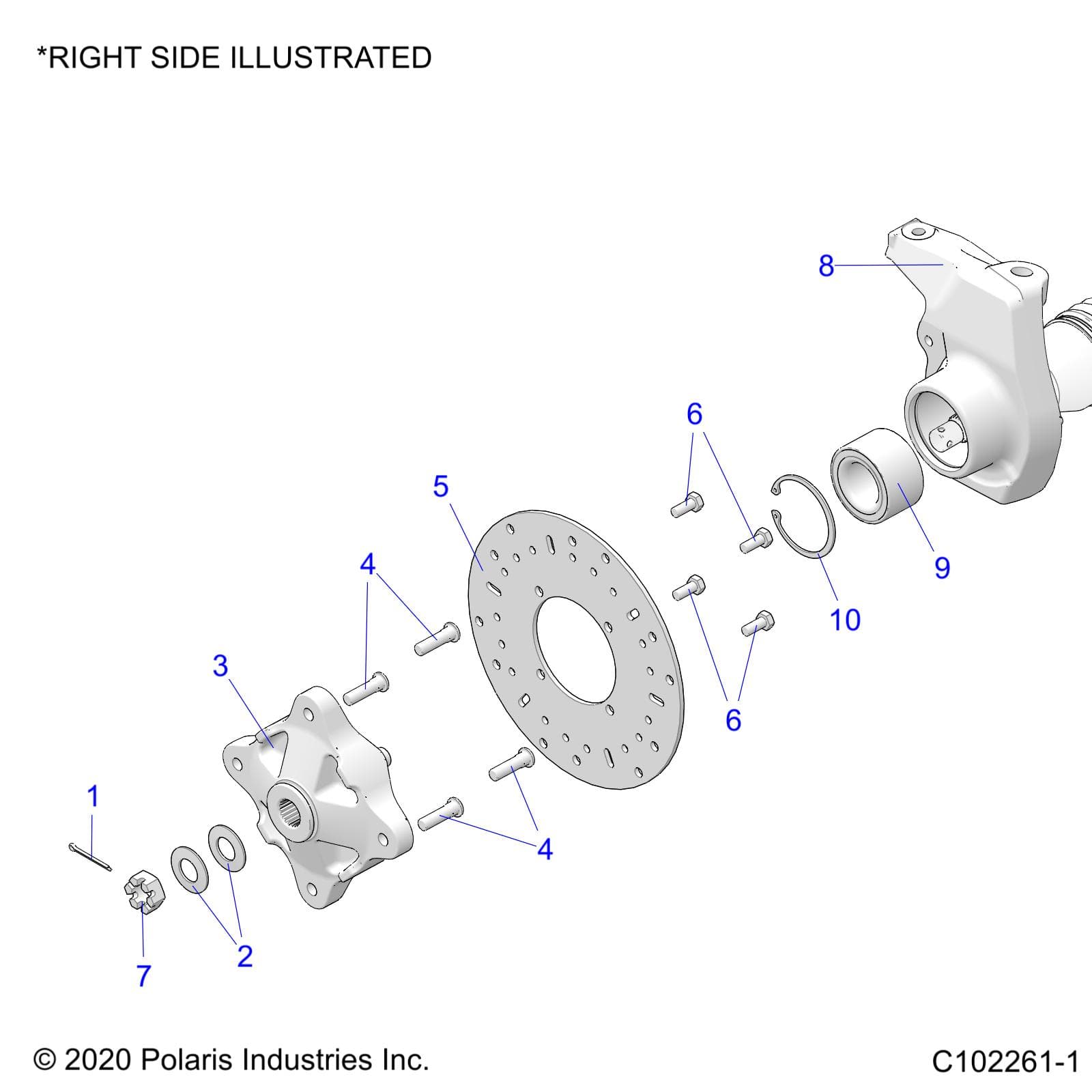

SUSPENSION, FRONT HUB, CARRIER, and BRAKE DISC - A26SHY57AL/AS (C102261-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 EPS TRAIL PACKAGE Assembly ID: 252861
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 EPS TRAIL PACKAGE
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 2 | Price TBD | Out of stock | |
| 2 | 7555796 | WASHER-CONE.755X1.5X.072-.107P | 4 | $9.99 | In stock | |
| 3 | 5143612 | HUB-WHEEL,AWD,MACH | 2 | $104.99 | In stock | |
| 4 | 7518378 | STUD-3/8-24X1.38,PRESS FIT-Z | 8 | $1.99 | In stock | |
| 5 | 5244314 | DISC-BRAKE,8.95 OD,.158 | 2 | $94.99 | In stock | |
| 6 | 7512325 | SCR-HH-5/16-18X0.75 GR5 ZY3 NY | 8 | $2.99 | In stock | |
| 7 | 7547406 | NUT-CASTLE,M18X1.5X13 | 2 | $5.99 | In stock | |
| 8 | 5139686 | KNUCKLE, STEERING, MACH, LH | 1 | $84.99 | In stock | |
| 8 | 5139687 | KNUCKLE, STEERING, MACH, RH [RH][SHOWN] | 1 | $214.99 | In stock | |
| 9 | 3514634 | BEARING-WHEEL, 35X64X37MM | 1 | $49.99 | In stock | |
| 9 | 3515088 | BEARING-WHEEL,35X64X37MM HD [OPTIONAL] | 1 | $79.99 | In stock | |
| 10 | 7710507 | RING-RETAINING,2.500 INTERNAL | 2 | $2.99 | In stock |
