Polaris•Schematic assembly

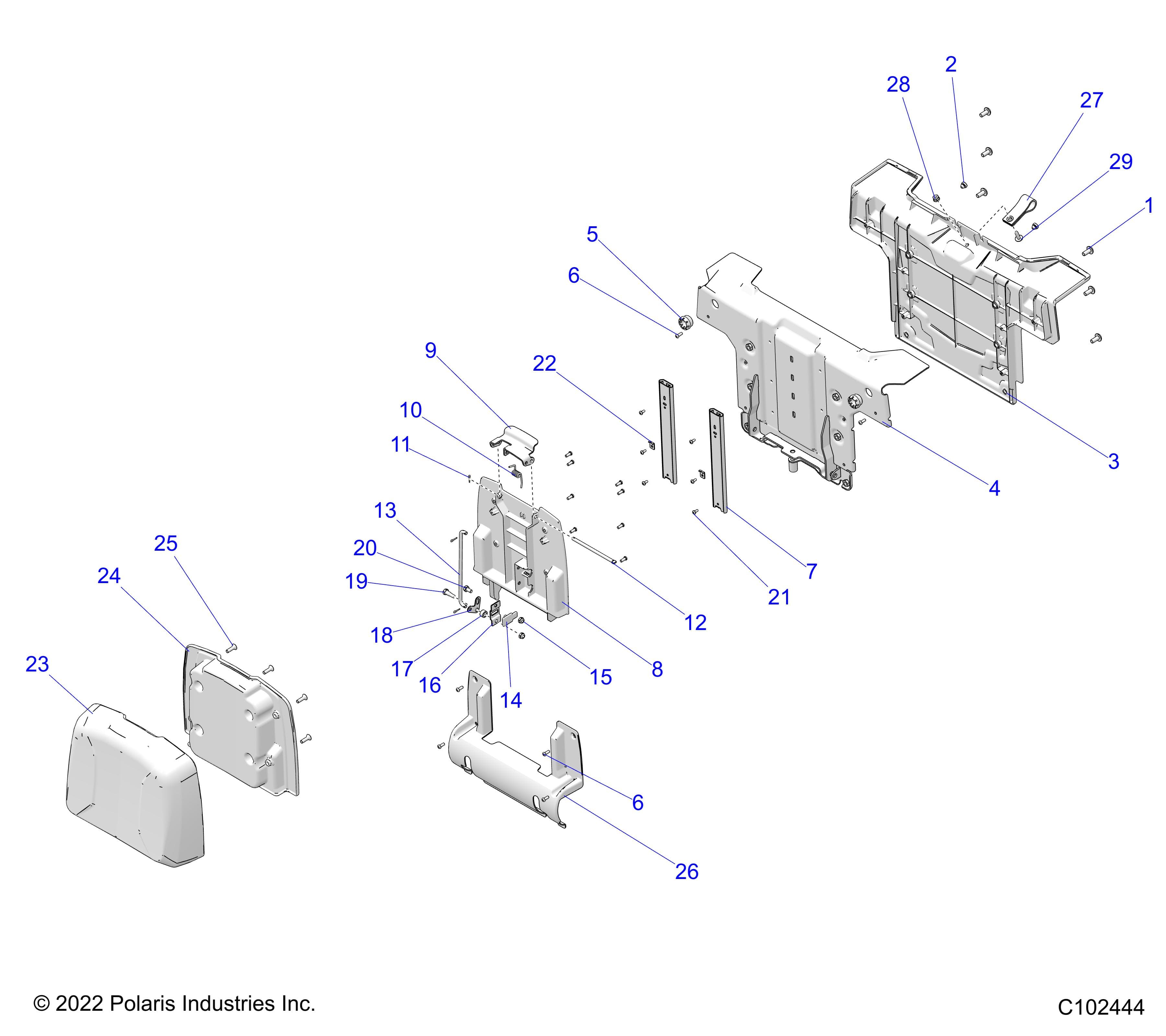

BODY, SEAT, PASSENGER, BACK - A26SWE57AL (C102444)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 X2 EPS Assembly ID: 252991
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 X2 EPS
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7518601 | SCR-5/16-18X3/4 TR/TX-GR5 | 6 | $5.99 | In stock | |
| 2 | 5413087 | BUMPER-RUBBER,1/2" OD | 2 | $2.99 | In stock | |
| 3 | 5436531 | BASE COVER, PASSENGER SEAT | 1 | $69.99 | In stock | |
| 4 | 1015676-067 | SUPPORT, SEAT BACK | 1 | $364.99 | In stock | |
| 5 | 5418181 | GROMMET-SEAT LATCH | 2 | $3.99 | In stock | |
| 6 | 7512076 | SCR-#10X1/2-HI/LO-TRX-Y | 14 | Price TBD | Out of stock | |
| 7 | 7082847 | SLIDE-SINGLE EXTENSION | 2 | $59.99 | In stock | |
| 8 | 5436532 | BASE SLIDER, PASSENGER SEAT | 1 | $69.99 | In stock | |
| 9 | 5250944 | PLATE, HANDLE, SEAT | 1 | $44.99 | In stock | |
| 10 | 7043219 | SPRING-LATCH | 1 | $12.99 | In stock | |
| 11 | 7661010 | PIN, COTTER(10) | 3 | $1.19 | In stock | |
| 12 | 5135336 | ROD-PASSENGER SEAT | 1 | $69.99 | In stock | |
| 13 | 5250162 | ROD-HANDLE,PASS,BACK | 1 | $39.99 | In stock | |
| 14 | 5631980 | LATCH-SLIDER,CAST | 1 | $11.99 | In stock | |
| 15 | 7542122 | NUT-1/4-20-(NYLOK)-Y | 2 | $1.49 | In stock | |
| 16 | 5249903 | PLATE RETAINER SLIDE | 1 | $10.99 | In stock | |
| 17 | 7556373 | SPACER-.34 ID X .56 OD X .31 | 1 | $3.99 | In stock | |
| 18 | 5250163 | PLATE-SLIDER,PIVOT | 1 | $8.99 | In stock | |
| 19 | 7518615 | SCR-SHLDR,5/16X3/8X1/4-20 | 1 | $5.99 | In stock | |
| 20 | 7512102 | SCREW(10) | 1 | $3.99 | In stock | |
| 21 | 7518256 | SCR-#8-32X.375",TORX,TRI-S | 6 | $2.99 | In stock | |
| 22 | 5250454 | BRKT-STOP,SLIDER | 2 | $7.99 | In stock | |
| 23 | 5436149-070 | BUN, SEAT | 1 | $109.99 | In stock | |
| 24 | 5436150 | BASE-SEAT,TREK | 1 | $44.99 | In stock | |
| 25 | 7517652 | SCR-1/4-20X7/8,HX/SOC/FL/HD-Y | 4 | $5.99 | In stock | |
| 26 | 5466035-070 | COVER-LATCH,PASS,BACK,BLK | 1 | $59.99 | In stock | |
| 27 | 5813086 | HANDLE, SEAT | 1 | $39.99 | In stock | |
| 28 | 7542153 | NUT-1/4-20 NYLOC FLANGED-Y | 1 | $1.99 | In stock | |
| 29 | 7517685 | SCR-1/4-20X1.00 TR/TX-M | 1 | $1.99 | In stock |
