Schematic diagram
Polaris•Schematic assembly

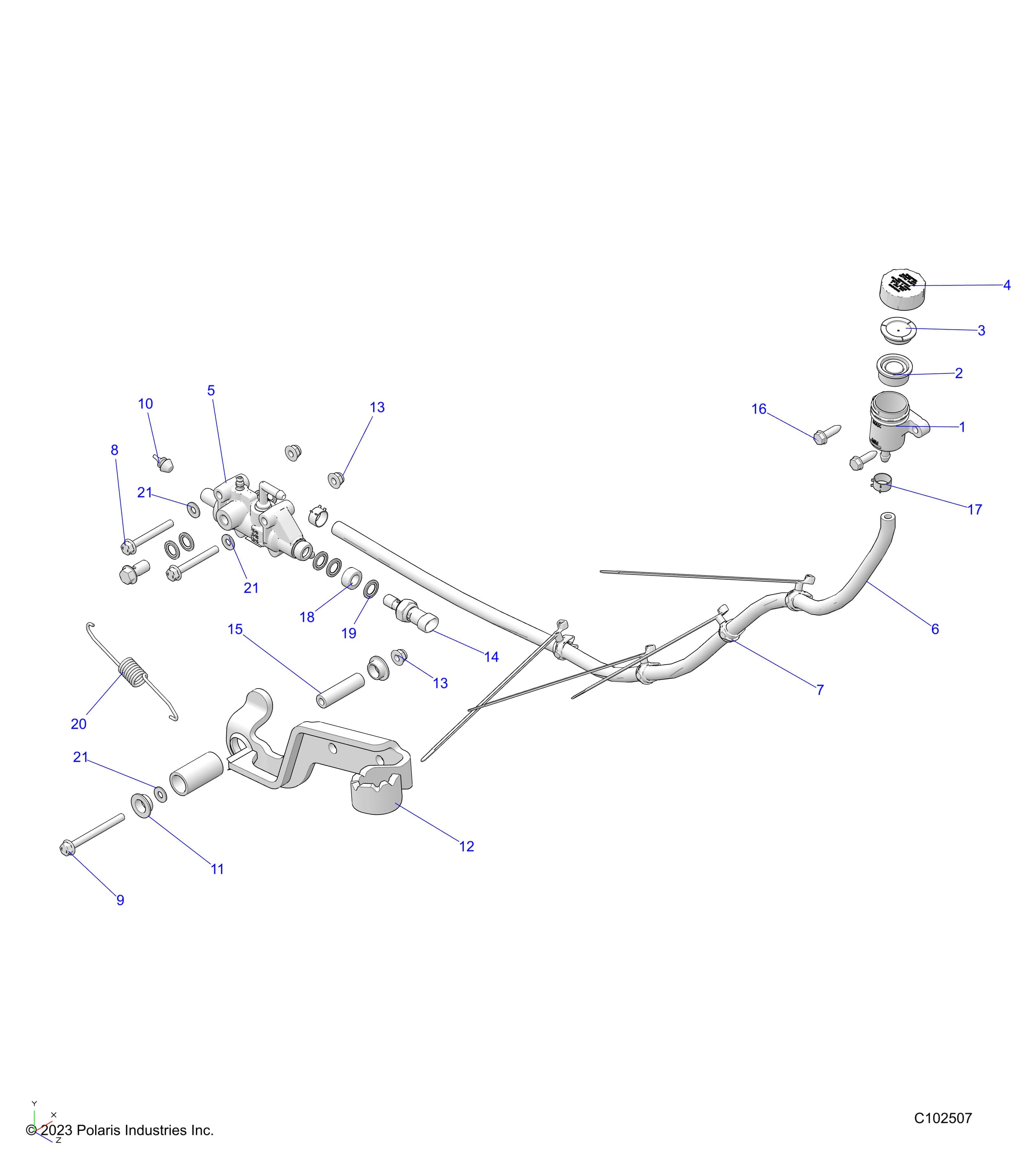

BRAKES, BRAKE PEDAL and MASTER CYLINDER - A26SWE57AL (C102507)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 X2 EPS Assembly ID: 252997
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 X2 EPS
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1911224 | ASM-RESERVOIR,BRAKE,TALL,2-EAR [INCL. 2-4] | 1 | $44.99 | In stock | |
| 1 | 5437040 | CUP-RESERVOIR,BRAKE | 1 | $8.99 | In stock | |
| 2 | 5413262 | DIAPHRAGM, RESERVOIR, BRAKE | 1 | $5.99 | In stock | |
| 3 | 5437041 | RING, RESERVOIR, BRAKE | 1 | $6.99 | In stock | |
| 4 | 5437039 | CAP-RESERVOIR,BRAKE | 1 | $6.99 | In stock | |
| 5 | 1914172 | ASM-DIRMC,3/4,B/U-RING,90DEG [INCL. HOSE, CLAMPS] | 1 | $114.99 | In stock | |
| 6 | 1911267-805 | HOSE-RESERVOIR,BRAKE,805MM | 1 | $13.99 | In stock | |
| 7 | 7082593 | CLIP-MOD OMEGA,1X12MM OD HOSE | 4 | $4.99 | In stock | |
| 8 | 7521331-50 | SCR-HXFL-M6X1.0X50 10.9 ZFB | 2 | $2.99 | In stock | |
| 9 | 7521331-65 | SCR-HXFL-M6X1.0X65 10.9 ZFB | 1 | Price TBD | Out of stock | |
| 10 | 7558203 | WASHER-.250X.563X.047 WRGHT-Y | 3 | Price TBD | Out of stock | |
| 11 | 5439274 | BUSHING-PEDAL PIVOT | 2 | Price TBD | Out of stock | |
| 12 | 1027737-458 | WELD-BRAKE,PEDAL,BLK | 1 | $99.99 | In stock | |
| 13 | 7547453 | NUT-HXFL-M6X1.0 8 ZB3 NYL | 3 | Price TBD | Out of stock | |
| 14 | 4081315 | SWITCH-BRK,M10X1.25,SGL,10-40 [FOR USE W/FOOT MASTER CYLINDER] | 1 | $104.99 | In stock | |
| 15 | 5143138 | SHAFT-PIVOT,BRAKE PEDAL ASM | 1 | Price TBD | Out of stock | |
| 16 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 17 | 7080003 | HOSE CLAMP, RED | 2 | Price TBD | Out of stock | |
| 18 | 5414486 | BUMPER, RUBBER, 13.50 DIA X4.3 THK | 1 | Price TBD | Out of stock | |
| 19 | 5413212 | SEAL-STAT-0-3/8, 70EP | 4 | Price TBD | Out of stock | |
| 20 | 7046090 | SPRING-RETURN,BRK,PEDAL,2.3 | 1 | $10.99 | In stock |
