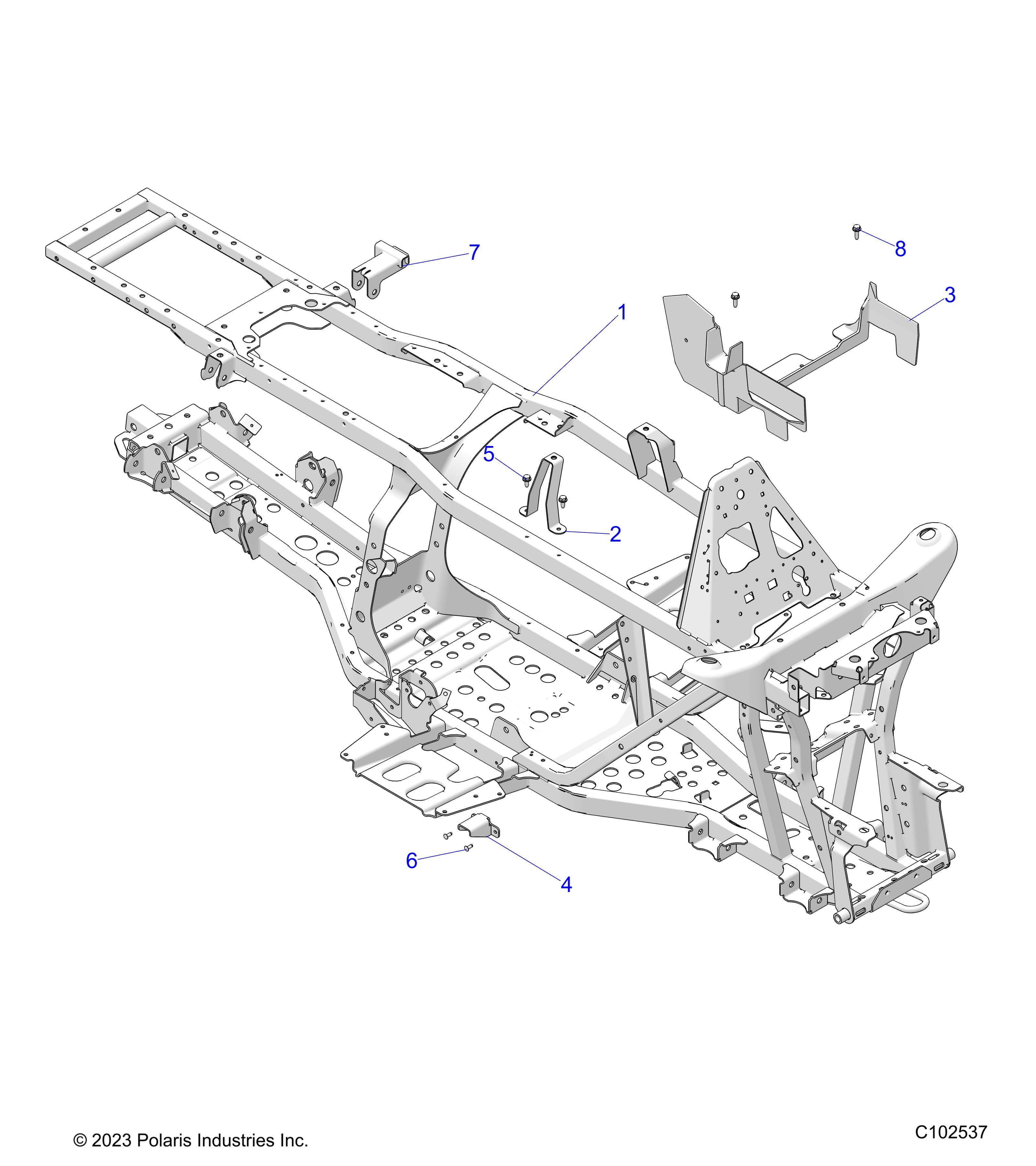

Schematic diagram
Polaris•Schematic assembly
CHASSIS, FRAME - A26SWE57AL (C102537)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 X2 EPS Assembly ID: 253001
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 X2 EPS
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029692-458 | WELD-MAIN FRAME,TRG,STRUT,M.BK | 1 | $2,329.99 | In stock | |
| 2 | 5274276-458 | BRKT-SUPPORT,FUEL TANK,RH,M.BK | 1 | $34.99 | In stock | |
| 3 | 5465255-070 | COVER-CVT,SPLASH,SHLD,STR,BLK | 1 | $16.99 | In stock | |
| 4 | 5274263-458 | BRKT-BRK,SWITCH,PROTECTOR,BLK | 1 | $15.99 | In stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 6 | 7621432 | RIVET-POP 3/16(.126-.250)-ST-B | 2 | Price TBD | Out of stock | |
| 7 | 1027626-458 | WELD-AIR SHOCK MOUNT,X2,M.BLK | 1 | $34.99 | In stock | |
| 8 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock |
