Polaris•Schematic assembly

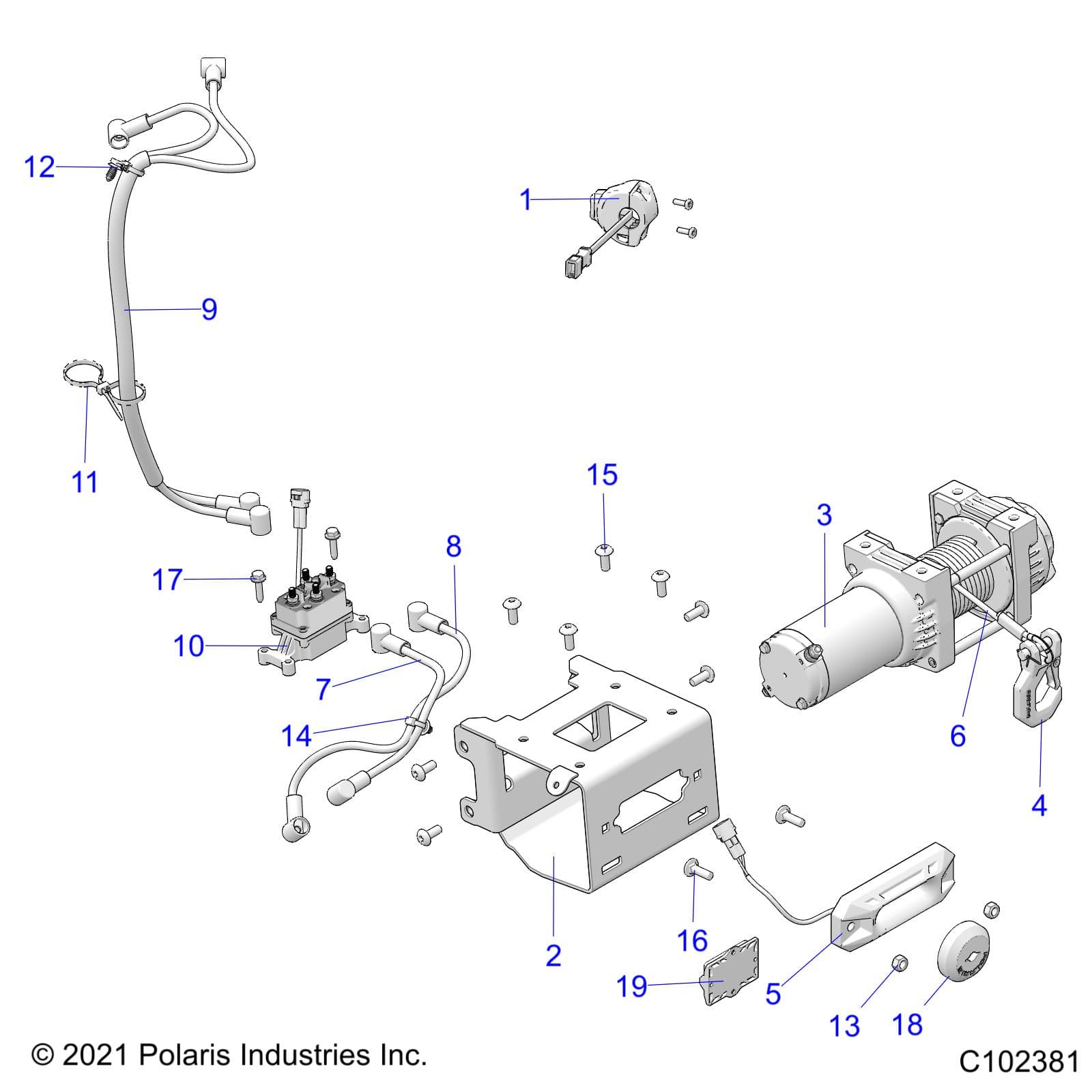

CHASSIS, WINCH - A26SWE57AL (C102381)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 X2 EPS Assembly ID: 253002
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 X2 EPS
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2207175 | K-WINCH SWITCH,HBR,EU,ATV [INCL. HOUSING, SWITCH, & SCREWS] | 1 | $79.99 | In stock | |
| 1 | 4017111 | SWITCH-HBR,EU,ATV | 1 | Price TBD | Out of stock | |
| 1 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 2 | 1025981 | WELD-BRKT,WINCH MOUNT,SAP | 1 | $114.99 | In stock | |
| 3 | 2212694 | WINCH-POL,35HD,TH,T,B+45 [INCL. HANDLE AND MOTOR] | 1 | $364.99 | In stock | |
| 3 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 3 | 2212756 | SVC-WINCH MOTOR,35HDT | 1 | $99.99 | In stock | |
| 3 | 2640493 | ASM-WINCH,35HD,TH,PRD,SAP [INCL. 2-14, 16-17, QTY 4 OF 15] | 1 | Price TBD | Out of stock | |
| 4 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN | 1 | Price TBD | Out of stock | |
| 5 | 2637782 | ASM-FAIRLEAD,HWS,MACH,ULT,NRW | 1 | $44.99 | In stock | |
| 6 | 2878888 | ROPE-WINCH,SYNTHETIC,50' | 1 | $94.99 | In stock | |
| 7 | 4013468-300 | CABLE-WINCH,YELLOW 6 GA,300MM | 1 | $44.99 | In stock | |
| 8 | 4013469-410 | CABLE-WINCH,BLUE 6 GA,410MM | 1 | $29.99 | In stock | |
| 9 | 2415675 | ASM-HARN,POWER,WINCH,SAP | 1 | $84.99 | In stock | |
| 10 | 4015095 | CONTACTOR-WINCH,POL,LIF,CAP | 1 | $109.99 | In stock | |
| 11 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 12 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 13 | 7547144 | NUT-NYLOCK M8X1.25-Y | 2 | Price TBD | Out of stock | |
| 14 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 15 | 7519260 | SCR-TXTH-M8X1.25X20 8.8 ZODP30 | 8 | $7.99 | In stock | |
| 16 | 7519324 | SCR-RHCAR-M8X1.25X25 8.8 ZOD | 2 | $3.99 | In stock | |
| 17 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 18 | 5415787 | STOP-MAGNET,BMPR,V2 | 1 | Price TBD | Out of stock | |
| 19 | 2417688 | ASM-WINCH AUTOSTOP CNTRL,ATV | 1 | $29.99 | In stock |
