Polaris•Schematic assembly

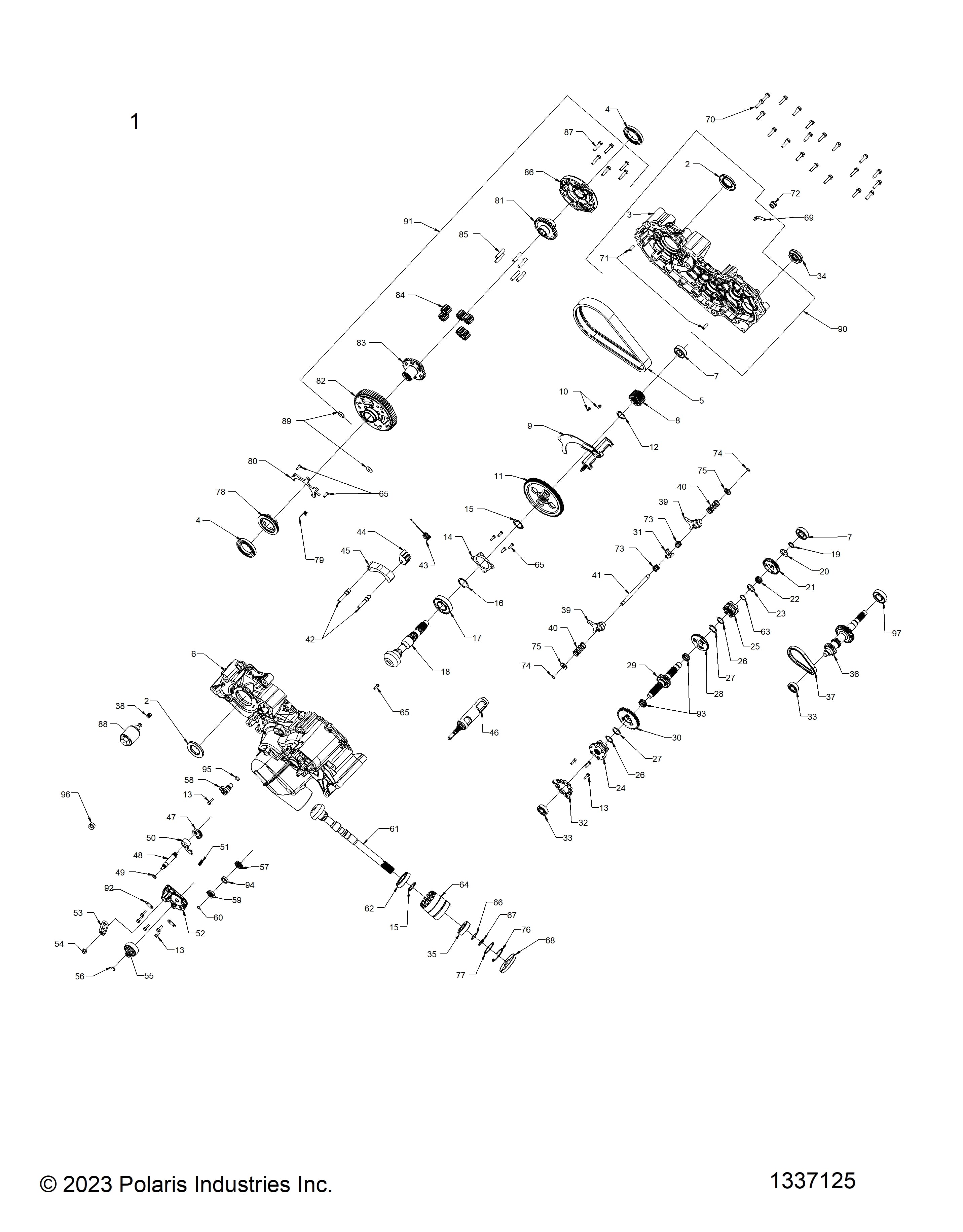

DRIVE TRAIN, MAIN GEARCASE - A26SWE57AL (1337125)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 X2 EPS Assembly ID: 253008
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 X2 EPS
Checkout Note
Please note that 33 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337125 | ASM-TRANS,DIFF,TURF,WO S.S [INCL. ALL] | 1 | $2,199.99 | In stock | |
| 2 | 3234300 | SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315 | 2 | $39.99 | In stock | |
| 3 | 3234260 | COVER, LH MACH | 1 | $539.99 | In stock | |
| 4 | 3234275 | BEARING, BALL 6010 C3 50 X 80 X 10 | 2 | $34.99 | In stock | |
| 5 | 3234057 | CHAIN, SILENT, 17 WIDE X 1.0 X 86p | 1 | $344.99 | In stock | |
| 6 | 3236313 | CASE, RH, MACH | 1 | $639.99 | In stock | |
| 7 | 3233018 | BEARING-BALL,6307 C3,35X80X21 | 2 | $34.99 | In stock | |
| 8 | 3234060 | SPROCKET, 19T, 1.00" | 1 | $299.99 | In stock | |
| 9 | 3234061 | DEFLECTOR, OIL | 1 | $34.99 | In stock | |
| 10 | 3233749 | SCREW, TAPPING TORX, PH 11902 X.50 | 2 | $6.99 | In stock | |
| 11 | 3234062 | GEAR OUTPUT 91T, HRC | 1 | $329.99 | Out of stock Est. Aug 19, 2026 | |
| 12 | 3233699 | RING RETAINING, IRR 7200-118 | 1 | $8.99 | In stock | |
| 13 | 3234247 | SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75 | 9 | $6.99 | In stock | |
| 14 | 3234063 | COVER, BEARING, CENTER DRIVE | 1 | $39.99 | In stock | |
| 15 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 2 | Price TBD | Out of stock | |
| 16 | 3234271 | SHIM, 1.700 X 1.385 | 1 | $29.99 | In stock | |
| 17 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 1 | Price TBD | Out of stock | |
| 18 | 3234263 | PINION, CENTER DRIVE, 13T | 1 | $549.99 | In stock | |
| 19 | 3234067 | RING, RETAINING BASIC, EXTERNAL, .787 SHAFT | 1 | $9.99 | In stock | |
| 20 | 3233176 | WASHER THRUST, 1.270 X 0.793 X 0.065 | 1 | $11.99 | In stock | |
| 21 | 3236032 | GEAR, HELICAL-35T | 1 | $174.99 | In stock | |
| 22 | 3233009 | BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10 | 1 | $49.99 | In stock | |
| 23 | 3233855 | WASHER, 1.250 X 0.876 X 0.05 | 1 | $12.99 | In stock | |
| 24 | 3234257 | ENGAGEMENT DOG, 6-FACE L/P | 1 | $189.99 | In stock | |
| 25 | 3234258 | DOG, ENGAGEMENT, 6 FACE | 1 | $119.99 | In stock | |
| 26 | 3233306 | RING, RETAINING BASIC EXT 0.938 | 2 | $5.99 | In stock | |
| 27 | 3234248 | WASHER, THRUST 1.300 X 0.995 X 0.065 | 2 | $11.99 | In stock | |
| 28 | 3234290 | SPROCKET, 38T, 6 FACE | 1 | $189.99 | In stock | |
| 29 | 3234280 | SHAFT, REVERSE, 26T | 1 | $324.99 | In stock | |
| 30 | 3234291 | GEAR, 33T, 6 FACE | 1 | $214.99 | In stock | |
| 31 | 3234073 | COLLAR-SHIFT | 1 | Price TBD | Out of stock | |
| 32 | 3233915 | PLATE, PARK, 12 FACE | 1 | $49.99 | In stock | |
| 33 | 3234274 | BEARING, BALL 6203 17 X 40 X 12 | 2 | $34.99 | In stock | |
| 34 | 3236141 | SEAL, TRIPLE LIP 32 X 49 X 8 VITON | 1 | Price TBD | Out of stock | |
| 35 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 1 | Price TBD | Out of stock | |
| 36 | 3236761 | SHAFT, INPUT - 43T/15T | 1 | $304.99 | In stock | |
| 37 | 3234264 | SILENT CHAIN, .25P X 0.4 W X 50L | 1 | $124.99 | In stock | |
| 38 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 | Price TBD | Out of stock | |
| 39 | 3234077 | FORK, SHIFT | 2 | $224.99 | In stock | |
| 40 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | Price TBD | Out of stock | |
| 41 | 3234079 | RAIL, SHIFT SHAFT | 1 | Price TBD | Out of stock | |
| 42 | 3233432 | PIN, TENSIONER | 2 | $8.99 | In stock | |
| 43 | 3233431 | SPRING, TORSION | 1 | $29.99 | In stock | |
| 44 | 3233434 | CAM, CHAIN, TENSIONER | 1 | $16.99 | In stock | |
| 45 | 3233433 | SHOE, CHAIN TENSIONER | 1 | $39.99 | In stock | |
| 46 | 3234360 | DRUM, SHIFT MACH | 1 | $224.99 | In stock | |
| 47 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 48 | 3233831 | SHAFT, SHIFT | 1 | $74.99 | In stock | |
| 49 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 50 | 3233829 | PAWL, DETENT | 1 | $44.99 | In stock | |
| 51 | 3234578 | SPRING, COMPRESSION 0.36 O.D. X 1.125 | 1 | Price TBD | Out of stock | |
| 52 | 3234188 | COVER, SECTOR GEARS, MACHINED | 1 | $139.99 | In stock | |
| 53 | 3234584 | BELLCRANK, .510 HOLE, 92 ~ | 1 | $34.99 | In stock | |
| 54 | 3233961 | NUT, LOCK, HEX FLANGE NYLON 5/16-24 | 1 | $3.49 | Out of stock Est. Aug 21, 2026 | |
| 55 | 7661999 | SWITCH, ROTARY , 2 PIN RESISTIVE | 1 | $144.99 | In stock | |
| 56 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 57 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 58 | 4013908 | SENSOR-SPEED,TRANS | 1 | Price TBD | Out of stock | |
| 59 | 3233909 | STAR, DETENT | 1 | $34.99 | In stock | |
| 60 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 61 | 3234262 | GEAR, 13T SNORKEL, | 1 | $409.99 | In stock | |
| 62 | 3233265 | BEARING-BALL 6007 C3 35 X 62 X 14 | 1 | $49.99 | In stock | |
| 63 | 3234336 | RING, RETAINING, BASIC EXTERNAL DIA 0.84 | 1 | $6.99 | In stock | |
| 64 | 3234278 | TUBE, SNORKEL MACHINED | 1 | Price TBD | Out of stock | |
| 65 | 3234086 | SCREW, TORX TRUSS HD 43834 X 0.75 | 7 | $6.99 | In stock | |
| 66 | 3234272 | SHIM, 1.180 OD X 0.995 ID | 1 | Price TBD | Out of stock | |
| 67 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 68 | 3234113 | SEAL, TRIPLE LIP VITON 25 X 80 X 10 | 1 | Price TBD | Out of stock | |
| 69 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 70 | 3234114 | SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25 | 20 | $8.99 | In stock | |
| 71 | 3234244 | PIN, DOWEL 5/16 X 1.0 | 2 | $8.99 | In stock | |
| 72 | 3233794 | PLUG, 3/4-16, 41775 INTERNAL HEX | 1 | $18.99 | In stock | |
| 73 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | Price TBD | Out of stock | |
| 74 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 2 | Price TBD | Out of stock | |
| 75 | 3234091 | WASHER-CUP | 2 | Price TBD | Out of stock | |
| 76 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 77 | 3234273 | SHIM, 2.040 OD X 1.63 ID | 1 | Price TBD | Out of stock | |
| 78 | 3234928 | DOG, ENGAGEMENT, 6-FACE | 1 | $89.99 | In stock | |
| 79 | 3234276 | SPRING, TORSION, RETURN | 1 | Price TBD | Out of stock | |
| 80 | 3234285 | FORK, PIVOT SHIFT, REAR DIFF | 1 | $79.99 | In stock | |
| 81 | 3234363 | SIDE, GEAR 36T, SUBASSEMBLY | 1 | $289.99 | In stock | |
| 82 | 3234470 | Carrier, Subassembly | 1 | $339.99 | In stock | |
| 83 | 3234362 | SIDE, GEAR 36T DISCONNECT, SUBASSEMBLY | 1 | $374.99 | In stock | |
| 84 | 3234469 | GEAR SUBASSEMBLY | 6 | $89.99 | In stock | |
| 85 | 3234238 | PIN, DOWEL 10 X 45 | 6 | $16.99 | In stock | |
| 86 | 3234471 | Cover, Subassembly | 1 | $269.99 | In stock | |
| 87 | 3234267 | SCREW, CAP HH 5/16-24 X 1.50 | 6 | $8.99 | In stock | |
| 88 | 3235478 | SOLENOID | 1 | Price TBD | Out of stock | |
| 89 | 3234268 | WASHER, FENDER, .281 X 1.00 X 0.047 | 2 | $8.99 | In stock | |
| 90 | 3239505 | SUBASSEMBLY, PDS APACHE LH COVER TURF MODE | 1 | $549.99 | In stock | |
| 91 | 3235594 | CARRIER SUBASSEMBLY LOCKING DIFFERENTIAL 1 INCH PDS | 1 | $549.99 | In stock | |
| 92 | 3235350 | BRACKET, WIRE HARNESS | 2 | Price TBD | Out of stock | |
| 93 | 3233103 | BEARING, NEEDLE 25 X 29 X 10 | 2 | $39.99 | In stock | |
| 94 | 3235243 | Disc, Lockout | 1 | $11.99 | In stock | |
| 95 | 3233840 | O-RING, -113 VITON | 1 | Price TBD | Out of stock | |
| 96 | 3234529 | MAGNETIC PLUG, 3/4-16 INTERNAL HEX | 1 | Price TBD | Out of stock | |
| 97 | 3236118 | BEARING, BALL 62/32 | 1 | Price TBD | Out of stock |
