DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z26NES99A4/B4/A6/B6 (1337280)
Product Description

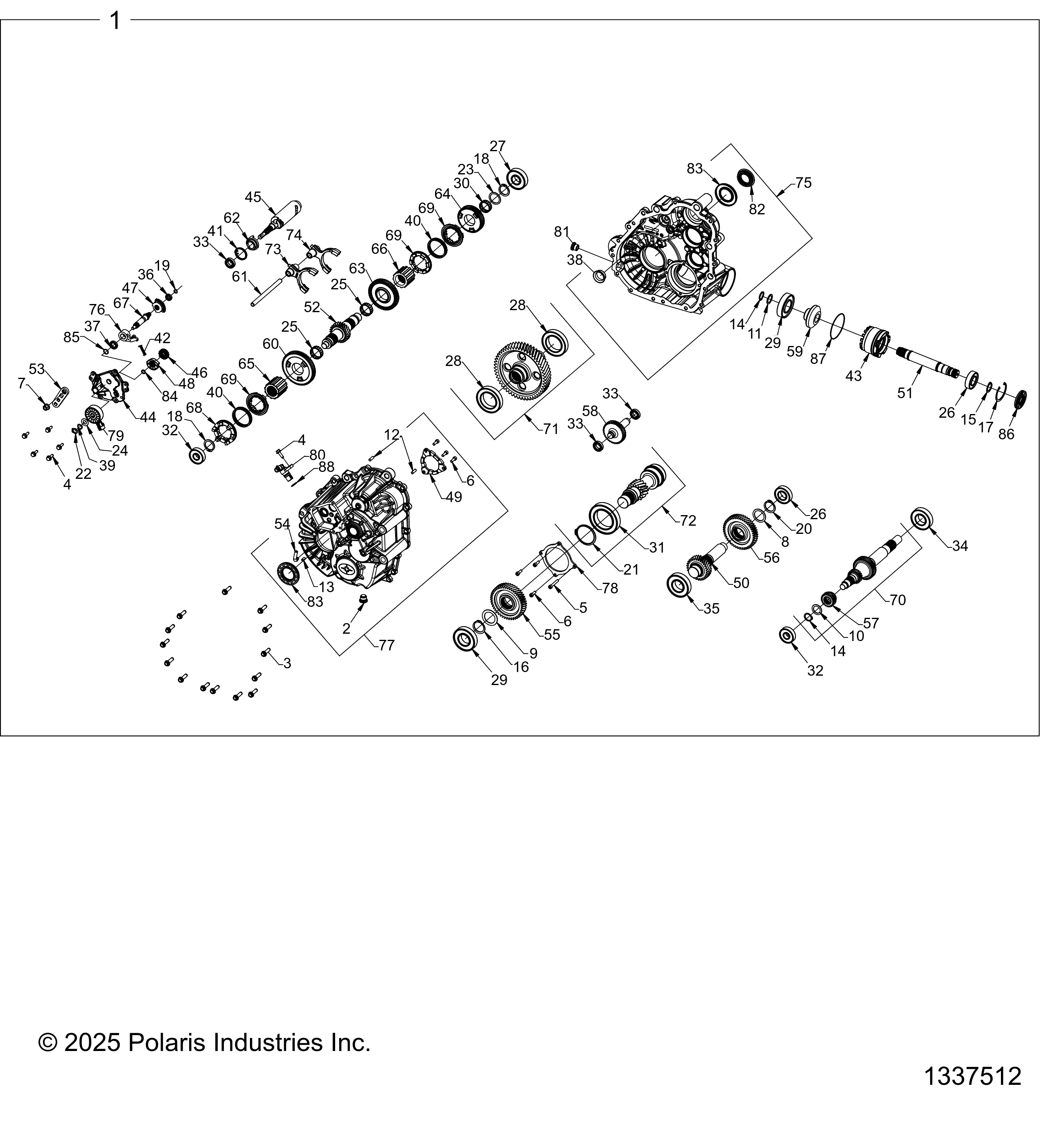

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP 1000 SPORT Assembly ID: 253094
Vehicle Compatibility
- 2026 Polaris RZR XP 1000 SPORT
Checkout Note
Please note that 82 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337512 | ASM-GEARCASE,MAIN,424510 [INCL. ALL] | 1 | $4,864.99 | In stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 14 | Price TBD | Out of stock | |
| 4 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 5 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | Price TBD | Out of stock | |
| 6 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 6 | Price TBD | Out of stock | |
| 7 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 8 | 3235211 | WASHER-32.3X42X1.5(115288) | 1 | Price TBD | Out of stock | |
| 9 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | Price TBD | Out of stock | |
| 10 | 3235991 | WASHER 22.70 X 32.0 X 1.5 | 1 | Price TBD | Out of stock | |
| 11 | 3236410 | WASHER, 22.5 X 30 X 1.5 | 1 | Price TBD | Out of stock | |
| 12 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 13 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 14 | 7710434 | RING, RETAINING BASIC EXTERNAL | 2 | Price TBD | Out of stock | |
| 15 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 16 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | Price TBD | Out of stock | |
| 17 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 18 | 3234205 | RING, RETAINING, | 2 | Price TBD | Out of stock | |
| 19 | 3239594 | RING, RETAINING, BASIC EXTERNAL SH-39 | 1 | Price TBD | Out of stock | |
| 20 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 1 | Price TBD | Out of stock | |
| 21 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | Price TBD | Out of stock | |
| 22 | 3239951 | RING-RETAINING,SHF-43 | 1 | Price TBD | Out of stock | |
| 23 | 3233378 | WASHER,THRUST,1.187 X 1.500 X .0600 | 1 | Price TBD | Out of stock | |
| 24 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 25 | 3233014 | BEARING, NEEDLE | 2 | Price TBD | Out of stock | |
| 26 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 2 | Price TBD | Out of stock | |
| 27 | 3233020 | BEARING | 1 | Price TBD | Out of stock | |
| 28 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 29 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 2 | Price TBD | Out of stock | |
| 30 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | Price TBD | Out of stock | |
| 31 | 3235218 | BEARING, BALL, 6012 C3 60 X 95 X 18 | 1 | Price TBD | Out of stock | |
| 32 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | Price TBD | Out of stock | |
| 33 | 3235807 | BEARING, BALL 6903 17 X 30 X 7 | 3 | Price TBD | Out of stock | |
| 34 | 3236773 | BEARING, BALL 62/32 | 1 | $59.99 | In stock | |
| 35 | 3239477 | BEARING,BALL 6207 PEER HP C3 35X72X17 | 1 | $49.99 | Out of stock Est. Nov 13, 2026 | |
| 36 | 3239595 | BEARING, BALL 6800, 10 X 19 X 5 | 1 | Price TBD | Out of stock | |
| 37 | 3239596 | BEARING, BALL 6802, 15 X 24 X 5 | 1 | Price TBD | Out of stock | |
| 38 | 3239597 | BEARING, PLAIN FLNGD, 28 X 32 X 13.00 | 1 | Price TBD | Out of stock | |
| 39 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 40 | 3239598 | SPRING, WAVE, 53.00 ID X 61.00 OD | 2 | Price TBD | Out of stock | |
| 41 | 3239599 | SPRING, TORSION | 1 | Price TBD | Out of stock | |
| 42 | 3239600 | SPRING, COMPRESSION, DETENT | 1 | Price TBD | Out of stock | |
| 43 | 3236120 | TUBE, SNORKEL MACH | 1 | Price TBD | Out of stock | |
| 44 | 3239981 | COVER-SECTOR GEARS,MACH | 1 | Price TBD | Out of stock | |
| 45 | 3239982 | DRUM-SHIFT,MACH | 1 | $209.99 | Out of stock Est. Aug 3, 2026 | |
| 46 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 47 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 48 | 3239602 | STAR, DETENT | 1 | Price TBD | Out of stock | |
| 49 | 3239815 | PLATE, PARK 6-FACE | 1 | Price TBD | Out of stock | |
| 50 | 3235223 | SHAFT-IDLER,29T(285803) | 1 | Price TBD | Out of stock | |
| 51 | 3236411 | SHAFT, FRONT OUTPUT | 1 | Price TBD | Out of stock | |
| 52 | 3239606 | SHAFT,REVERSE,25T | 1 | Price TBD | Out of stock | |
| 53 | 3235227 | BELLCRANK, 92 DEGREE | 1 | $34.99 | In stock | |
| 54 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 55 | 3235236 | GEAR-46T,STAGE 3(352872) | 1 | Price TBD | Out of stock | |
| 56 | 3235450 | GEAR, 48T, STAGE 2 | 1 | Price TBD | Out of stock | |
| 57 | 3236132 | GEAR, LOW 25T | 1 | Price TBD | Out of stock | |
| 58 | 3235986 | GEAR, IDLER 39T | 1 | Price TBD | Out of stock | |
| 59 | 3236412 | GEAR, 13T SNORKEL | 1 | Price TBD | Out of stock | |
| 60 | 3239610 | GEAR, LOW 67T | 1 | Price TBD | Out of stock | |
| 61 | 3239612 | RAIL, SHIFT SHAFT | 1 | Price TBD | Out of stock | |
| 62 | 3239614 | CAM, PARK | 1 | Price TBD | Out of stock | |
| 63 | 3239615 | GEAR, REVERSE 56T | 1 | Price TBD | Out of stock | |
| 64 | 3239616 | GEAR, HIGH 52T | 1 | Price TBD | Out of stock | |
| 65 | 3239675 | SLEEVE, PARK | 1 | Price TBD | Out of stock | |
| 66 | 3239676 | SLEEVE, HIGH | 1 | Price TBD | Out of stock | |
| 67 | 3239985 | SHAFT-SHIFT | 1 | $49.99 | Out of stock Est. Oct 2, 2026 | |
| 68 | 3239984 | SHIFT DOG, PARK | 1 | $84.99 | In stock | |
| 69 | 3239983 | DOG, SHIFT | 3 | Price TBD | Out of stock | |
| 70 | 3236691 | SUBASSEMBLY, INPUT 43T/22T/25T | 1 | Price TBD | Out of stock | |
| 71 | 3239361 | SUBASSEMBLY, OUTPUT | 1 | $439.99 | In stock | |
| 72 | 3239521 | SUBASSEMBLY, PINION SP | 1 | $499.99 | Out of stock Est. Aug 21, 2026 | |
| 73 | 3239620 | SUBASSEMBLY, SHIFT FORK | 1 | Price TBD | Out of stock | |
| 74 | 3239621 | SUBASSEMBLY, SHIFT FORK | 1 | Price TBD | Out of stock | |
| 75 | 3239838 | SUBASSEMBLY, LH CASE | 1 | Price TBD | Out of stock | |
| 76 | 3239902 | ASM-PAWL,DETENT,ROLLER | 1 | Price TBD | Out of stock | |
| 77 | 3239941 | SUBASSEMBLY, RH CASE | 1 | Price TBD | Out of stock | |
| 78 | 3235241 | COVER-BEARING,CNTR DR. | 1 | Price TBD | Out of stock | |
| 79 | 7662468 | SWITCH, ROTARY, 2 PIN RESISTIVE | 1 | $54.99 | Out of stock Est. Sep 29, 2026 | |
| 80 | 4082135 | SENSOR-SPEED (INLCUDES ITEM #88 O-RING) | 1 | Price TBD | Out of stock | |
| 81 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 82 | 3239564 | SEAL-LGHTR LIP W/FLNGE,32X49X9 | 1 | $74.99 | In stock | |
| 83 | 3239726 | SEAL-TRIPLE LIP,VITON,40X70X7 | 2 | $39.99 | Out of stock Est. Aug 24, 2026 | |
| 84 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 85 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 86 | 3236135 | SEAL, TRIPLE LIP 25 X 55 X 8 | 1 | Price TBD | Out of stock | |
| 87 | 3236136 | O-RING 2.989 I.D. X 0.07 | 1 | Price TBD | Out of stock | |
| 88 | 3236279 | O-RING, -016 VITON | 1 | Price TBD | Out of stock |
