Schematic diagram
Polaris•Schematic assembly

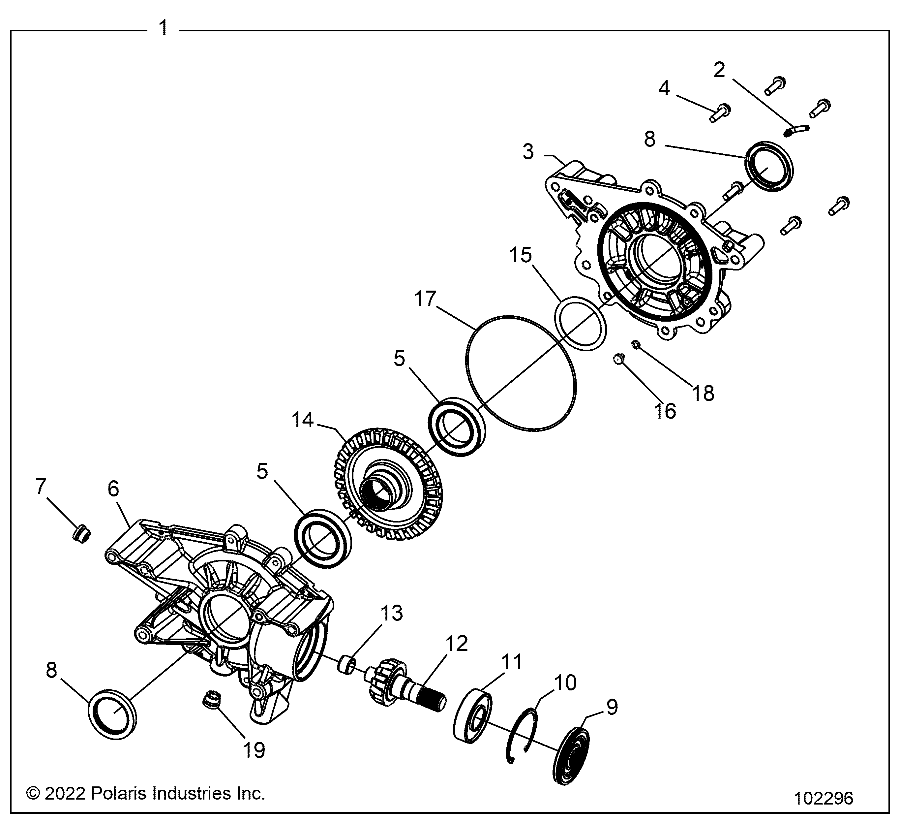

DRIVE TRAIN, REAR GEARCASE - A26SKE57A1 (102296)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253181
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337302 | ASM-GEARCASE,REAR [INCL. ALL] | 1 | $1,649.99 | In stock | |
| 2 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 3 | 3239471 | COVER, MACH | 1 | $549.99 | In stock | |
| 4 | 3234114 | SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25 | 6 | $8.99 | In stock | |
| 5 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 6 | 3239472 | GEARCASE, MACH | 1 | $814.99 | In stock | |
| 7 | 3233794 | PLUG, 3/4-16, 41775 INTERNAL HEX | 1 | $18.99 | In stock | |
| 8 | 3233878 | SEAL, TRIPLE LIP 40 X 70 X 7 | 2 | $39.99 | In stock | |
| 9 | 3235658 | SEAL, TRIPLE LIP, VITON, 25 X 80 X 10 | 1 | $69.99 | In stock | |
| 10 | 3234158 | RING, RETAINING BEVELED INTERNAL 2.835 | 1 | $29.99 | In stock | |
| 11 | 3233714 | BEARING, BALL 6306 STD 30X72X19 | 1 | $39.99 | In stock | |
| 12 | 3233881 | Shaft, Pinion, 10T | 1 | $214.99 | In stock | |
| 13 | 3233577 | BEARING, PLAIN | 1 | $24.99 | In stock | |
| 14 | 3239662 | GEAR, STRAIGHT, BEVEL,31T | 1 | Price TBD | Out of stock | |
| 15 | 3233581 | SHIM 3.1 X 2.5 | 1 | $49.99 | In stock | |
| 16 | 3233582 | THRUST BUTTON | 1 | Price TBD | Out of stock | |
| 17 | 3235967 | O-RING | 1 | $34.99 | In stock | |
| 18 | 3233583 | SHIM .450 X .265 | 1 | Price TBD | Out of stock | |
| 19 | 3234529 | MAGNETIC PLUG, 3/4-16 INTERNAL HEX | 1 | Price TBD | Out of stock |
