Polaris•Schematic assembly

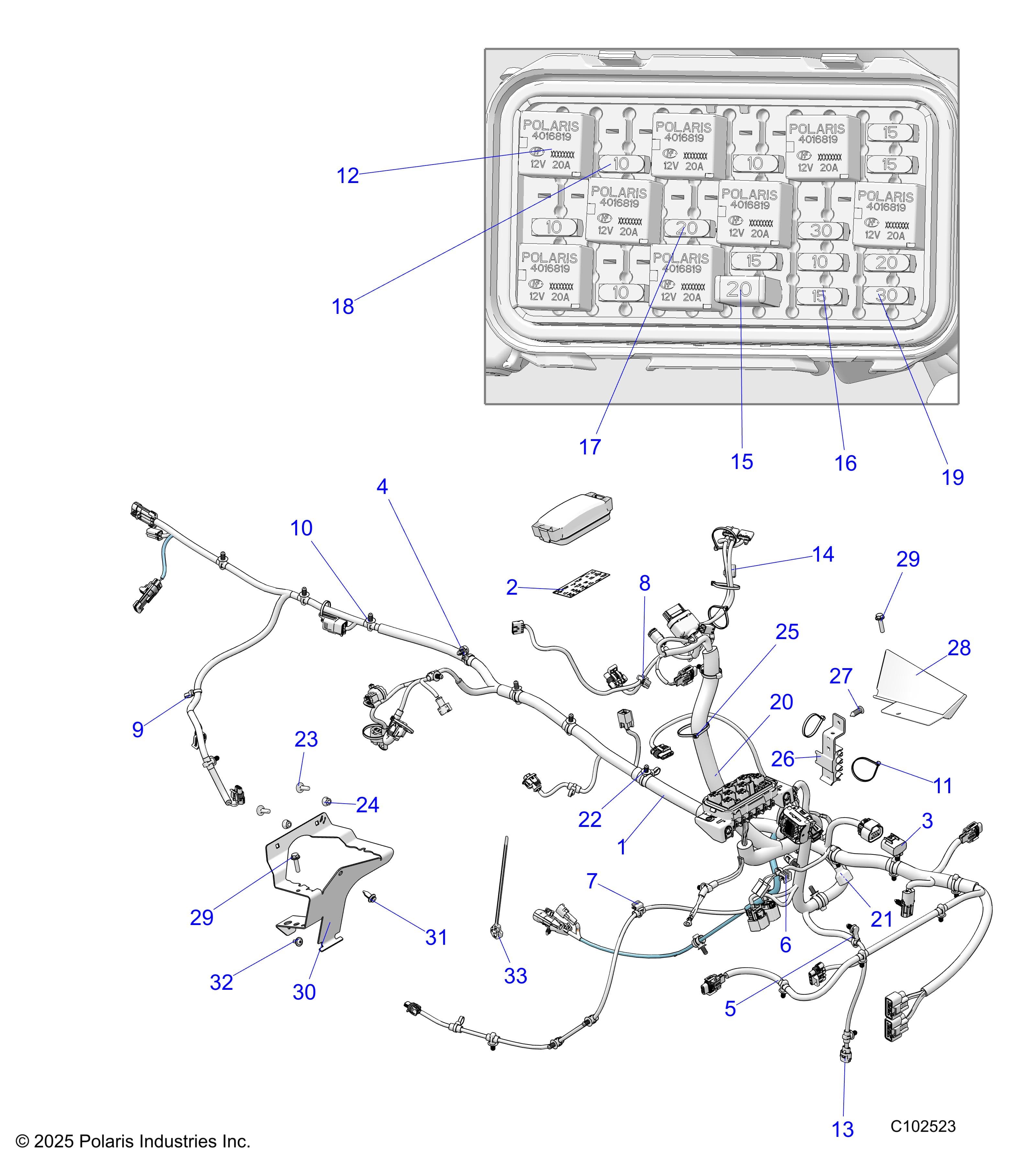

ELECTRICAL, WIRE HARNESS - A26SKE57A1 (C102523)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253188
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 26 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 4014047 | COVER,FUSEBOX,72WAY | 1 | Price TBD | Out of stock | |
| 1 | 2418084 | HARN-MAIN,SPMN,ETC,2UP INCL. 1-22] | 1 | $1,099.99 | In stock | |
| 2 | 7300888 | LABEL - FUSE BOX | 1 | Price TBD | Out of stock | |
| 3 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 4 | 7082458 | CLIP OFFSET 12.5MM FIRTREE(BK) | 1 | Price TBD | Out of stock | |
| 5 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 6 | 7082404 | CLIP-EDGE, 3-6MM THICKNESS | 1 | Price TBD | Out of stock | |
| 7 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 8 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 9 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 3 | Price TBD | Out of stock | |
| 10 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 22 | Price TBD | Out of stock | |
| 11 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 8 | Price TBD | Out of stock | |
| 12 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 8 | Price TBD | Out of stock | |
| 13 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 14 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 15 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | Price TBD | Out of stock | |
| 16 | 4010859 | FUSE-15AMP,MINI BLADE | 4 | Price TBD | Out of stock | |
| 17 | 2434017 | FUSE-PARK,20 AMP | 2 | Price TBD | Out of stock | |
| 18 | 2434016 | FUSE-IGNITION,10 AMP | 5 | Price TBD | Out of stock | |
| 19 | 2434015 | FUSE-MAIN,30 AMP | 2 | Price TBD | Out of stock | |
| 20 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 21 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 22 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 2 | Price TBD | Out of stock | |
| 23 | 7519249 | SCREW, RH CARRIAGE | 2 | $3.99 | In stock | |
| 24 | 7547274 | NUT-M6 FLANGE,NYLOC | 3 | Price TBD | Out of stock | |
| 25 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 4 | Price TBD | Out of stock | |
| 26 | 5457074 | CLIP-ROUTING,MIDFRAME | 1 | $4.99 | In stock | |
| 27 | 7670101 | CLIP-XMAS TREE, .945 X .228 | 1 | $2.99 | In stock | |
| 28 | 5465393-070 | DIVERTER,WTR SHLD,P-190X,BLK | 1 | $12.99 | In stock | |
| 29 | 7518535 | SCR-TXPHM6X1.0X25 8.8 RIE | 2 | Price TBD | Out of stock | |
| 30 | 5268539-458 | BRKT-FUSE BLOCK,M.BLK | 1 | $34.99 | In stock | |
| 31 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 1 | Price TBD | Out of stock | |
| 32 | 7512084 | SCR-10-24X1/2, PHTXTRIRD, SEMS-Y | 1 | Price TBD | Out of stock | |
| 33 | 7082649 | CABLE-TIE,M10X1.5 STUD MNT | 1 | $4.99 | In stock |
