Schematic diagram
Polaris•Schematic assembly

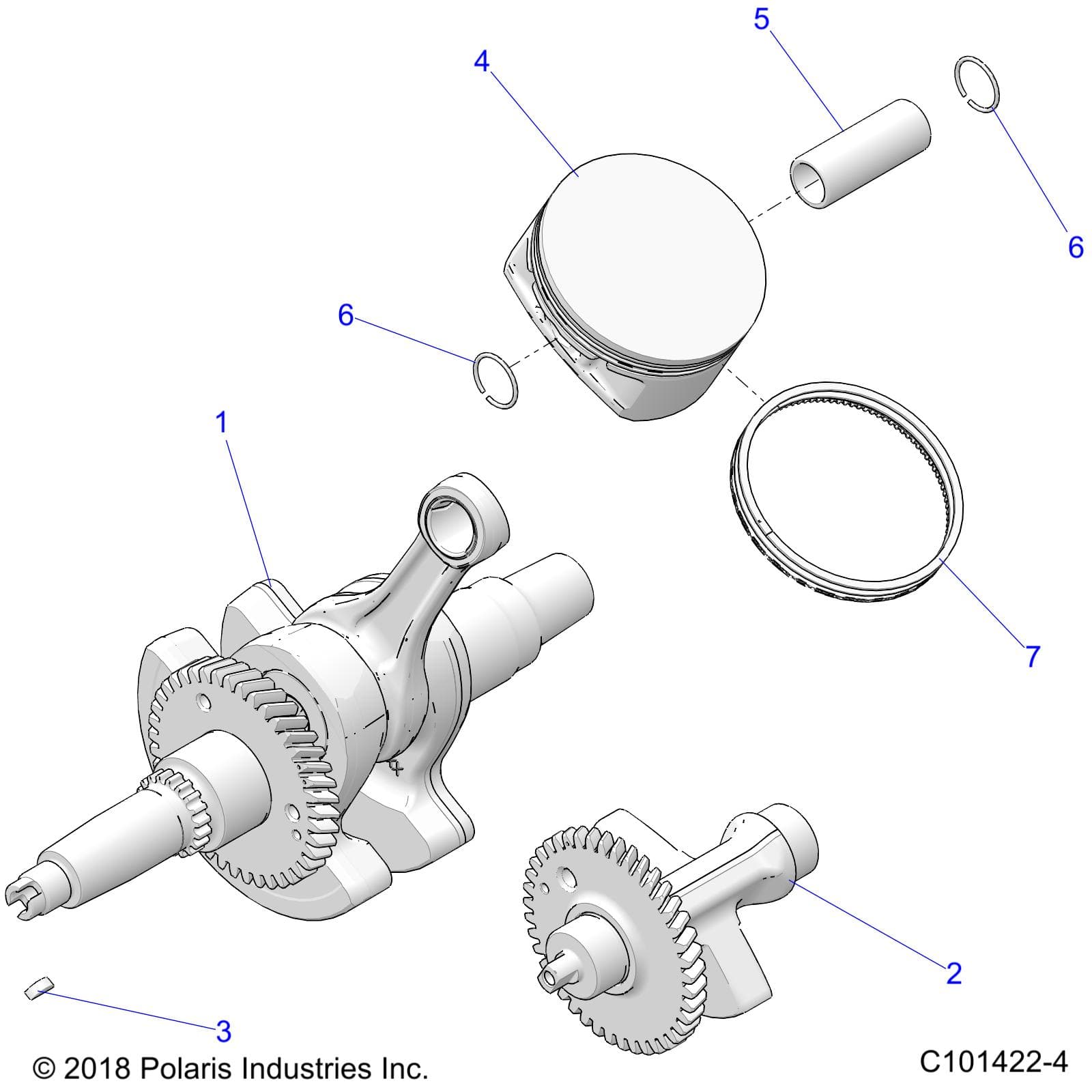

ENGINE, CRANKSHAFT, PISTON and BALANCE SHAFT - A26SKE57A1 (C101422-4)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253200
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2206356 | K-CRANKSHAFT 570 | 1 | $1,049.99 | In stock | |
| 2 | 1204515 | ASM-BALANCE SHAFT | 1 | $174.99 | In stock | |
| 3 | 7721122 | KEY-WOODRUFF,4X5 | 1 | Price TBD | Out of stock | |
| 4 | 2204960 | KIT-PISTON 99MM [INCL. STANDARD SIZE PISTON, PIN, CLIPS, RING SET] | 1 | $189.99 | In stock | |
| 5 | 3022291 | PIN-PISTON,22X12.8X56.6MM | 1 | $54.99 | In stock | |
| 6 | 7710479 | RING-RTNG,RND,22.0X1.6,0600102 | 2 | Price TBD | Out of stock | |
| 7 | 2204733 | KIT-RING,STD [INCL. QTY 1 EACH OF TOP RING, OIL SCRAPER RING, AND SECOND COMPRESSION RING] | 1 | $79.99 | In stock |
