Polaris•Schematic assembly

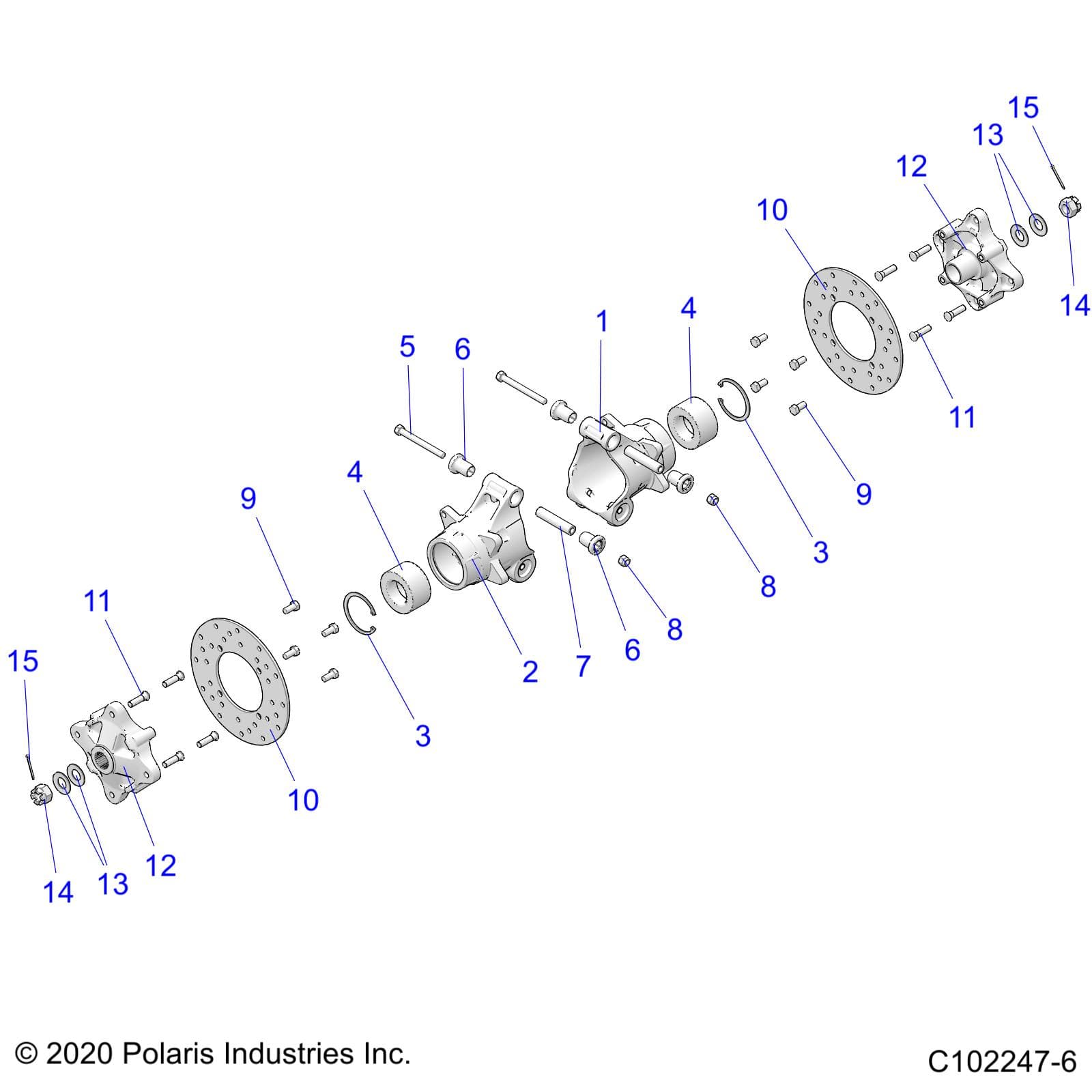

SUSPENSION, MIDDLE HUBS, CARRIER and BRAKE DISC - A26SKE57A1 (C102247-6)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253226
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 6X6 EPS 49S
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5139363 | CARRIER-BEARING,WHEEL,LH(MACH) | 1 | $139.99 | In stock | |
| 2 | 5137436 | CARRIER-BEARING,WHEEL,RH(MACH) | 1 | $129.99 | In stock | |
| 3 | 7710440 | RING-RETAINING,2.875,INTERNAL | 2 | Price TBD | Out of stock | |
| 4 | 3515823 | BEARING-WHEEL,40X74X40MM | 2 | $74.99 | In stock | |
| 5 | 7521333-100 | SCR-HXFL-M10X1.5X100 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 6 | 1543326 | ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) | 2 | $15.99 | In stock | |
| 7 | 5145505 | SHAFT-PIVOT,SHORT,M10 | 2 | $4.99 | In stock | |
| 8 | 7542439 | NUT-3/8-24(NYLOK)-Y | 2 | $1.49 | In stock | |
| 9 | 7518903 | SCR-HH-3/8-16X0.75 GR5 ZY3 | 8 | $4.99 | In stock | |
| 10 | 5248250 | DISC-BRAKE,REAR,8.625X.188 | 2 | Price TBD | Out of stock | |
| 11 | 7518378 | STUD-3/8-24X1.38,PRESS FIT-Z | 8 | $1.99 | In stock | |
| 12 | 5143629 | HUB-WHEEL,REAR,MACH | 2 | $104.99 | In stock | |
| 13 | 7555796 | WASHER-CONE.755X1.5X.072-.107P | 4 | $9.99 | In stock | |
| 14 | 7547337 | NUT-M18X1.5,CASTLE,ZINC/YELLOW | 2 | Price TBD | Out of stock | |
| 15 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 2 | Price TBD | Out of stock |
