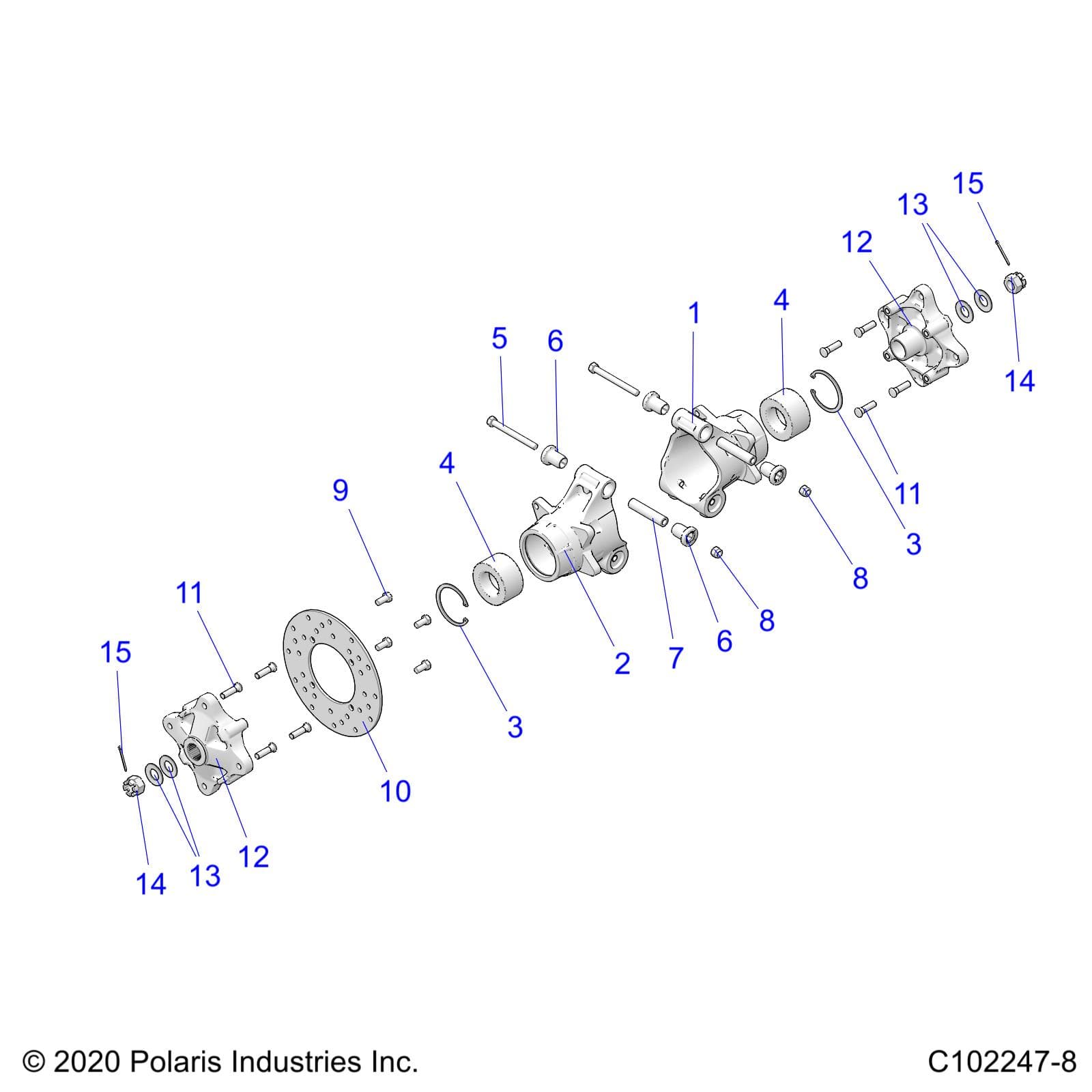

2026 SPORTSMAN 570 6X6 EPS 49S — SUSPENSION, REAR HUBS, CARRIER and BRAKE DISC - A26SKE57A1 (C102247-8) diagram

Schematic diagram

Polaris•Schematic assembly

SUSPENSION, REAR HUBS, CARRIER and BRAKE DISC - A26SKE57A1 (C102247-8)

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 6X6 EPS 49S Assembly ID: 253231

Vehicle Compatibility

  • 2026 Polaris SPORTSMAN 570 6X6 EPS 49S

Checkout Note

Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
15139363CARRIER-BEARING,WHEEL,LH(MACH)1$139.99
In stock
25137436CARRIER-BEARING,WHEEL,RH(MACH)1$129.99
In stock
37710440RING-RETAINING,2.875,INTERNAL4Price TBD
Out of stock
43514917BEARING-WHEEL,40X74X40MM4Price TBD
Out of stock
43515087BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]4Price TBD
Out of stock
43514917BEARING-WHEEL,40X74X40MM4Price TBD
Out of stock
43515087BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]4Price TBD
Out of stock
57521333-100SCR-HXFL-M10X1.5X100 10.9 ZFB2Price TBD
Out of stock
61543326ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]4$15.99
In stock
75020826Shaft, A-Arm., Short2$14.99
In stock
87548029NUT-HXFL-M10X1.5 8 ZTB NYL2Price TBD
Out of stock
97518903SCR-HH-3/8-16X0.75 GR5 ZY38$4.99
In stock
105248250DISC-BRAKE,REAR,8.625X.1882Price TBD
Out of stock
117518378STUD-3/8-24X1.38,PRESS FIT-Z8$1.99
In stock
125143629HUB-WHEEL,REAR,MACH2$104.99
In stock
137555796WASHER-CONE.755X1.5X.072-.107P4$9.99
In stock
147547337NUT-M18X1.5,CASTLE,ZINC/YELLOW2Price TBD
Out of stock
157661404PIN-COTTER 1/8X1 1/2-Y2Price TBD
Out of stock
