Polaris•Schematic assembly

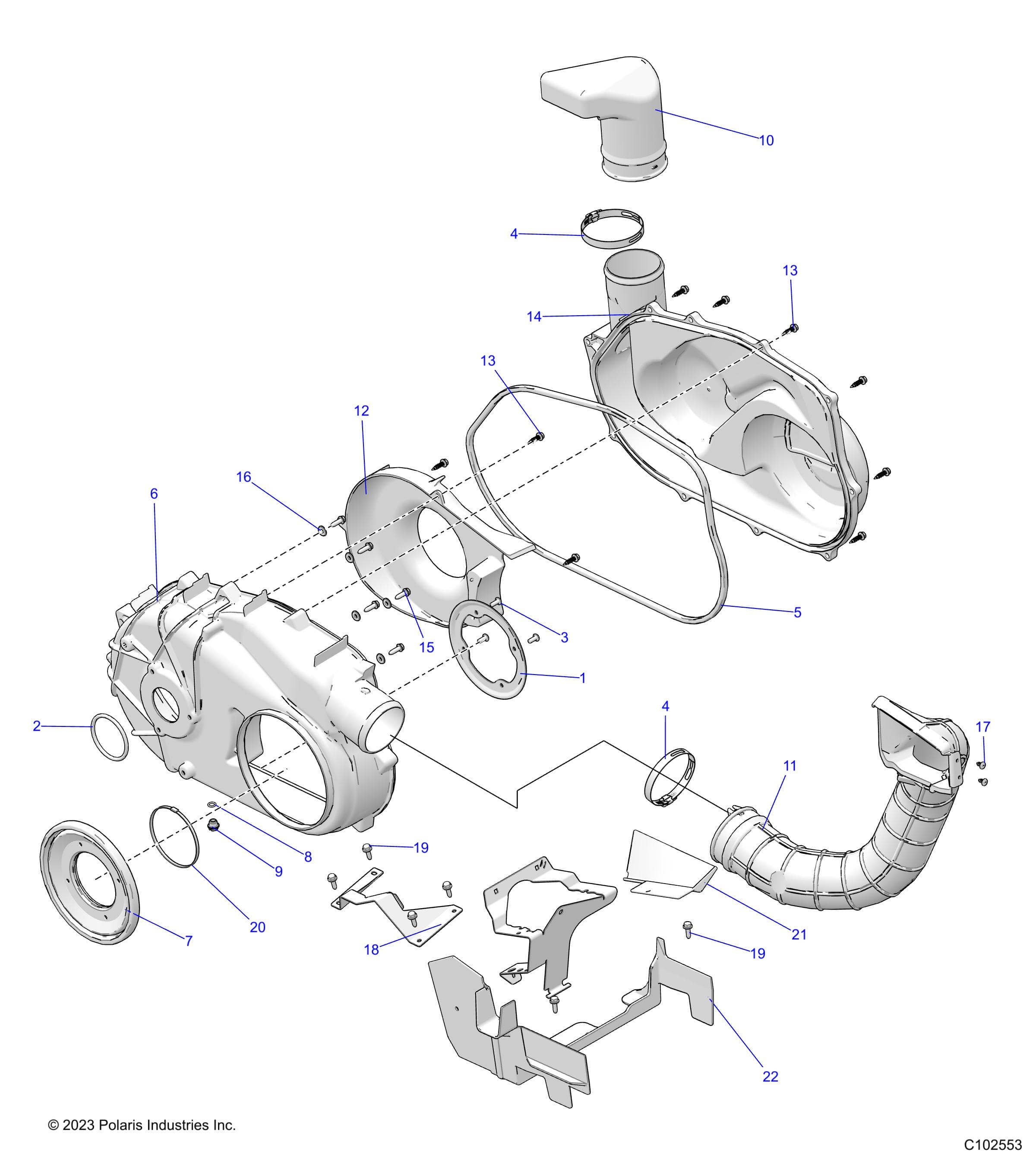

BODY, CLUTCH COVER - A26SHR57AG (C102553)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 570 UTL 49S Assembly ID: 253382
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 570 UTL 49S
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5274620 | BRKT-SEAL,P190X,DISHED | 1 | $16.99 | In stock | |
| 2 | 5415647 | O-RING-0.489X0.629X0.070,EPDM | 1 | Price TBD | Out of stock | |
| 3 | 7518656 | SCR-TXPH-M6X1.0X15 GR5 ZOD NYL | 4 | Price TBD | Out of stock | |
| 4 | 7081969 | CLAMP-HOSE SLOTTED,92-100 DIA | 2 | Price TBD | Out of stock | |
| 5 | 5522362 | SEAL-OUTER CLUTCH COVER | 1 | $54.99 | In stock | |
| 6 | 2637805 | ASM-CLUTCH COVER-INNER [INCL. 7-9] | 1 | $204.99 | In stock | |
| 7 | 5418251 | SEAL-COVER,CLUTCH,INNER,P190X | 1 | $69.99 | In stock | |
| 8 | 5410542 | O RING-.364X.504X.07 | 1 | Price TBD | Out of stock | |
| 9 | 5434264 | PLUG-DRAIN,CLUTCH COVER | 1 | Price TBD | Out of stock | |
| 10 | 5418396 | DUCT-CLUTCH OUTLET X2 | 1 | $64.99 | In stock | |
| 11 | 5418414 | DUCT-CLUTCH INLET,P190X | 1 | $74.99 | In stock | |
| 12 | 5455440 | COVER-CLUTCH,INTAKE,BAFFLE | 1 | $119.99 | In stock | |
| 13 | 7519849 | SCR-#14X1-1/4,HI/LO/TAPER-Y | 13 | $3.99 | In stock | |
| 14 | 2638288 | ASM-COVER-CLUTCH OUTER [INCL. WARNING DECAL] | 1 | $229.99 | Out of stock Est. Aug 24, 2026 | |
| 15 | 7517599 | SCR-TFHL-1/4-20X0.88 G5 Z SEMS [INCL. 15 &16] | 5 | $6.99 | In stock | |
| 15 | 7517312 | SCR-1/4-20X.88,HXWR TAPR,GR5,Y | 5 | $1.49 | In stock | |
| 16 | 7555748 | WASHER-.28X.62-.14(RBR-BK)-Z | 1 | Price TBD | Out of stock | |
| 17 | 5432966 | CLIP-XMAS TREE,.187 DIA | 2 | $1.49 | In stock | |
| 18 | 5271308-329 | CLUTCH-BOX,LIMITER,E-COAT | 1 | $39.99 | In stock | |
| 19 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 6 | Price TBD | Out of stock | |
| 20 | 7082260 | CABLE-TIE,13-102MM,NON-FLAM | 1 | $6.99 | In stock | |
| 21 | 5465393-070 | DIVERTER,WTR SHLD,P-190X,BLK | 1 | $12.99 | In stock | |
| 22 | 5465254-070 | COVER-CVT,SPLASH,SHIELD,SP,BLK | 1 | $34.99 | In stock |
