Polaris•Schematic assembly

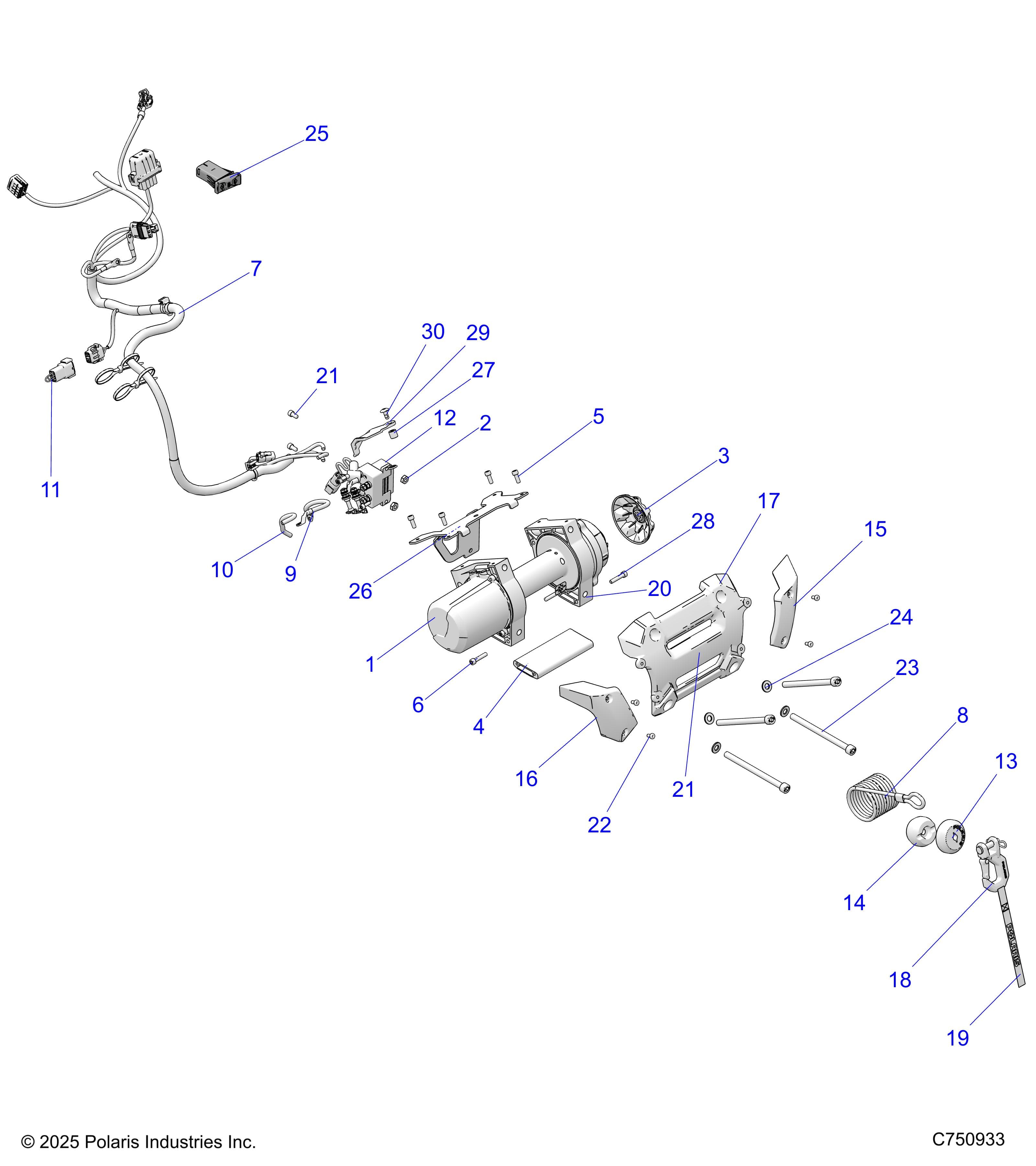

CHASSIS, WINCH - Z26NET99A4/B4/A6/B6 (C750933)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP 1000 ULTIMATE Assembly ID: 253654
Vehicle Compatibility
- 2026 Polaris RZR XP 1000 ULTIMATE
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2640666 | ASM-WINCH,45HD PROD,CN,RZE [INCLUDES ALL] | 1 | $974.99 | Out of stock Est. Jul 22, 2026 | |
| 1 | 2640690 | WINCH-POL,45HDE,NA,CN,T,IN [INCLUDES 2-4] | 1 | Price TBD | Out of stock | |
| 1 | 2212994 | SVC-WINCH MOTOR,45ENCT | 1 | $109.99 | In stock | |
| 2 | 7547307 | NUT-WELD,M6X1,PROJECTION | 2 | $3.99 | In stock | |
| 3 | 5458729 | HANDLE-FREESPOOL,SS,RZE | 1 | $5.99 | In stock | |
| 4 | 5511086 | EXTR-CROSS BRACE,INT,RZE | 1 | $13.99 | In stock | |
| 5 | 7517701 | SCR-SH-M6X1.0X16 A2 EP SPC | 4 | Price TBD | Out of stock | |
| 6 | 7520482 | SCR-SH-M6X1.0X50 8.8 RIE | 2 | $4.99 | In stock | |
| 7 | 2418526 | HARNESS-WINCH,PRO,XT,RZE | 1 | Price TBD | Out of stock | |
| 8 | 2879188 | KIT-ROPE,WINCH,60,UHMW | 1 | $194.99 | In stock | |
| 9 | 4013468-170 | CABLE-WINCH,YELLOW 6 GA,170MM | 1 | Price TBD | Out of stock | |
| 10 | 4013469-170 | CABLE-WINCH,BLUE 6 GA,170MM | 1 | Price TBD | Out of stock | |
| 11 | 4081004 | JUMPER-WINCH ASTP SIGNL THRU | 1 | $39.99 | In stock | |
| 12 | 4081615 | CONTACTOR,WINCH,POL,SM,DEU | 1 | $124.99 | In stock | |
| 13 | 5416562 | STOP-BUMPER | 1 | $12.99 | In stock | |
| 14 | 5418451 | BUMPER-JOUNCE,WINCH,NLWC | 1 | Price TBD | Out of stock | |
| 15 | 5458727 | COVER-WINCH,CSMTC,LH,INT,RZE | 1 | $6.99 | In stock | |
| 16 | 5458728 | COVER-WINCH,CSMTC,RH,INT,RZE | 1 | $6.99 | In stock | |
| 17 | 5634678 | MAIN FAIRLEAD,INT,RZE | 1 | $84.99 | In stock | |
| 18 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN | 1 | $10.99 | In stock | |
| 19 | 7199040 | DECAL-WINCH,PINCH WARNING [STRAP ONLY] | 1 | Price TBD | Out of stock | |
| 20 | 7199177 | DECAL-WINCH,POLARIS STAR | 1 | $3.99 | In stock | |
| 21 | 7517405 | SCREW-SH-M6X1.0X12 10.9 ZPC | 2 | $12.99 | In stock | |
| 22 | 7527977 | SCR-BHCS-M5X0.8X10 10.9 ZPB | 4 | $0.39 | In stock | |
| 23 | 7528017 | SCR-SH-M10X1.5X140 12.9 ZFB | 4 | $2.99 | In stock | |
| 24 | 7558782 | WASHER-M10X20X2 STL THR-HRD,BK | 4 | $2.99 | In stock | |
| 25 | 4080801-13 | SWITCH-KSERIES,WINCH | 1 | $74.99 | In stock | |
| 26 | 5270663 | PLATE-LOWER,WINCH,RZE | 1 | $99.99 | In stock | |
| 27 | 5276623 | BRKT-WINCH CNTCTR MOUNT,RZE | 1 | Price TBD | Out of stock | |
| 28 | 7520714 | SCREW-M6SH-M6X1X30 8.8 ZPB | 2 | $5.99 | In stock | |
| 29 | 5467324 | COVER-WINCH,ROUTING,RZE | 1 | Price TBD | Out of stock | |
| 30 | 7520848 | SCREW-TXTH-M6X1.0X15 8.8 ZPB P30 | 1 | $3.99 | In stock |
