DRIVE TRAIN, FRONT GEARCASE INTERNALS - Z26NET99A4/B4/A6/B6 (702794)
Product Description

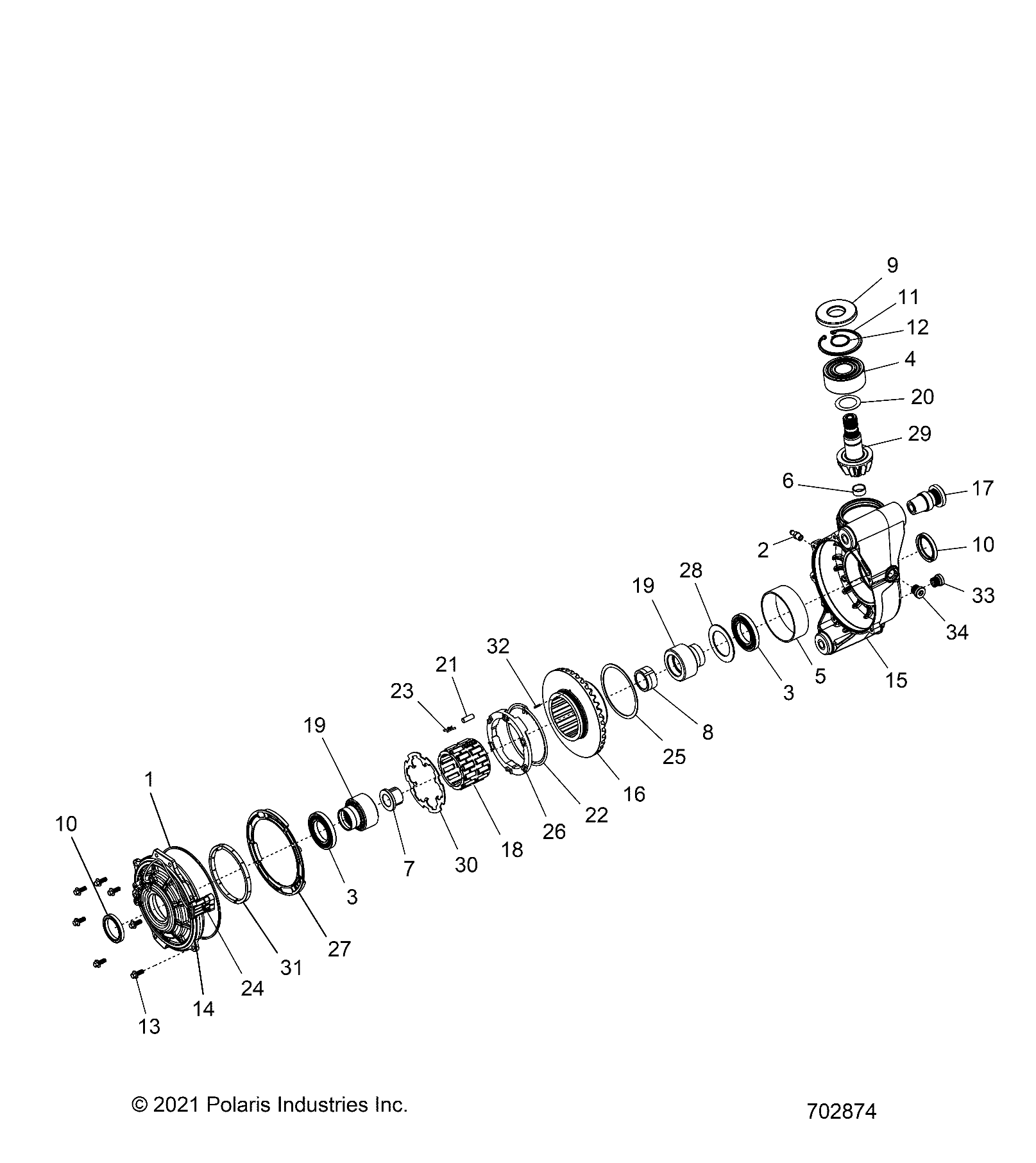

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP 1000 ULTIMATE Assembly ID: 253784
Vehicle Compatibility
- 2026 Polaris RZR XP 1000 ULTIMATE
Checkout Note
Please note that 39 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 3235712 | KIT-TORSION,SPRING AND RETAINER [INCLUDES 22 & 26] | 1 | Price TBD | Out of stock | |
| - | 3236051 | BEARINGS [INCLUDES 3 & 4] | 1 | Price TBD | Out of stock | |
| - | 3236764 | KIT-GEAR HOUSING & PINION GEAR ASSSY [INCLUDES 4,11,12,16,20,29 & 32] | 1 | Price TBD | Out of stock | |
| - | 3239362 | ASM - OUTPUT HUB (ALUM) LG ROLL [INCLUDES 3,7,8,19 & 28] | 1 | $509.99 | Out of stock Est. Aug 28, 2026 | |
| - | 3239525 | ASM-COVER OUTPUT [INCLUDES 1,10,14,24,27 & 31] | 1 | $499.99 | In stock | |
| - | 3239524 | K-SEAL REPAIR [INCLUDES 1,9 & 10] | 1 | $119.99 | In stock | |
| - | 3239523 | ASM-GEARCASE [INCLUDES 2,5,6,10,15,17,33 & 34] | 1 | $2,099.99 | In stock | |
| - | 1337397 | ASM-GRCASE,FRT,ISO,3.25,LRZC [INCLUDES ALL] | 1 | $2,004.99 | In stock | |
| - | 3239819 | ASM-ROLL CAGE [INCLUDES 18 & 23] | 1 | Price TBD | Out of stock | |
| 1 | ------- | O-RING | 1 | Price TBD | Out of stock | |
| 2 | ------- | VENT TUBE | 1 | Price TBD | Out of stock | |
| 3 | ------- | BEARING | 2 | Price TBD | Out of stock | |
| 4 | ------- | BEARING, DOUBLE ROW | 1 | Price TBD | Out of stock | |
| 5 | ------- | BUSHING, DU | 1 | Price TBD | Out of stock | |
| 6 | ------- | BUSHING | 1 | Price TBD | Out of stock | |
| 7 | ------- | BUSHING, INNER | 1 | Price TBD | Out of stock | |
| 8 | ------- | BUSHING, OUTER | 1 | Price TBD | Out of stock | |
| 9 | ------- | SEAL, OIL | 1 | Price TBD | Out of stock | |
| 10 | ------- | SEAL, OIL, CUSTOM | 2 | Price TBD | Out of stock | |
| 11 | ------- | RING, RETAINING, INNER | 1 | Price TBD | Out of stock | |
| 12 | ------- | RING, RETAINING | 1 | Price TBD | Out of stock | |
| 13 | 3235483 | COVER-FASTNERS [INCLUDES QTY 7] | 7 | Price TBD | Out of stock | |
| 14 | ------- | COVER | 1 | Price TBD | Out of stock | |
| 15 | ------- | GEARCASE | 1 | Price TBD | Out of stock | |
| 16 | ------- | RING GEAR | 1 | Price TBD | Out of stock | |
| 17 | 5417265 | KIT-ISOLATOR | 4 | Price TBD | Out of stock | |
| 18 | ------- | BUSHING | 1 | Price TBD | Out of stock | |
| 19 | ------- | ASM-HUB | 2 | Price TBD | Out of stock | |
| 20 | ------- | SHIM | 1 | Price TBD | Out of stock | |
| 21 | 3235486 | CAGE ROLLERS [INCLUDES QTY 24] | 24 | Price TBD | Out of stock | |
| 22 | ------- | TORSION SPRING | 1 | Price TBD | Out of stock | |
| 23 | ------- | SPRING-H CLIP | 24 | Price TBD | Out of stock | |
| 24 | ------- | ASM-CONNECTOR | 1 | Price TBD | Out of stock | |
| 25 | 3234437 | SPACER-RING GEAR | 1 | Price TBD | Out of stock | |
| 26 | ------- | ASM-SPRING RETAINER | 1 | Price TBD | Out of stock | |
| 27 | ------- | SPACER-BACKLASH | 1 | Price TBD | Out of stock | |
| 28 | ------- | SPACER-NYLON | 1 | Price TBD | Out of stock | |
| 29 | ------- | PINION | 1 | Price TBD | Out of stock | |
| 30 | 3236048 | PLATE-4WD ARMATURE | 1 | Price TBD | Out of stock | |
| 31 | ------- | COIL | 1 | Price TBD | Out of stock | |
| 32 | ------- | WELD STUD | 1 | Price TBD | Out of stock | |
| 33 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 34 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock |
