Schematic diagram
Polaris•Schematic assembly

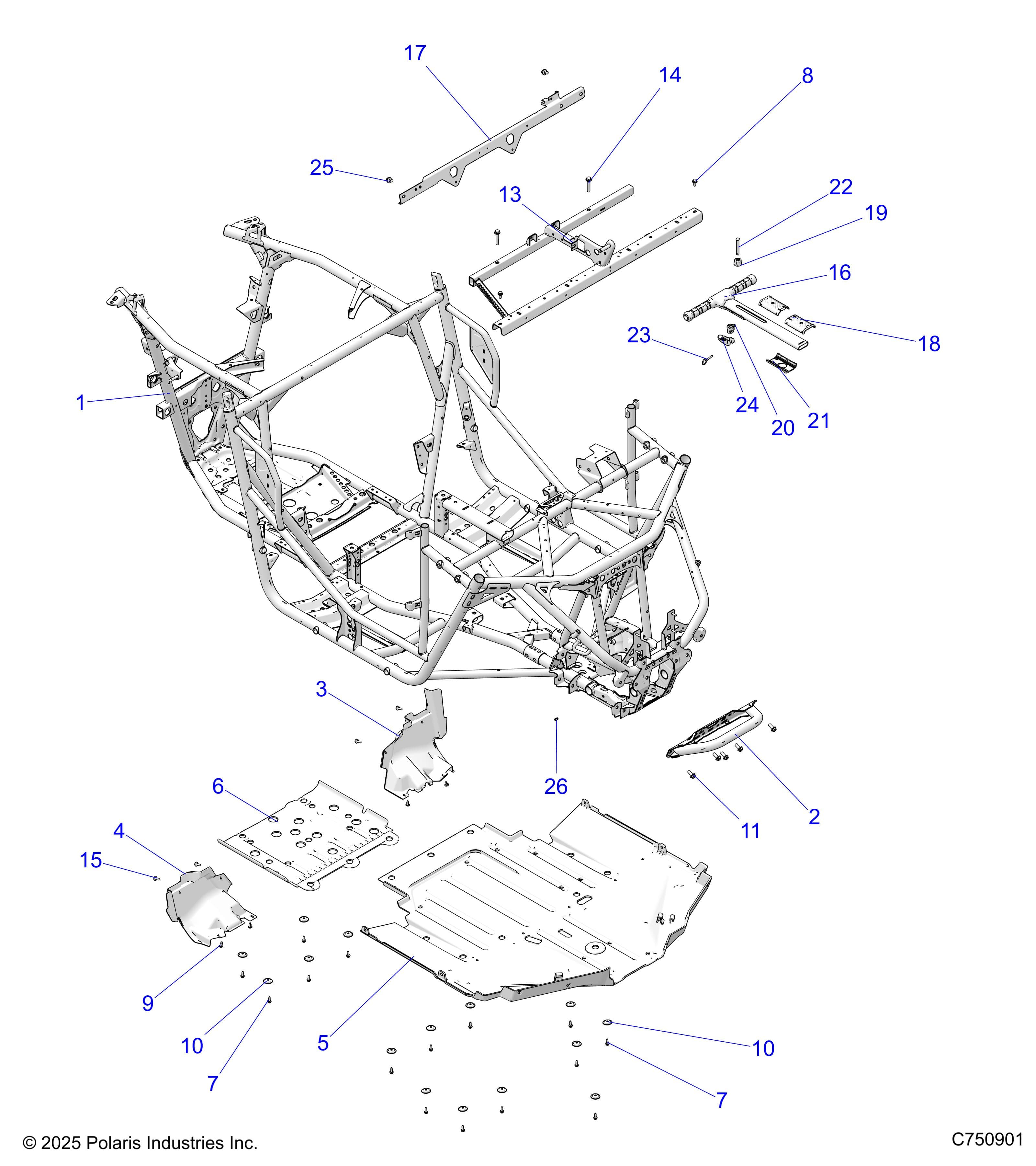

CHASSIS, MAIN FRAME AND SKID PLATES - Z26NEY99A4/B4/A6/B6 (C750901)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR XP S 1000 ULTIMATE Assembly ID: 254205
Vehicle Compatibility
- 2026 Polaris RZR XP S 1000 ULTIMATE
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1028958-458 | WELD-FRAME MAIN,72,BLK | 1 | $3,744.99 | In stock | |
| 2 | 1028894-831 | WELD-FRT,BUMPER,SHDW BRONZE | 1 | $299.99 | In stock | |
| 3 | 5457593-070 | COVER-SCM,LH,BLK | 1 | $49.99 | In stock | |
| 4 | 5457594-070 | COVER-TANK,RH,BLK | 1 | $44.99 | In stock | |
| 5 | 5466370-070 | SKID PLATE-FRONT,BLK | 1 | $369.99 | In stock | |
| 6 | 5466296-070 | PLATE-SKID,REAR | 1 | $209.99 | In stock | |
| 7 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 15 | Price TBD | Out of stock | |
| 8 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | Price TBD | Out of stock | |
| 9 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | Price TBD | Out of stock | |
| 10 | 7556065 | WASHER-SKID PLATE | 13 | Price TBD | Out of stock | |
| 11 | 7519071 | SCR-M10X1.5X25 8.8 HXFL ZOD | 4 | Price TBD | Out of stock | |
| 13 | 1026956-329 | WELD-SEAT BASE,FRT,BLK | 1 | $259.99 | In stock | |
| 14 | 7518474 | SCR-HXFL-M10X1.5X55 8.8 ZY3 | 2 | $5.99 | In stock | |
| 15 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | Price TBD | Out of stock | |
| 16 | 2637771 | ASM-GRAB BAR | 1 | $104.99 | In stock | |
| 17 | 5274852-329 | BRKT-CLOSE OFF SUPPORT,ECOAT | 1 | $114.99 | In stock | |
| 18 | 5457427 | BUSHING-GRAB BAR,UPPER | 2 | $5.99 | In stock | |
| 19 | 5457511 | NUT-GRAB BAR | 1 | $8.99 | In stock | |
| 20 | 5457512 | CAP,GRAB BAR LEVER | 1 | $5.99 | In stock | |
| 21 | 5457891 | BUSHING-GRAB BAR,LOWER | 2 | $5.99 | In stock | |
| 22 | 7521309 | ROD-GRAB BAR THREADED | 1 | $8.99 | In stock | |
| 23 | 7663047 | PIN-GRAB BAR | 1 | $9.99 | In stock | |
| 24 | 5459039 | LEVER,GRAB BAR | 1 | $3.99 | In stock | |
| 25 | 7520200 | SCR-HXFL-M10X1.25X16 8.8 ZY3 | 2 | $4.99 | In stock | |
| 26 | 7547307 | NUT-WELD,M6X1,PROJECTION | 1 | $3.99 | In stock |
