Schematic diagram
Polaris•Schematic assembly

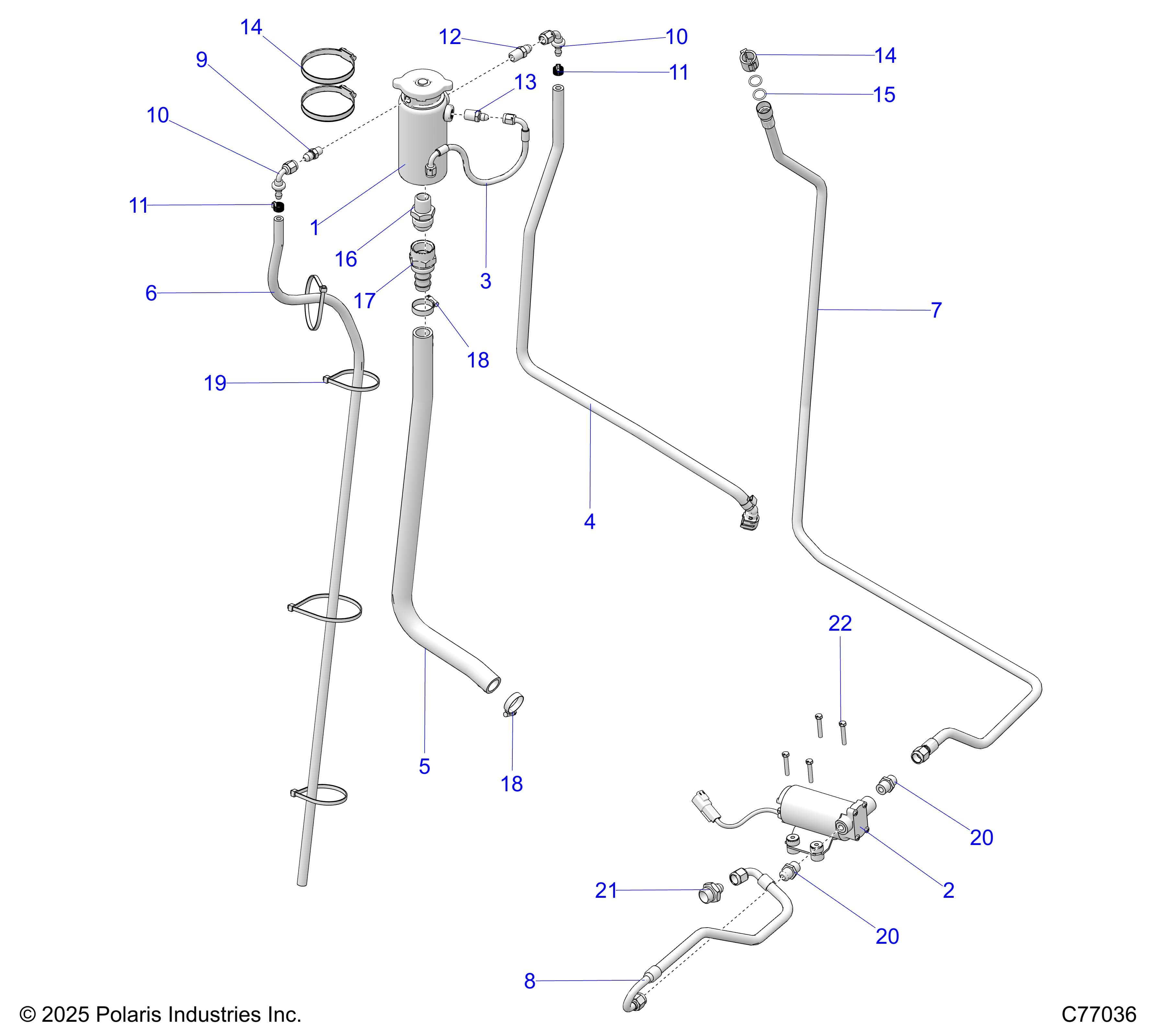

ENGINE, COOLING, SURGE TANK AND TRANS PUMP - Z26RRL2KAL (C77036)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR PRO R RACE H.O. Assembly ID: 255397
Vehicle Compatibility
- 2026 Polaris RZR PRO R RACE H.O.
Checkout Note
Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1244830 | ASM-TANK,SURGE RACE | 1 | Price TBD | Out of stock | |
| 2 | 2418213 | ASM-PUMP TRANS COOLER,ELEC | 1 | Price TBD | Out of stock | |
| 3 | 2522737 | ASM-COOLING HOSE RAD TO BOTTLE | 1 | Price TBD | Out of stock | |
| 4 | 1244832 | ASM-VENT,HEAD RACE | 1 | Price TBD | Out of stock | |
| 5 | 5419462 | HOSE-COOLANT BOTTLE RACE | 1 | Price TBD | Out of stock | |
| 6 | ------- | FUEL LINE 1/4"SAE #30R7 | 1 | Price TBD | Out of stock | |
| 7 | 1244902 | ASM-TRANS COOLER PUMP TO CORE | 1 | Price TBD | Out of stock | |
| 8 | 1244903 | ASM-COOLER TRANS TO PUMP | 1 | Price TBD | Out of stock | |
| 9 | 7055640 | FITTING 1/8 NPT TO AN-04 | 1 | Price TBD | Out of stock | |
| 10 | 7055637 | FITTING 90 DEG BARB TO AN-04 | 2 | Price TBD | Out of stock | |
| 11 | 7081503 | Clamp, Oetiker, 14.5, Blue | 2 | $3.99 | In stock | |
| 12 | 7055635 | FITTING ADPT 1/4 NPT TO AN-04 | 1 | Price TBD | Out of stock | |
| 13 | 7055636 | FITTING ADPT 1/4 NPT TO AN-03 | 1 | Price TBD | Out of stock | |
| 14 | 7083082 | CLAMP CLAMSHELL SMALL | 1 | Price TBD | Out of stock | |
| 15 | 5418915 | ORING-#015 | 2 | Price TBD | Out of stock | |
| 16 | 7055638 | FITTING 1/2 TO AN-12 | 1 | Price TBD | Out of stock | |
| 17 | 7055639 | FITTING BARB TO AN-12 | 1 | Price TBD | Out of stock | |
| 18 | 7080696 | CLAMP,HOSE,1.25,WORM DRIVE | 2 | $6.99 | In stock | |
| 19 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 4 | Price TBD | Out of stock | |
| 20 | 7055641 | FITTING 3/8 BSPP TO AN-06 | 2 | Price TBD | Out of stock | |
| 21 | 7055642 | FITTING M18 TO AN-06 | 1 | Price TBD | Out of stock | |
| 22 | 7528289 | SCR-HH-M5X0.8X30 8.8 SPC | 4 | Price TBD | Out of stock |
